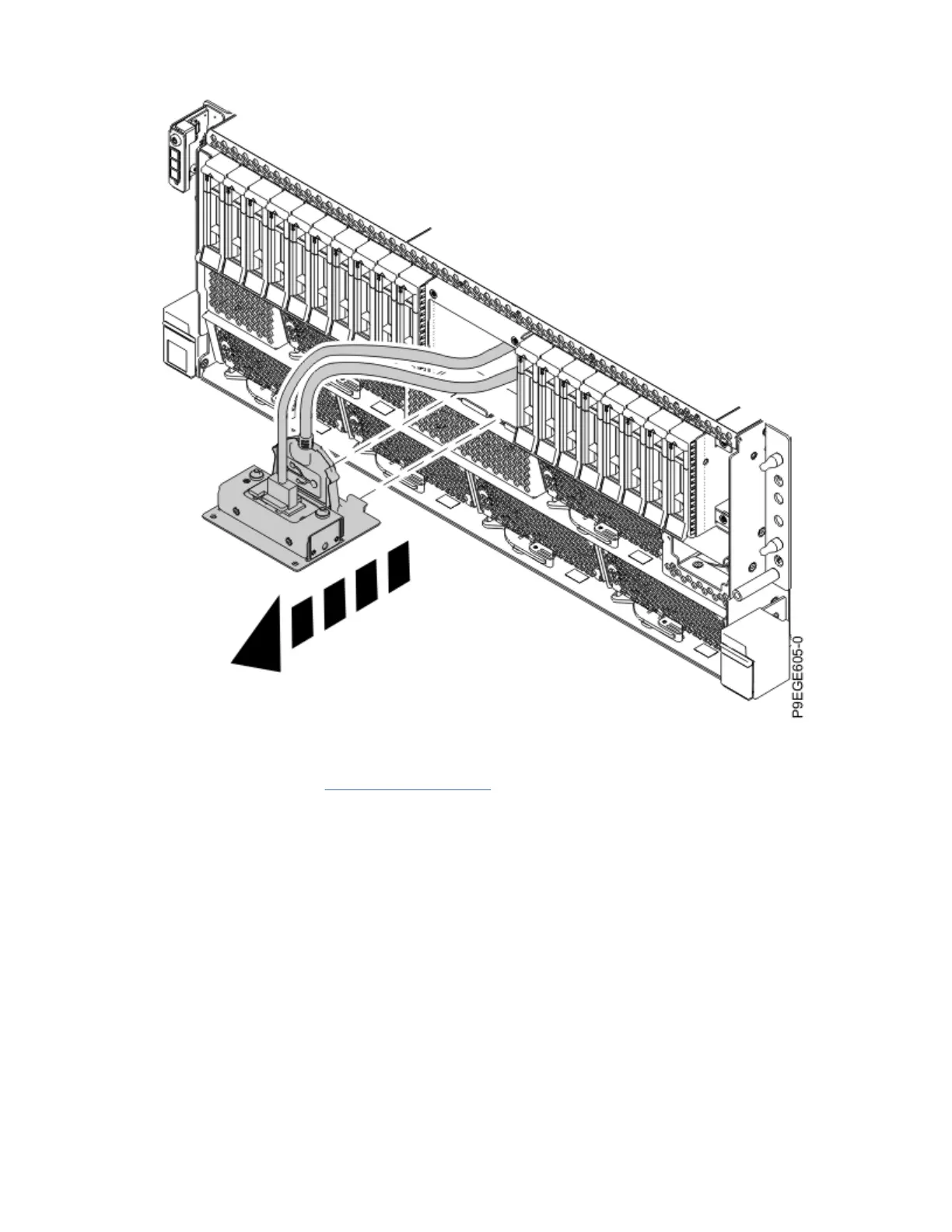

Figure 114. Removing the control panel display housing and cable for a rack-mounted system
10. For the rack-mounted system, remove the control panel display cable from the housing using the two
screws (A) as shown in Figure 115 on page 120.
Control panel cables for the 9009-41A, 9009-42A, or 9223-42H
119
