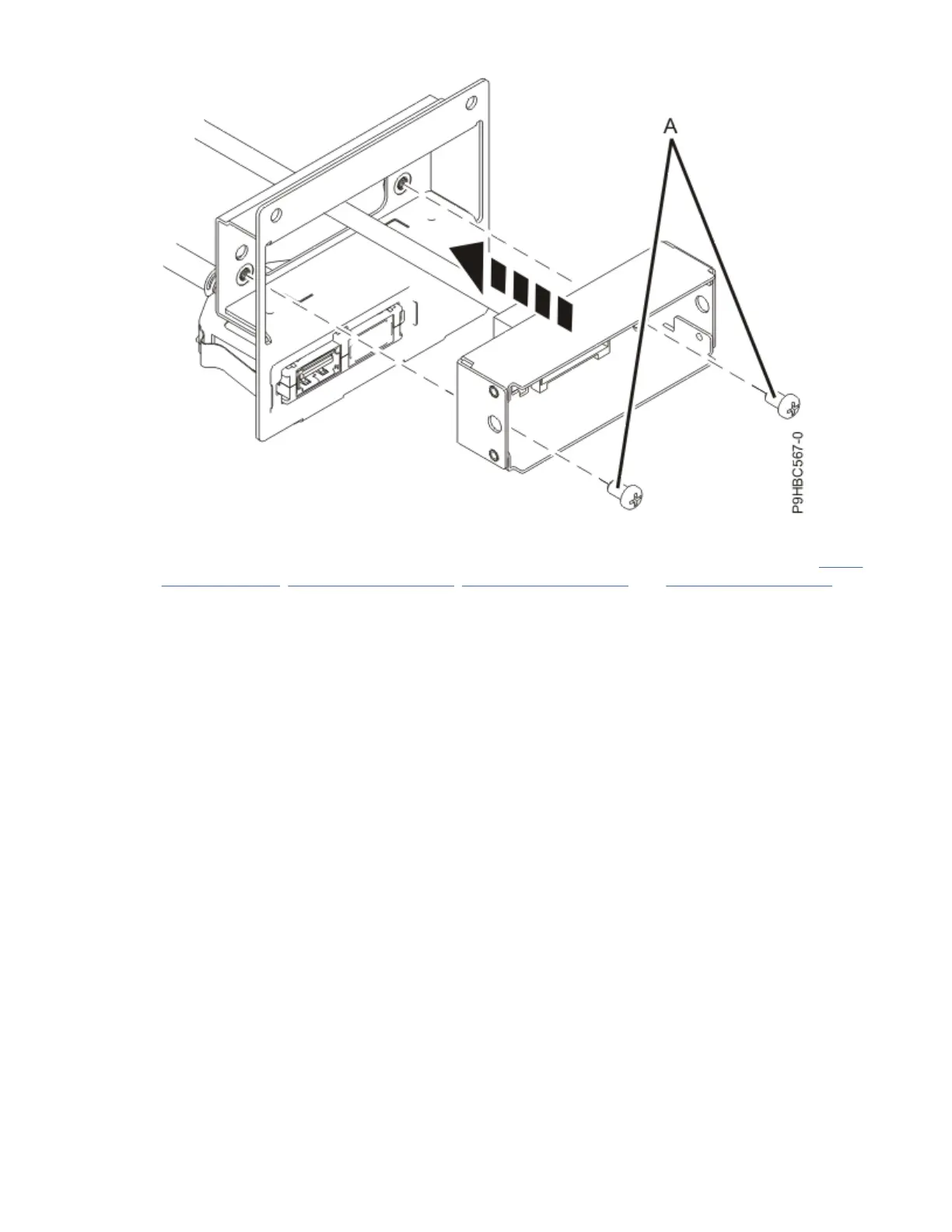

Figure 116. Installing the control panel display cable into the housing for a rack-mounted system
3. For a rack-mounted system, insert the control panel display cable into the system as shown in Figure
117 on page 122, Figure 118 on page 123, Figure 119 on page 124, and Figure 120 on page 125.
Pass the cable through the channel along the side of the chassis, being careful not to catch the cable
on any components as you insert it.
Control panel cables for the 9009-41A, 9009-42A, or 9223-42H
121
