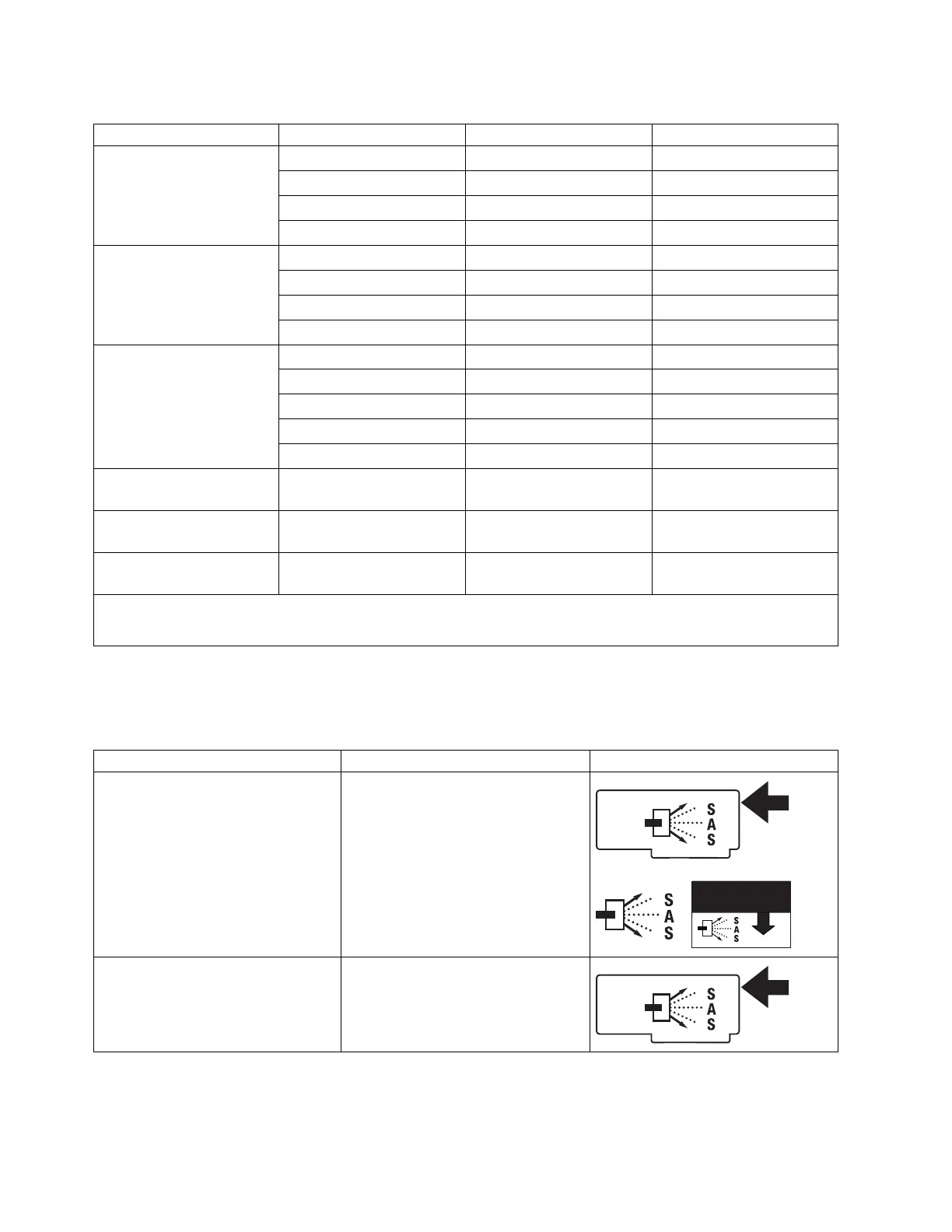

Table 142. Supported SAS cables for PCIe3 SAS adapters (continued)
Name Length IBM part number Feature code
HD SAS AA narrow
connector cable
0.6 m (1.9 ft) 00E6287 ECC0
1.5 m (4.9 ft) 00E6288 ECC2
3 m (9.8 ft) 00E6289 ECC3
6 m (19.6 ft) 00E6290 ECC4
HD SAS X narrow
connector cable
3 m (9.8 ft) 00E6297 ECBJ
6 m (19.6 ft) 00E6298 ECBK
10 m (32.8 ft) 00E6299 ECBL
15 m (49.2 ft) 00E6300 ECBM
HD SAS YO narrow
connector cable
1.5 m (4.9 ft) 00E6292 ECBT
3 m (9.8 ft) 00E6293 ECBU
6 m (19.6 ft) 00E6294 ECBV
10 m (32.8 ft) 00E6295 ECBW
15 m (49.2 ft) 00E6296 ECBX
HD SAS AE1 narrow
connector cable
4 m (13.1 ft) 46C2900 ECBY/5507
HD SAS YE1 narrow
connector cable
3 m (9.8 ft) 46C2902 ECBZ/5509
HD SAS AS narrow
connector cable
3 m (9.8 ft) 00FW799 ECC5
1. Can be used to attach just a bunch of disks (JBOD) storage enclosures to adapters.
2. Active optical cables (AOC).
The following table contains cable label information. The graphic labels are designed to match the correct
component port to which the cable end is to be attached.
Table 143. SAS cable labeling
Name Connects Label
SAS 4x AE cable SAS adapter to a media expansion
drawer or two SAS adapters to a disk
expansion drawer in a unique JBOD
configuration
SAS 4x AI cable SAS adapter to internal SAS disk
slots to the system external SAS port
on your system
126 Site and hardware planning
