IBM Power Systems 8202-E4B Site And Hardware Planning

Table 40. 570 in rack
IBM rack Rack, specify code PDU support Power cords
0551
1
0553
1
7014
3
0555
0231, 0232, 0241, 0242 0 to 4
2
PDU
4
1
0551 is an empty 1.8 meter rack with 36 EIA units of total space. 0553 is a 2.0 meter rack with 42 EIA units of total
space.
2
0551, 0553, and 0555 feature codes 5160, 5161, 5163, and 7188. 7014 feature codes 7176, 7177, 7178, and 7188.
3
7014-T00 is a 1.8 meter rack with 36 EIA units of total space. 7014-T42 is a 2.0 meter rack with 42 EIA units of total
space. The rack includes one PDU, feature code 9188, 9176, 9177, or 9178.
4
If unit plugs into a PDU, two feature code 6458, 6459, 6095, or 9911 power jumper cords are required.
Feature code 0123 - 5074 lower expansion unit in rack; feature code 0574 - 5074
equivalent
Table 41. Feature code 0123
IBM rack
Bottom rack, specify
code Rack, specify code PDU support Power cords
0551
1
0553
1
0555
0123 0574 0 to 4
2
0123, 0574, PDU
3
1
0551 is an empty 1.8 meter rack with 36 EIA units of total space. 0553 is a 2.0 meter rack with 42 EIA units of total
space.
2
0551, 0553, and 0555 feature codes 5160, 5161, 5163, and 7188. 7014 feature codes 7176, 7177, 7178, and 7188.
3
Feature code 0123 or 0574 do not plug into a PDU.

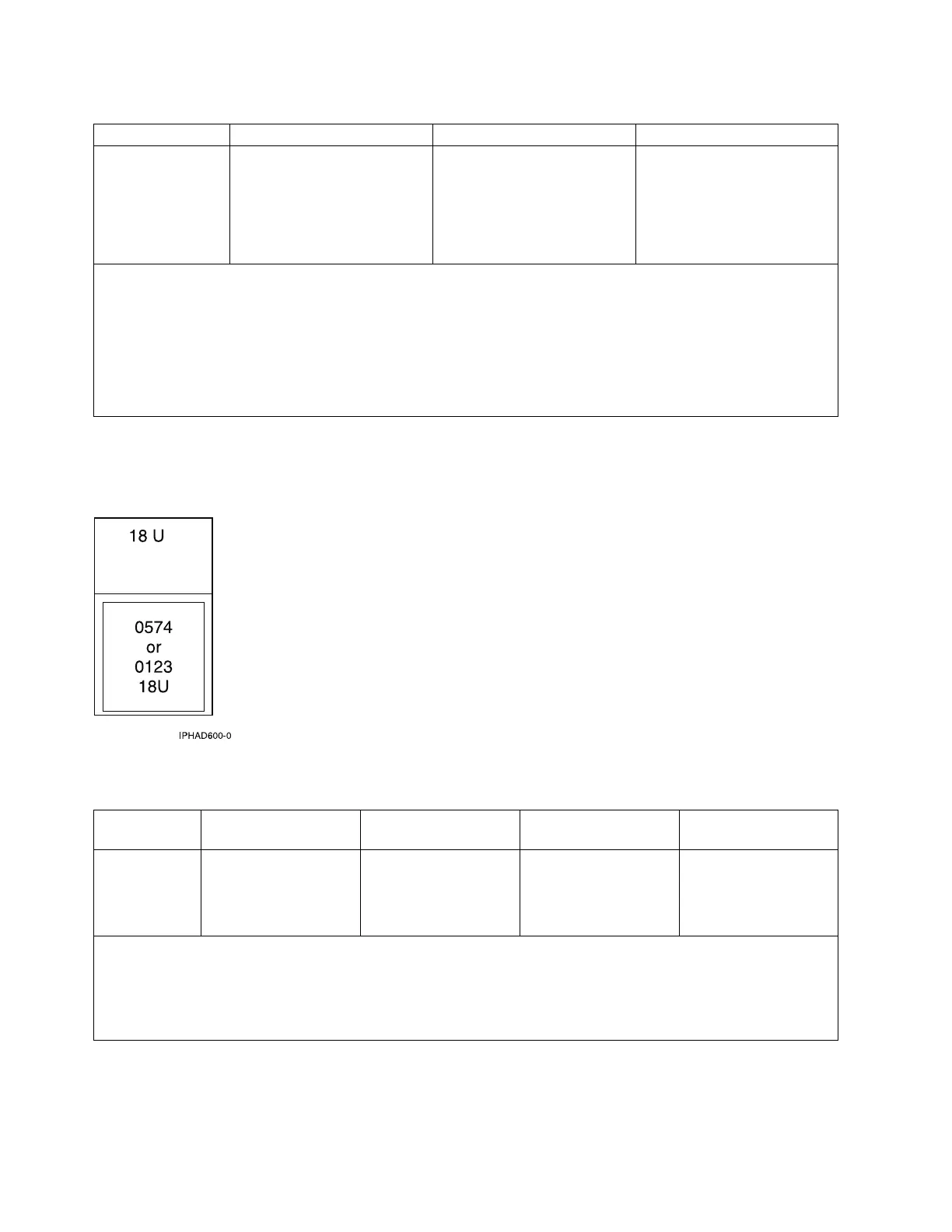

Figure 8. Feature code 0123
