Routing the cables of the wireless LAN antenna:
1. Place the wireless LAN antennas a and b, and the
Bluetooth wireless antenna c under the LCD panel.
a
b
c

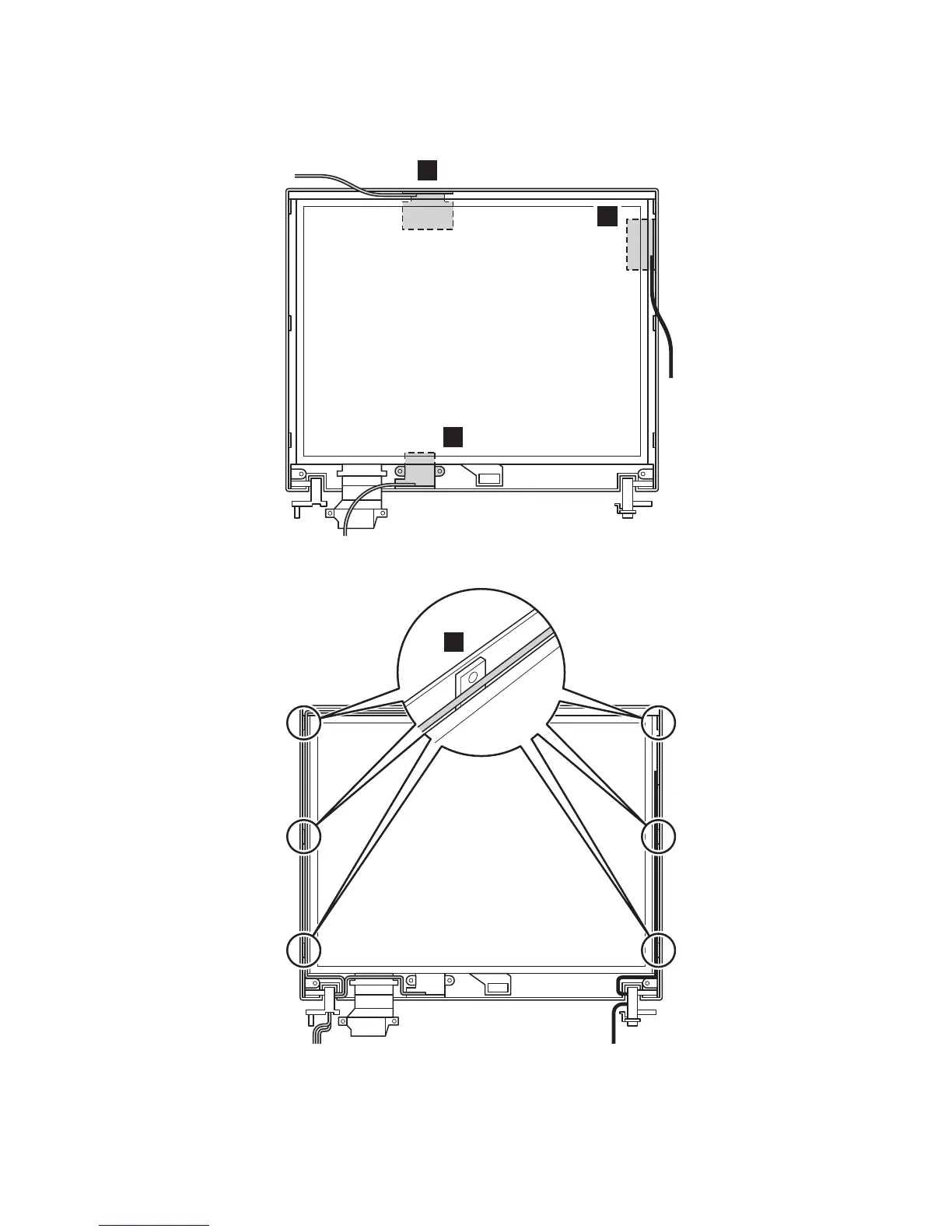

2. Route the antenna cables as in the following drawings:
d
(continued)
