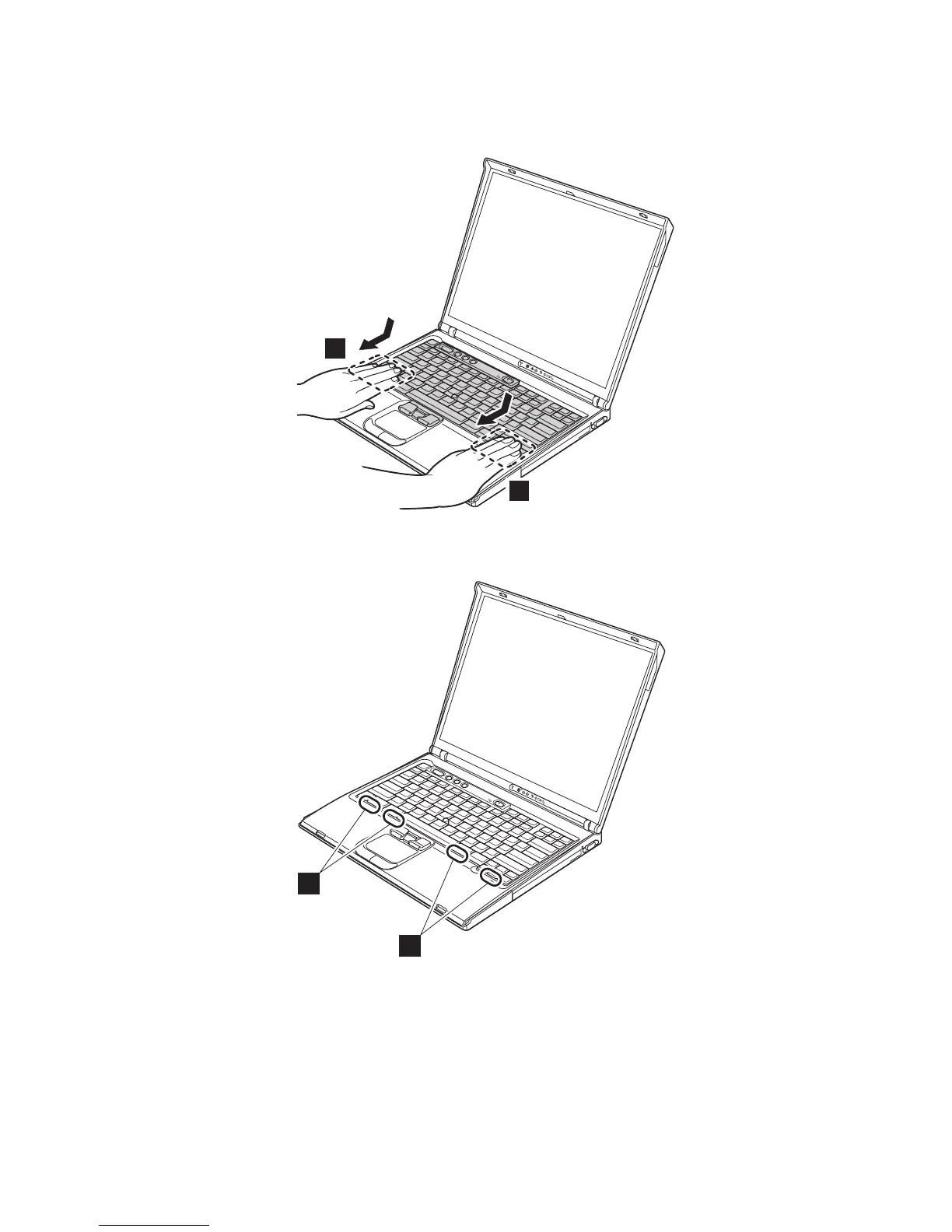

3. To make sure that the front edge of the keyboard is
housed firmly, gently press the keys with your fingers
and try to slide the keyboard towards you.
3
3
4. Make sure that all the projections on the front side of
the keyboard b are firmly attached under the frame.
b
b
5. Secure the keyboard from the underside of the
computer, using the new screws provided with the
keyboard.
Removing and replacing a FRU
76 R50/R50p, R51 Series
