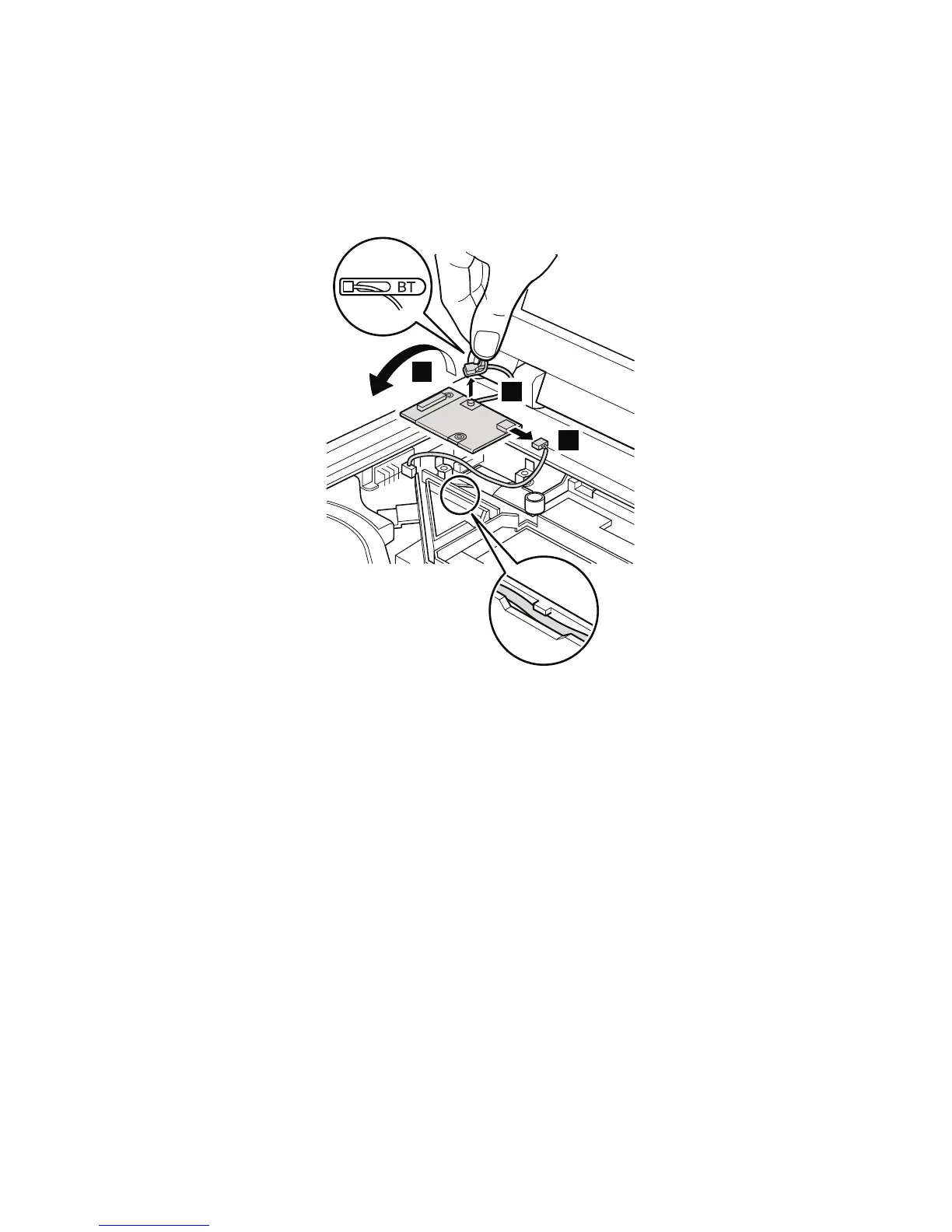

Turn the card over 3, and detach the modem connector
4. If the Bluetooth wireless antenna jack has a tab
marked ″BT″, unplug the jack by pulling the tab with your
fingers. If the antenna jack does not have the tab, unplug
the jack by using the removal tool antenna RF connector
(P/N: 08K7159) or pick the connetor with your fingers and
gently unplug it in direction of the arrow 5.
4
5
3
When installing: Make sure that connector 4, the jack
5, and the connector on the underside
of the card are firmly attached. Then
place the cable to fit in the cable guide
as in the figure.
Removing and replacing a FRU
ThinkPad R50/R50p and R51 Series 81
