6. Use the M5 screws to install the outer rail member and bracket assembly to the
rack, as shown in Figure 36.
For example, Figure 37 on page 52 shows the front of the rail that is attached to
the frame.
click
1
2
M4x6L
locking
svc01081

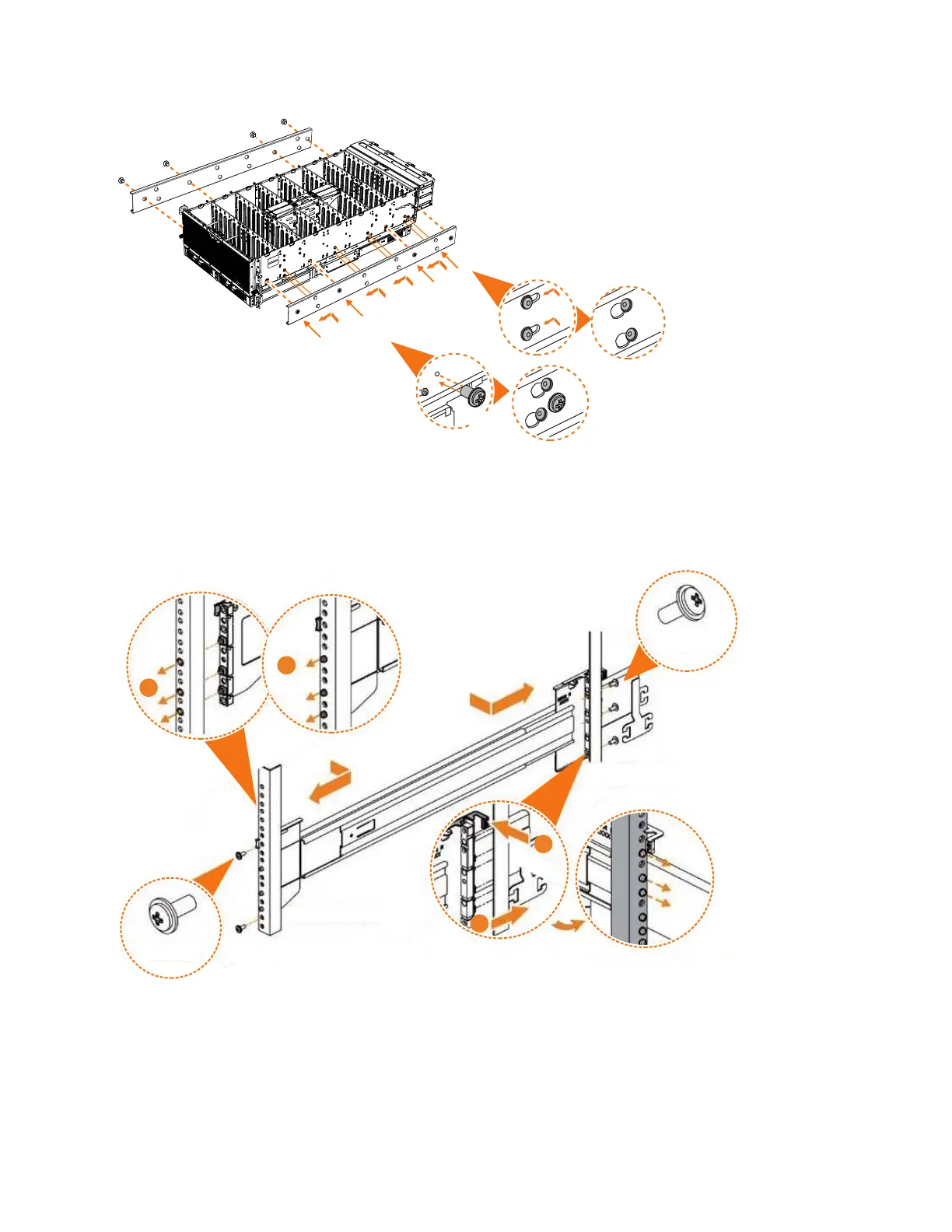

Figure 35. Attaching the inner rail section to the enclosure
1
2
Click!
M5x13L
Rear Bracket
3
1
Click!
1
2
PUSH
Front Bracket
2
M5x13L
svc00966
Figure 36. Installing the rail assembly to the rack frame
Chapter 2. Installing the system hardware 51
