IBM Storwize V7000 Installation Guide

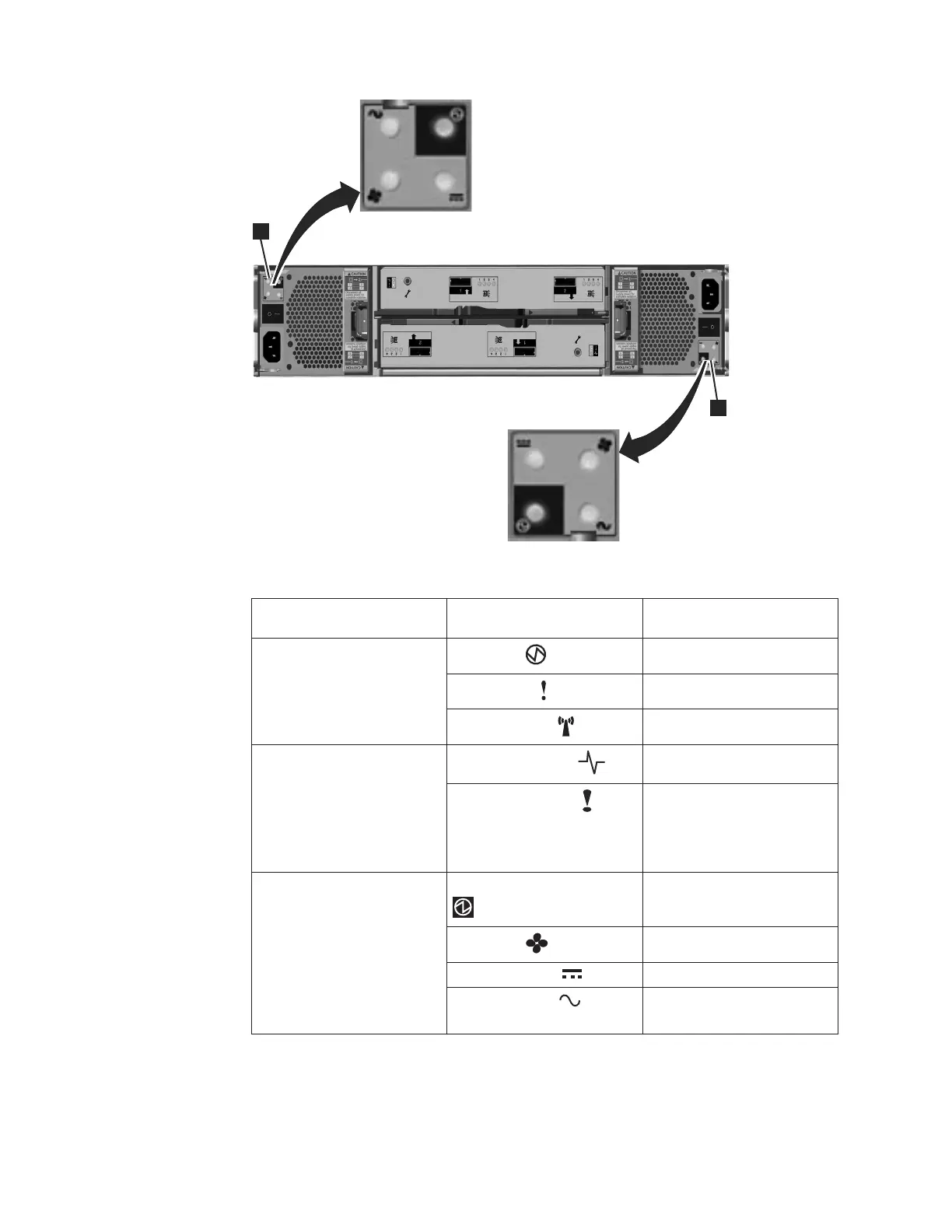

Table 5. LED status when expansion enclosures are powered on
Hardware component LED name and symbol
If power on and no fault is
detected
Left enclosure end cap, front
of enclosure
Power, top
LED is on.
Fault, middle
LED is off.
Identify, bottom
LED is off.
Expansion canister, rear. The
reference to the top and
bottom locations applies to
canister 1, which is the upper
canister. The LED locations
are inverted for canister 2,
which is the lower canister.
Canister status, top
LED is on.
Fault status, bottom
LED is off.
Power supply unit,
expansion enclosure. The
reference to the left and right
locations applies to power
supply unit 1, which is the
left power supply. The LED
locations are inverted for
power supply unit 2, which
is the right power supply.
Power supply, upper right
LED is on.
Fan failure
LED is off.
dc power failure
LED is off.
ac power failure
LED is off.
1
svc00671
1
Figure 10. LEDs on the power supply units of the expansion enclosure
16 IBM Storwize V7000: Expansion Enclosure Installation Guide

IBM Storwize V7000 Specifications

General

Model	Storwize V7000
Storage Type	Hybrid Flash Array
RAID Levels	0, 1, 5, 6, 10
Form Factor	2U
Drive Types	SSD, SAS
Host Interface	8 Gbps Fibre Channel, 16 Gbps Fibre Channel, 1 Gbps iSCSI, 10 Gbps iSCSI, 12 Gbps SAS
Maximum Cache	32GB
Operating System Support	IBM AIX, Linux, Windows, VMware
Data Reduction Features	Real-time Compression
Management Software	IBM Spectrum Virtualize
