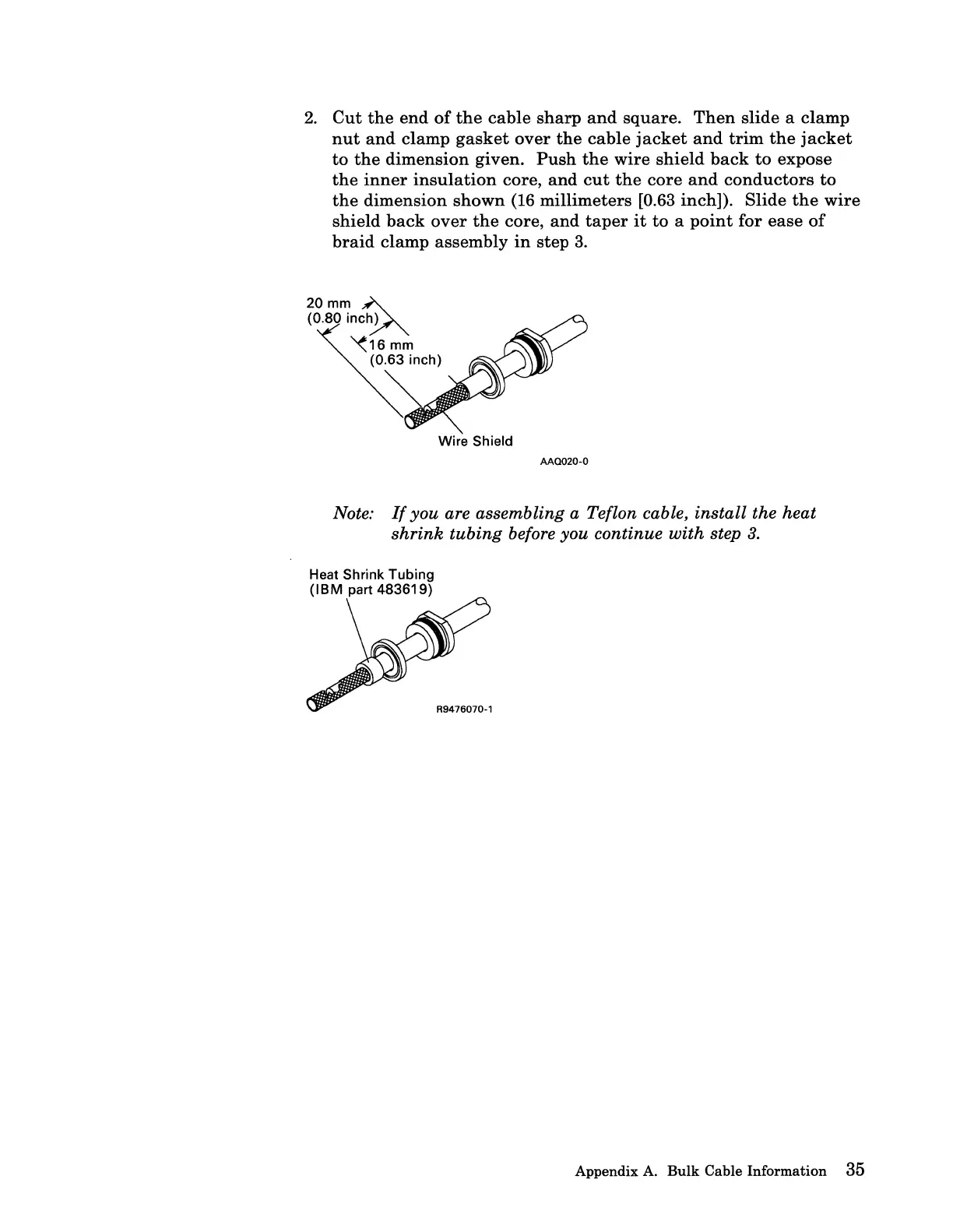

2. Cut the end of the cable sharp and square. Then slide a clamp
nut and clamp gasket over the cable jacket and trim the jacket
to the dimension given. Push the wire shield back to expose
the inner insulation core, and cut the core and conductors to
the dimension shown (16 millimeters [0.63 inch]). Slide the wire
shield back over the core, and taper it to a point for ease of
braid clamp assembly in step 3.
20mm ~
(~~~
~;nch)
Wire Shield
AAQ020-0
Note: If you are assembling a Teflon cable, install the heat
shrink tubing before you continue with step 3.
Heat Shrink Tubing
(IBM part 483619)
R9476070-1
Appendix A. Bulk Cable Information 35
