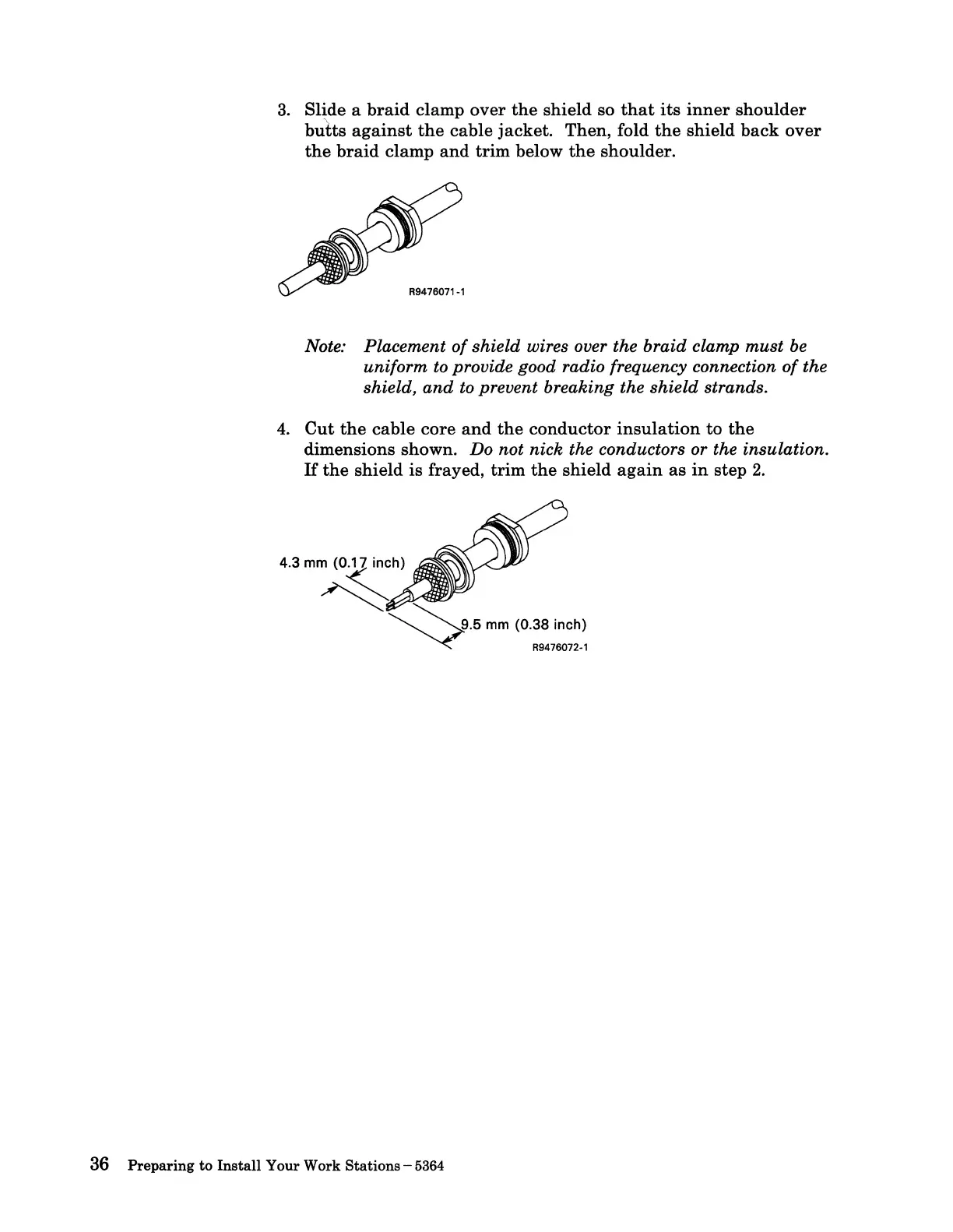

3.
Slide a
braid
clamp
over
the
shield
so
that
its
inner
shoulder
butts
against
the
cable
jacket.
Then, fold
the
shield
back
over
the
braid
clamp
and
trim
below
the
shoulder.
Note: Placement
of
shield wires over the braid clamp must
be
uniform
to
provide good radio frequency connection
of
the
shield, and
to
prevent breaking the shield strands.
4.
Cut
the
cable
core
and
the
conductor
insulation
to
the
dimensions shown.
Do
not nick the conductors or the insulation.
If
the
shield
is
frayed,
trim
the
shield
again
as
in
step
2.
36
Preparing
to
Install
Your Work Stations -
5364
