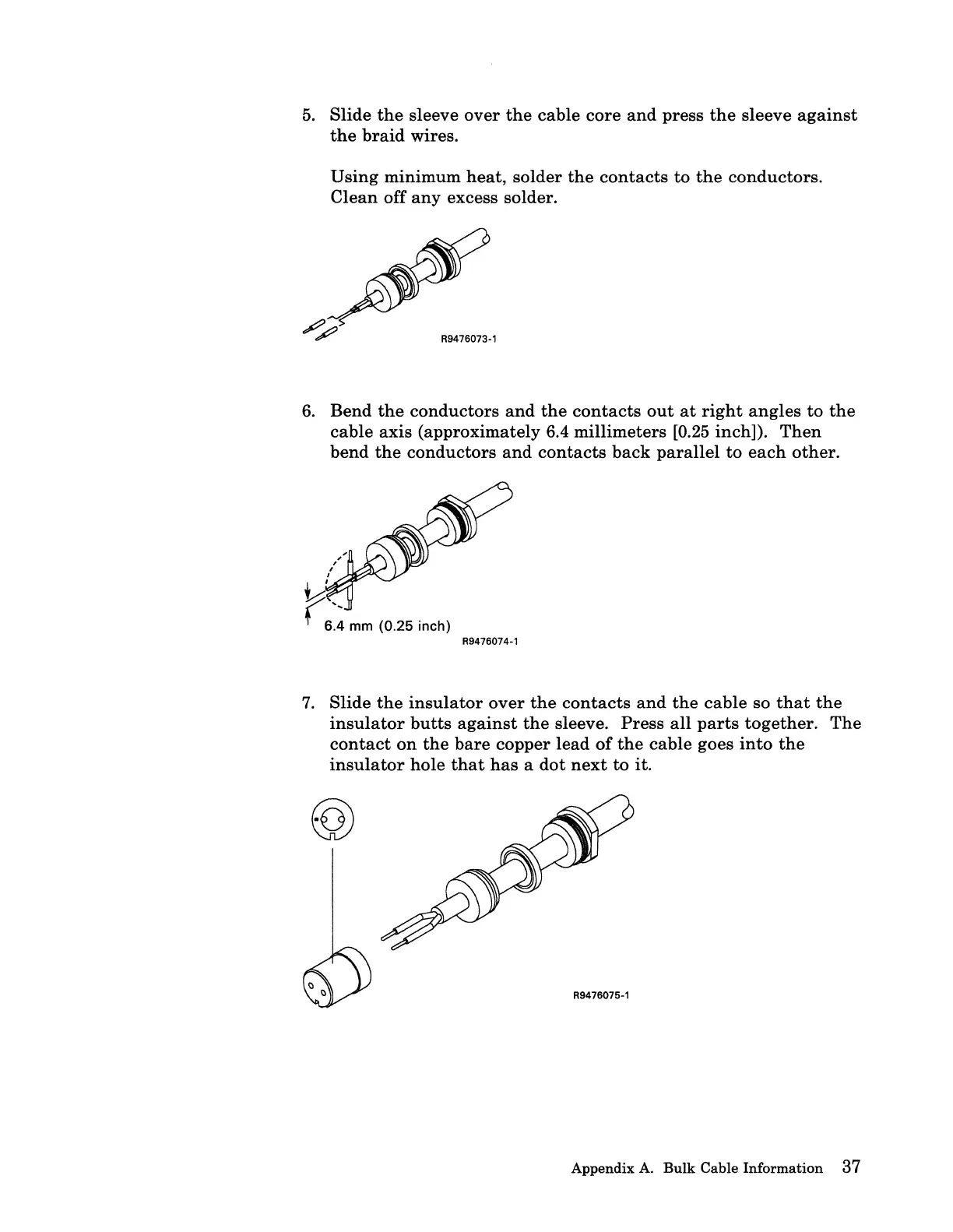

5. Slide the sleeve over the cable core and press the sleeve against
the braid wires.
Using minimum heat, solder the contacts to the conductors.
Clean off any excess solder.
6. Bend the conductors and the contacts out at right angles to the
cable axis (approximately 6.4 millimeters [0.25 inch]). Then
bend the conductors and contacts back parallel to each other.
R9476074-1
7. Slide the insulator over the contacts and the cable so that the
insulator butts against the sleeve. Press all parts together. The
contact on the bare copper lead of the cable goes into the
insulator hole that has a dot next to it.
R9476075-1
Appendix A. Bulk Cable Information 37
