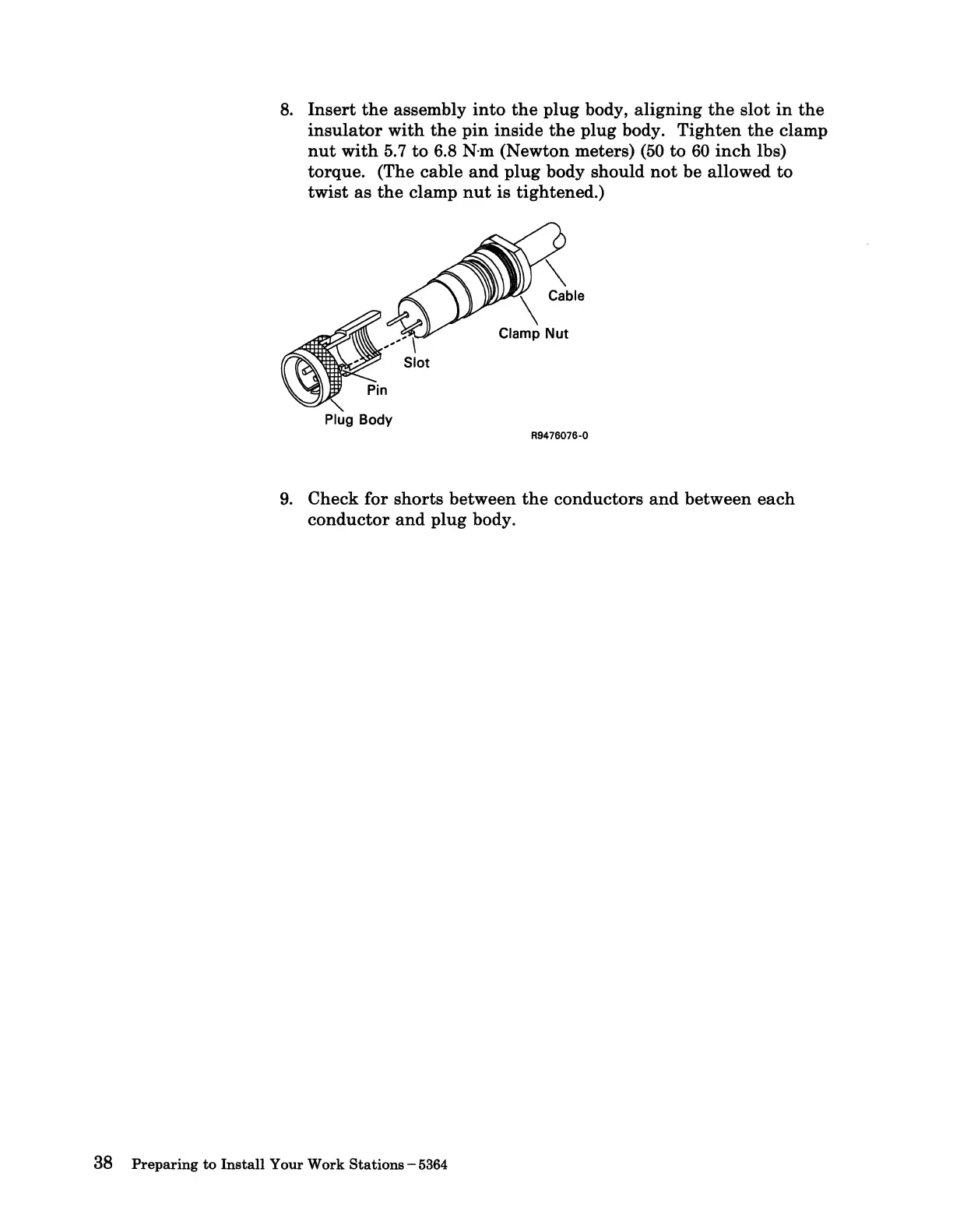

8.
Insert
the
assembly
into
the
plug
body,
aligning
the
slot
in
the
insulator
with
the
pin
inside
the
plug
body.
Tighten
the
clamp
nut
with
5.7
to
6.8 N·m (Newton meters)
(50
to
60
inch
lbs)
torque. (The cable
and
plug
body should
not
be
allowed
to
twist
as
the
clamp
nut
is tightened.)
Plug Body
\ Cable
Clamp
Nut
R9476076-0
9.
Check for
shorts
between
the
conductors
and
between
each
conductor
and
plug body.
38
Preparing
to
Install
Your
Work
Stations-5364
