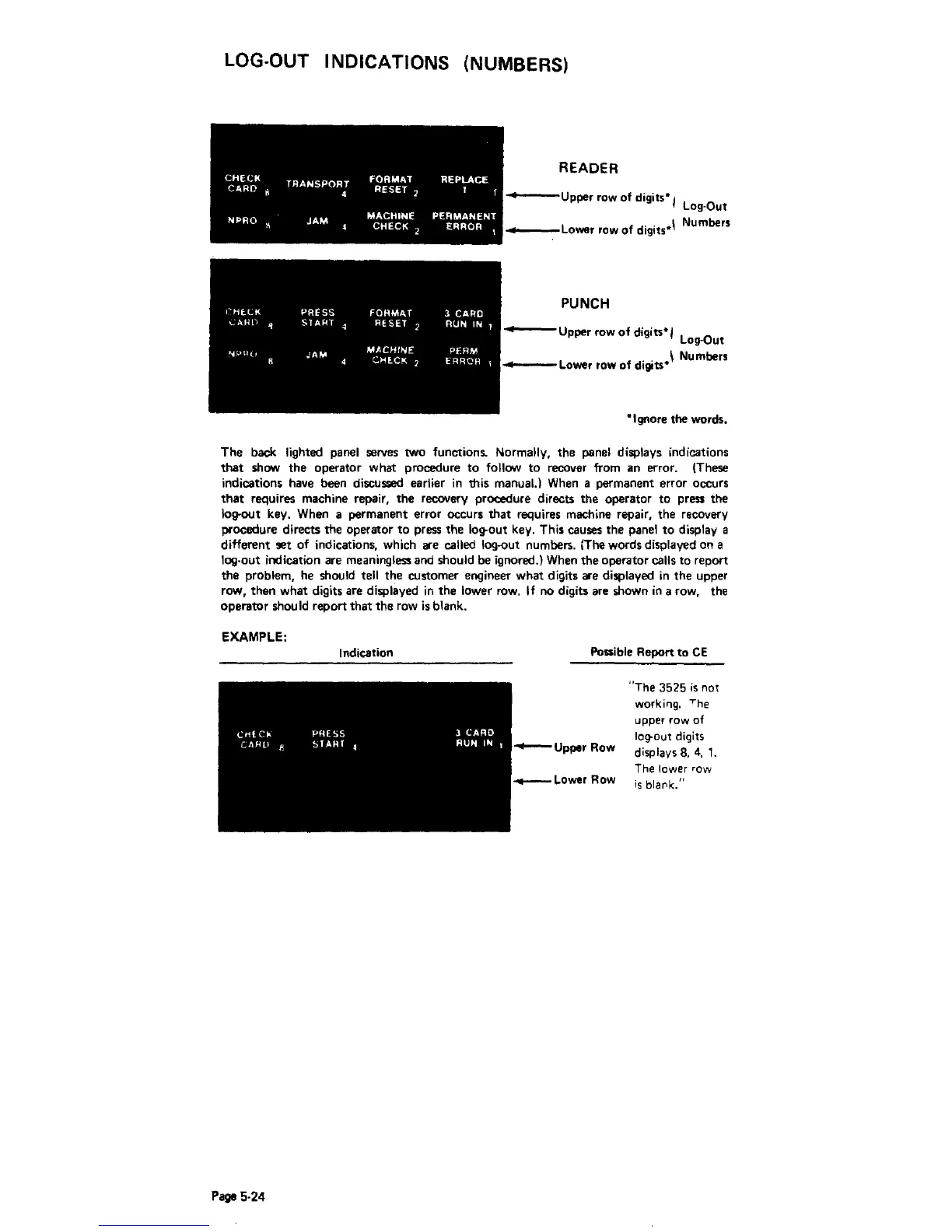

LOG-OUT INDICATIONS (NUMBERS)
CHECK
TRANSPORT
fORMAT
REPLACE
CARD
Ii 4 RESET
'1
1 J
NPRO
H
JAM
4
M~~~:E2
PE~::~~N~
READER
-Upper
row
of digits', Log.Out
_Lower
row
of digits.1 Numbers
PUNCH
- Upper row
of
digits', Log-Qut
\
Numbers
_Lower
row of digits'
• Ignore the words.
The back lighted
panel serves
twO
functions. Normally, the panel displays indications
that
show the operator what procedure
to
follow
to
recover from an error. (These
indications have been discussed earlier
in
this manual.l
When
a permanent error occurs
that
requires machine repair, the recovery procedure directs the operator
to
prBD
the
log-out key. When a permanent error occurs
that
requires machine repair, the recovery
procedure directs the operator
to
press the log-out key. This causes the panel
to
display a
different
set of indications, which are called log-out numbers. (The words displayed on a
log·out indication are meaningless and should
be
ignored.l When the oparator calls to report
the
problem,
he
should tell the customer engineer what digits
are
displayed
in
the upper
row, then what digits are
displayed
in
the lower
row.
If
no
digits are shown
in
a row. the
operator
should report that the row
is
blank.
EXAMPLE:
Indication
CHECk
PRESS
,)
CARD
CARli
l! STAAT 4 RUN
IN
1
Page
5·24
Possible Report
to
CE
-Upper
Row
_Lower
Row
"The
3525
is
not
working. The
upper row of
log-out digits
displays
8.
4.
1.
The lower
row
is
blaok."
