Locations — model 515, 52x, and 285
Back view of a model 7037-A50 server
View the ports and connections on the 7037-A50 server.
This diagram shows you the back view of a 7037-A50 server. Connections and ports are labeled to
facilitate the setup process.

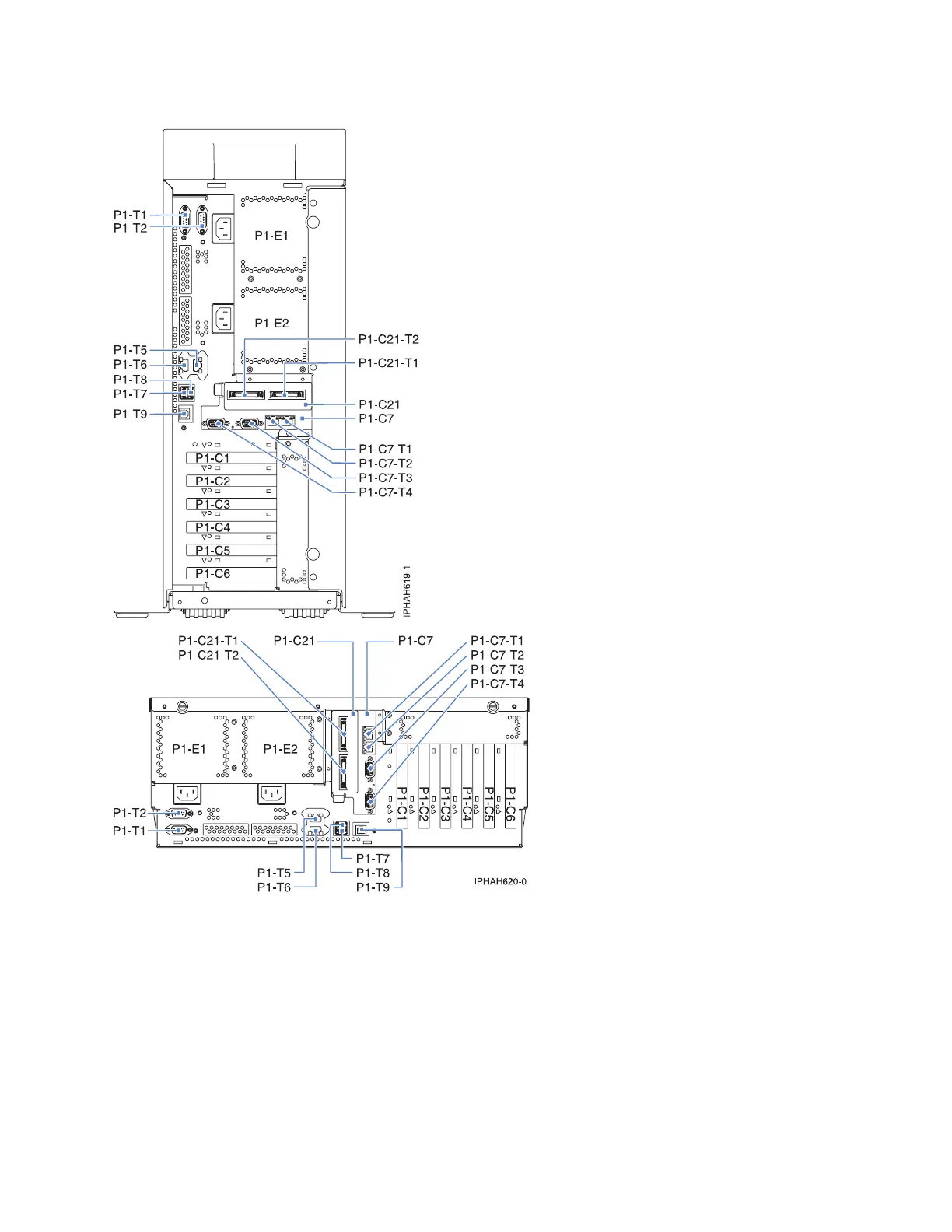

Figure 9. Back views of a model 9405-520, 9406-520, 9406-525, or 9407-515 without the integrated HSL ports (T3/T4)
Cabling your server 253
