FRU REMOVALS AND REPLACEMENTS
1070 Keyboard
Battery pack (1030)
Hard disk drive (1040)
UltraslimBay device (1050)
Keyboard assembly (1060)

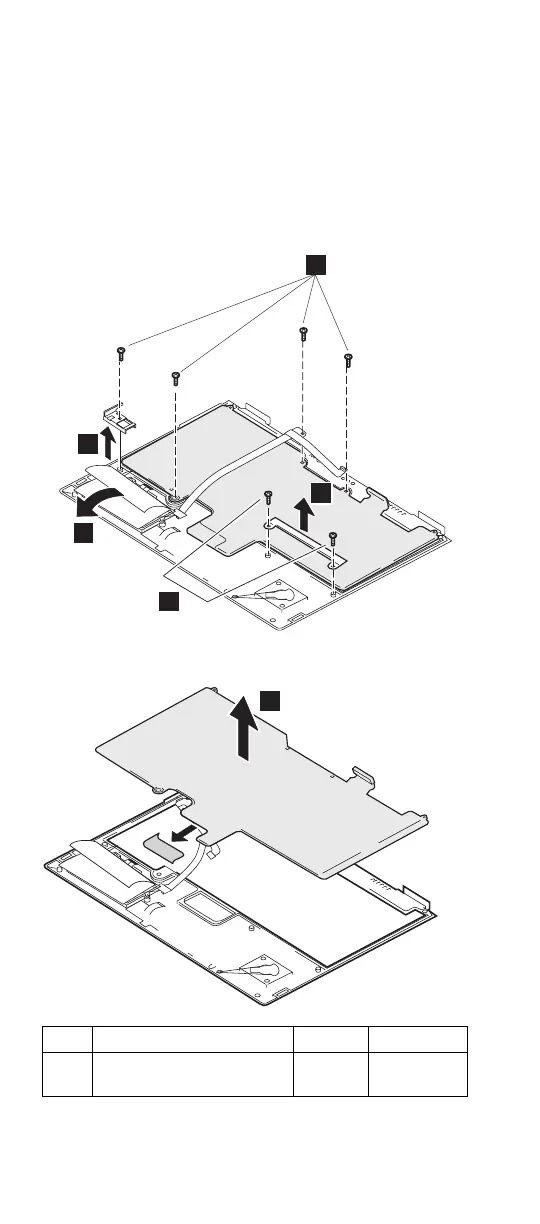

Note: When you remove the insulator in step .1/, do it
gently for it is reused.
2
1
4
3
2
Bottom view
4
Step Screw (Quantity) Color Torque
.2/ M2.5 × 3 mm,
nylon-coated (6)
Yellow 4 kgcm
46 ThinkPad 600X Hardware Maintenence Manual
