IBM ThinkPad T43 Hardware Maintenance Manual

1210 CPU
For access, remove these FRUs in order:
v “1010 Battery pack (14.1-in. LCD models)” on page 72
v “1040 Hard disk drive” on page 76
v “1060 Keyboard” on page 80
v “1100 Palm rest or Palm rest with fingerprint reader
(14.1-in. LCD models)” on page 90
v “1110 Keyboard bezel or Keyboard bezel with fingerprint
reader (15.0-in. LCD models)” on page 93
v “1160 Keyboard bezel (14.1-in. LCD models)” on page
109
v “1190 LCD assembly (14.1-in. LCD models)” on page
115
v “1130 Fan assembly” on page 101

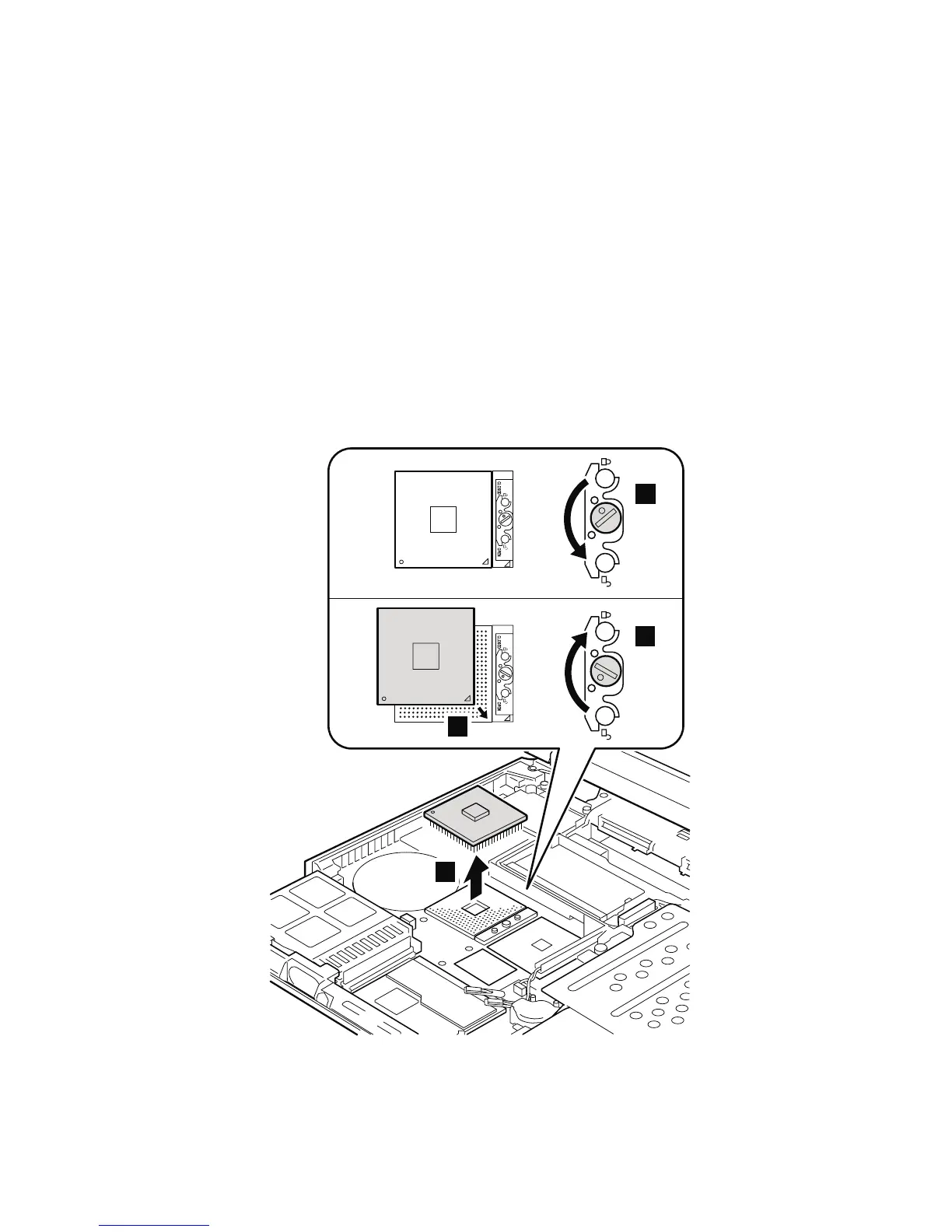

Rotate the head of the screw in the direction shown by
arrow 1 to release the lock; then remove the CPU 2.
2
1
b
a
When installing: Place the CPU on the CPU socket a,
and then rotate the head of the screw in
the direction shown by arrow b to
secure the CPU.
Removing and replacing a FRU
ThinkPad T43/T43p Series 125

IBM ThinkPad T43 Specifications

General

RAM	512MB (upgradable to 2GB)
Resolution	1024x768 (XGA) or 1400x1050 (SXGA+)
Operating System	Windows XP Professional
Wireless	Intel PRO/Wireless 2200BG or 2915ABG
Modem	56K V.92
Processor	Intel Pentium M
Storage	40GB HDD
Display	14.1 inch
Graphics	ATI Mobility Radeon X300 or Intel GMA 900
Optical Drive	DVD-ROM, CD-RW/DVD-ROM Combo, or DVD±RW
Battery	6-cell or 9-cell Lithium-Ion
Chipset	Intel 915PM
Ethernet	Gigabit Ethernet
Ports	1 x VGA, 1 x Headphone, 1 x Microphone
Networking	Bluetooth (optional)
