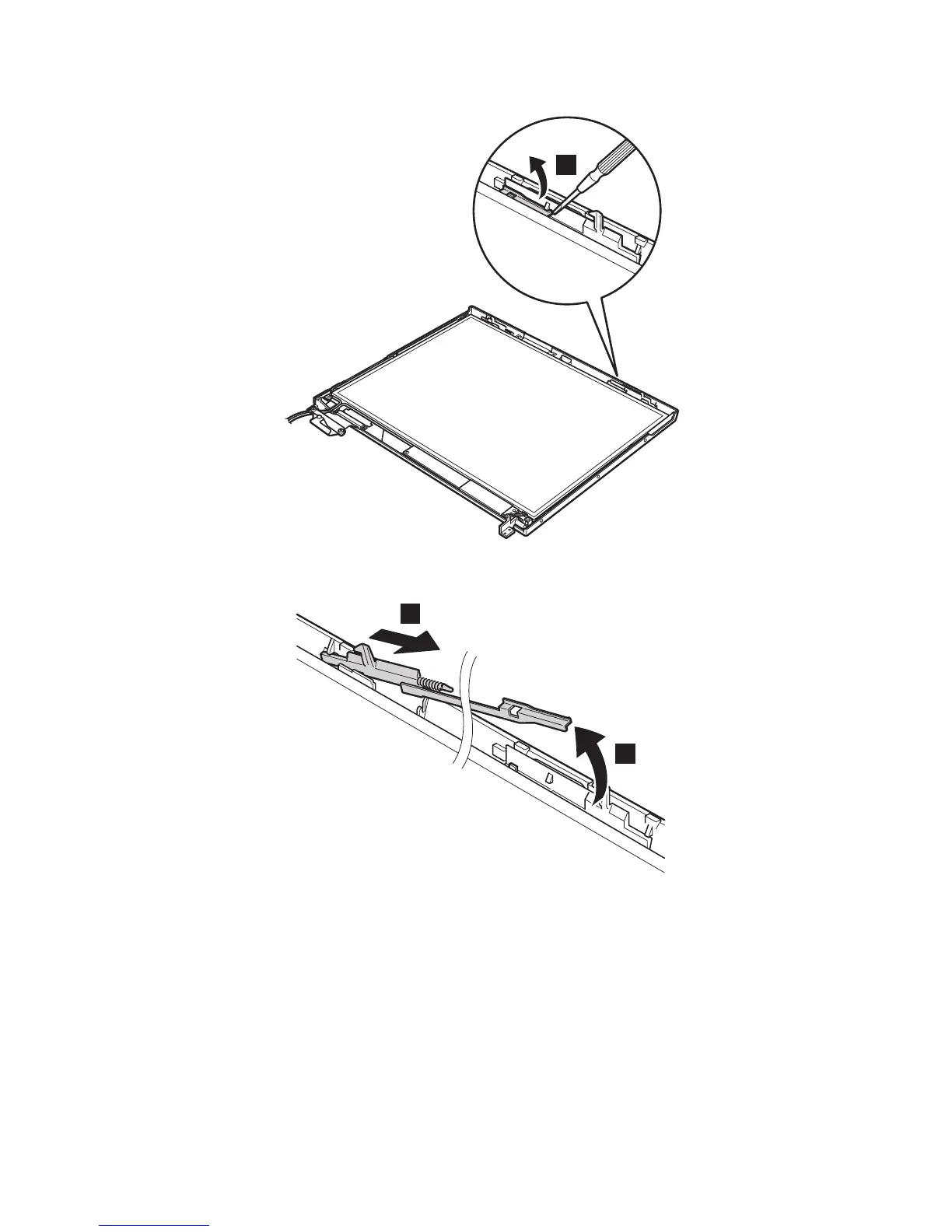

In
step
6
,
remove
the
latch
bar
as
in
this
figure.
6
Lift
the
latch
bar
in
the
direction
of
the
arrow
7
,
and
then
remove
the
left
latch
in
the
direction
of
the
arrow
8
.
7
8
(continued)
Removing
and
replacing
a
FRU
ThinkPad
T43/T43p
Series
157
