IBM ThinkPad T43 Hardware Maintenance Manual
4
of 1
of 1 rating
232 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

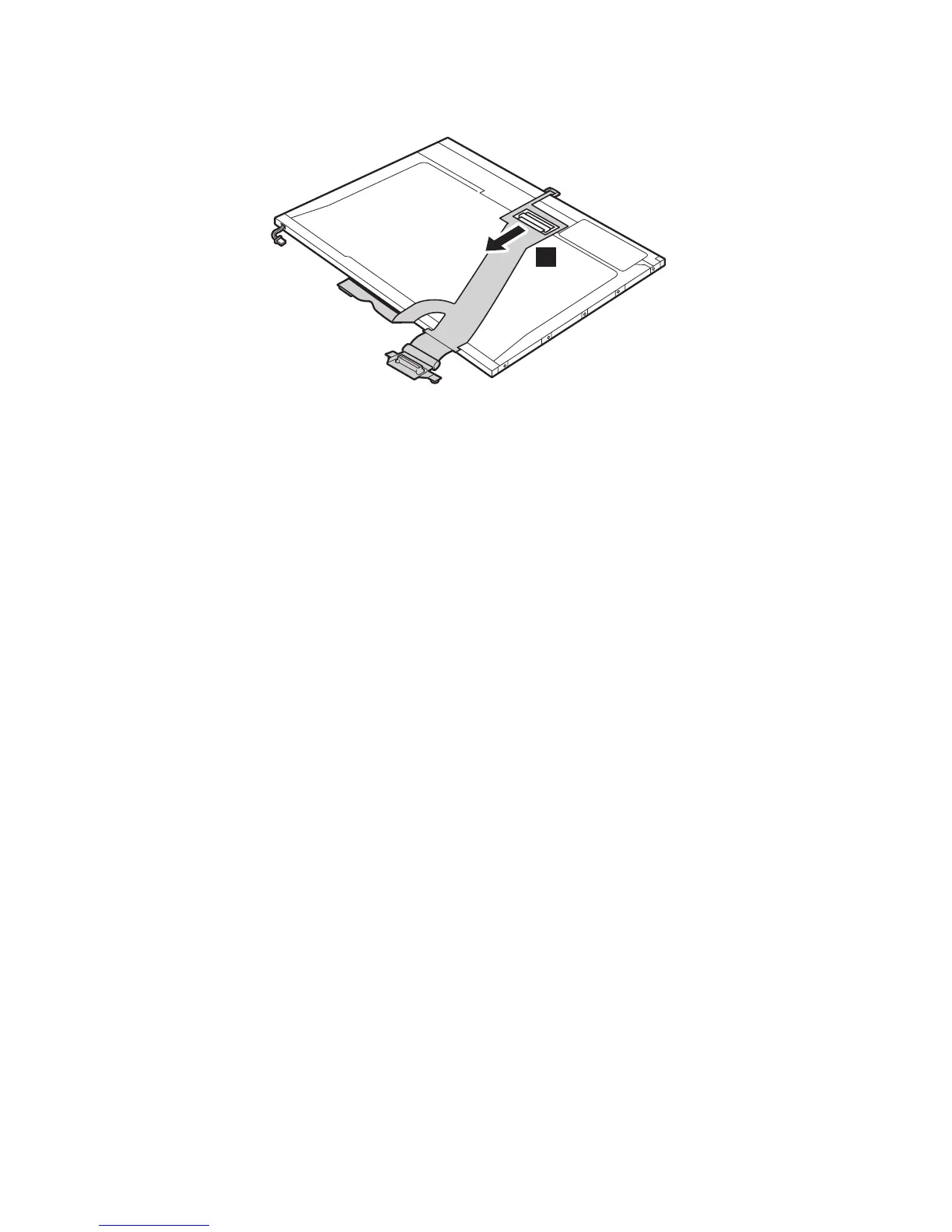

T
urn
over
the
LCD
panel,
and
detach
the
connector
î8î
in
the
direction
of
the
arrow
.
8
When
installing:
Make
sure
that
the
FPC
connector
is
firmly
attached
to
the
LCD
panel.
(continued)
Removing
and
replacing
a
FRU
172
MT
2668/2669/2686/2687
177
179
Table of Contents
Default Chapter
3
Table of Contents
3
About this Manual
7
Introduction
9
Important Service Information
9
Strategy for Replacing Frus
9
Strategy for Replacing a Hard Disk Drive
10
How to Use Error Messages
10
Product Definition
10
Strategy for Replacing Frus for CTO, CMV, and GAV
10
FRU Identification for CTO, CMV, and GAV Products
11
Important Information about Replacing Rohs Compliant Frus
13
Diskette Compatibility Matrix
14
Safety Notices: Multilingual Translations
14
General Safety
26
Safety Information
26
Electrical Safety
27
Safety Inspection Guide
29
Handling Devices that Are Sensitive to Electrostatic Discharge
30
Grounding Requirements
31
Laser Compliance Statement
32
General Descriptions
35
Read this First
35
What to Do First
35
Related Service Information
37
Restoring the Pre-Installed System
37
Service Web Site
37
Passwords
38
Power Management
41
Hibernation Mode
42
Checkout Guide
44
Testing the Computer
44
Detecting System Information with PC-Doctor
47
Power System Checkout
48
Checking Operational Charging
49
Checking the Battery Pack
49
Checking the Backup Battery
50
Thinkpad T43/T43P Series
51
Product Overview
53
Specifications
53
Status Indicators
56
FRU Tests
59
Fn Key Combinations
61
Numeric Error Codes
64
Symptom-To-FRU Index
64
Error Messages
69
Beep Symptoms
70
No-Beep Symptoms
70
LCD-Related Symptoms
71
Intermittent Problems
72
Undetermined Problems
72
FRU Replacement Notices
73
Screw Notices
73
General Descriptions
26
Thinkpad T43/T43P Series
30
Retaining Serial Numbers
74
Restoring the Serial Number of the System Unit
74
Retaining the UUID
75
Reading or Writing the ECA Information
75
Removing and Replacing a FRU
77
1010 Battery Pack (14.1-In. LCD Models)
78
1020 Battery Pack (15.0-In. LCD Models)
80
1030 Ultrabay Slim Device
81
1040 Hard Disk Drive
82
1050 DIMM (Optional)
84
1060 Keyboard
86
1070 DIMM (Standard)
91
1080 Modem Daughter Card (MDC-2)
92
1090 Bluetooth/Modem Daughter Card (BMDC-3)
94
1100 Palm Rest or Palm Rest with Fingerprint Reader (14.1-In. LCD Models)
96
1110 Keyboard Bezel or Keyboard Bezel with Fingerprint Reader (15.0-In. LCD Models)
99
1120 Mini PCI Adapter
105
1130 Fan Assembly
107
1140 Backup Battery
111
1150 Speaker Assembly
113
1160 Keyboard Bezel (14.1-In. LCD Models)
115
Models)
115
1170 PC Card/Expresscard Slots (14.1-In. LCD Models)
117
1180 PC Card/Expresscard Slots (15.0-In. LCD Models)
119
1190 LCD Assembly (14.1-In. LCD Models)
121
1200 LCD Assembly (15.0-In. LCD Models)
126
1210 Cpu
131
1220 Ultrabay Slim Guide Rail Assembly (14.1-In. LCD Models)
132
1230 Ultrabay Slim Guide Rail Assembly (15.0-In. LCD Models)
134
1240 VGA and Ultrabay Slim Device Eject Button Cable
137
1250 System Board and Base Cover (14.1-In. LCD Models)
139
Models)
139
Cover (15.0-In. LCD Models)
146
2010 LCD Front Bezel (14.1-In. LCD Models)
154
2020 LCD Front Bezel (15.0-In. LCD Models)
156
2030 Inverter Card (14.1-In. LCD Models)
158
2040 Inverter Card (15.0-In. LCD Models)
160
2050 Wireless Antenna Assemblies, LCD Panel, LCD Cable Assembly, Hinges, and LCD Cover (14.1-In. LCD Models)
161
2060 Wireless Antenna Assemblies, LCD Panel, LCD Cable Assembly, Hinges, and LCD Cover (15.0-In. LCD Models)
175
3010 Thinkpad Dock II PCI Cover
182
3020 Thinkpad Dock II Top Cover
183
Locations
186
Front View
186
Rear View
188
Bottom View
189
Parts List
190
Overall
191
14.1-In. LCD Frus
206
14.1-In. XGA TFT
207
In. SXGA+ TFT
209
15.0-In. LCD Frus
211
15.0-In. XGA TFT
212
In. SXGA+ IPS TFT
213
15.0-In. UXGA IPS TFT
215
Keyboard
216
Recovery Cds
220
Windows XP Professional
220
Windows XP Home Edition (for Custom Model)
221
Miscellaneous Parts
222
AC Adapters
225
Optional Frus
226
Common Parts List
227
Tools
227
Power Cords (System)
228
Power Cords (Thinkpad Dock and Thinkpad Dock II)
229
Notices
230
Trademarks
230
