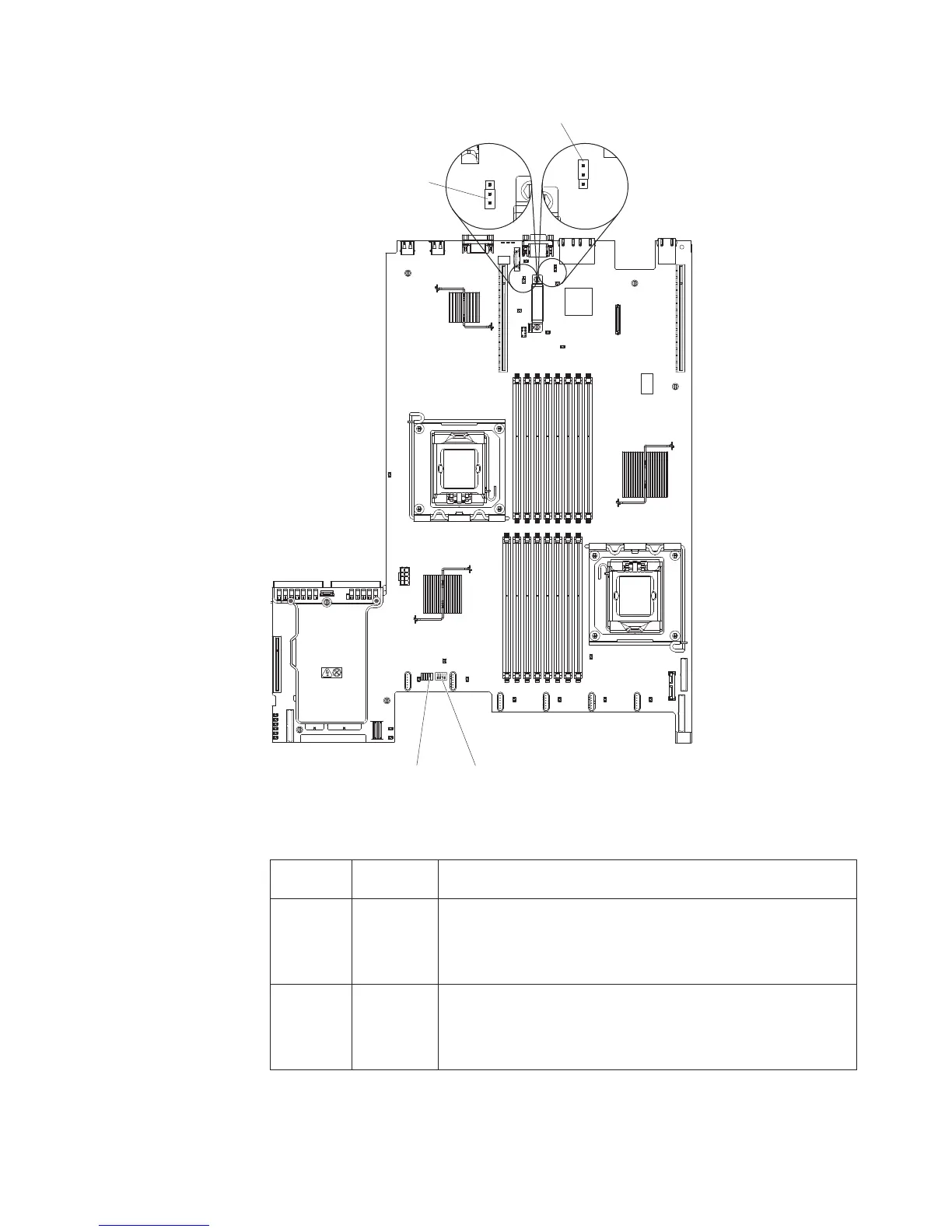

SW3 switch block SW4 switch block
UEFI boot recovery
jumper (J29)
1
2
3
1
2
3
IMM recovery jumper
(J147)
The following table describes the jumper settings for J29 and J147 on the Pass 9
level system board.
Table 5. System board jumpers
Jumper
number
Jumper
name Jumper setting
J29 UEFI boot
recovery
jumper
v Pins 1 and 2: Normal (default) Loads the primary server
firmware (formerly called BIOS) ROM page.
v Pins 2 and 3: Loads the secondary (backup) server firmware
ROM page.
J147 IMM
recovery
jumper
v Pins 1 and 2: Normal (default) Loads the primary IMM
firmware ROM page.
v Pins 2 and 3: Loads the secondary (backup) IMM firmware
ROM page.
Chapter 2. Installing optional devices 29

IBM x3650 - System M2 - 7947 Specifications

General

Processor	Intel Xeon 5500 series
Chipset	Intel 5520
Model	IBM x3650 - System M2 - 7947
Memory	Up to 192 GB DDR3
Storage	Up to 8 TB SAS/SATA
RAID Support	RAID 0, 1, 10
Network Interface	Dual Gigabit Ethernet
Power Supply	Dual 675W
Expansion Slots	Six PCIe slots
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Form Factor	Rack (2U)
