IBM x3650 - System M2 - 7947 User Manual

Table 5. System board jumpers (continued)
Jumper
number
Jumper
name Jumper setting
Notes:
1. If no jumper is present, the server responds as if the pins are set to 1 and 2.
2. Changing the position of the UEFI boot recovery jumper from pins 1 and 2 to pins 2 and
3 before the server is turned on alters which flash ROM page is loaded. Do not change
the jumper pin position after the server is turned on. This can cause an unpredictable
problem.

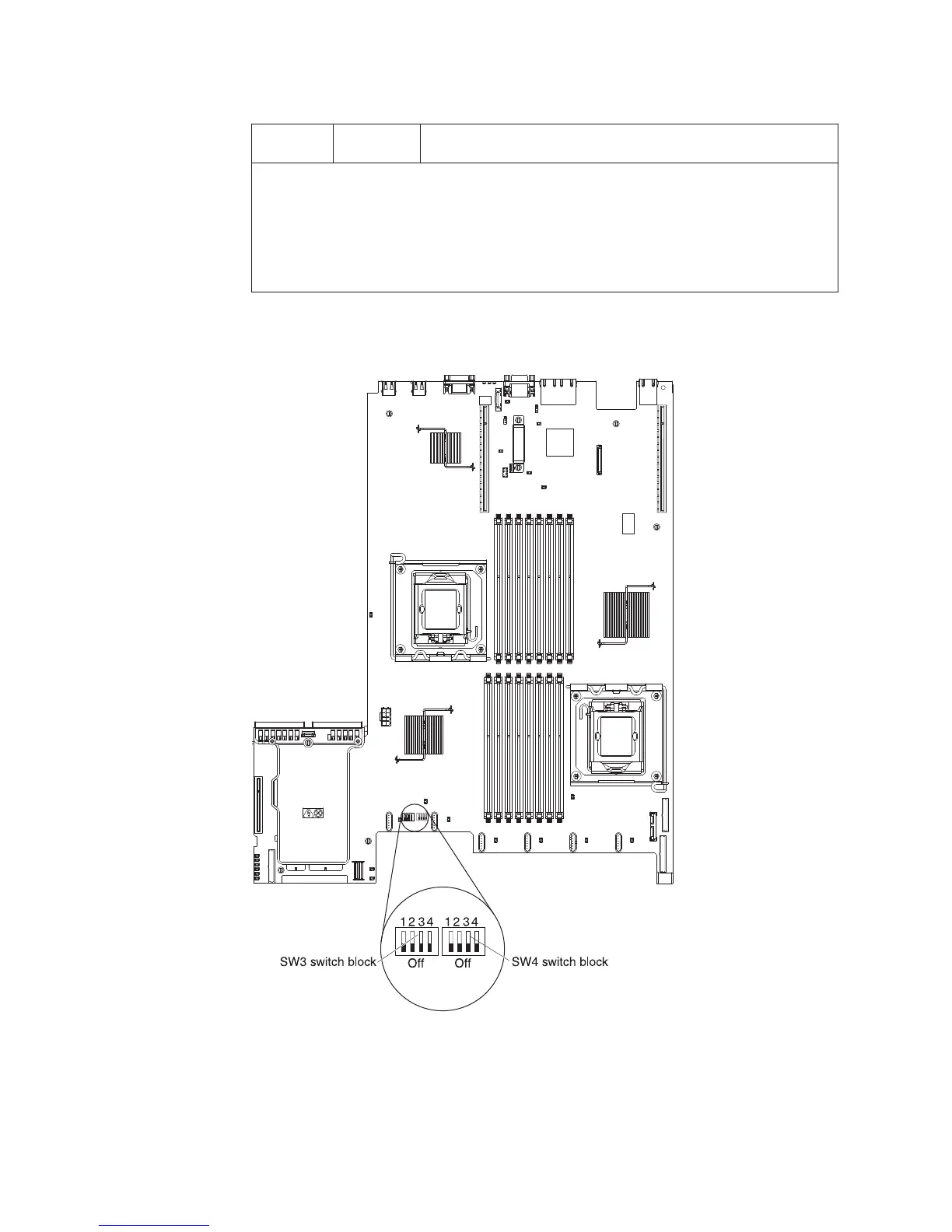

The following illustration shows the jumper settings for switch blocks SW3 and SW4
on the Pass 9 level system board.
Table 6 on page 31 and Table 7 on page 31 describe the function of each switch on
SW3 and SW4 switch blocks on the Pass 9 level system board.
30 System x3650 M2 Type 7947: Installation and User’s Guide

IBM x3650 - System M2 - 7947 Specifications

General

Processor	Intel Xeon 5500 series
Chipset	Intel 5520
Model	IBM x3650 - System M2 - 7947
Memory	Up to 192 GB DDR3
Storage	Up to 8 TB SAS/SATA
RAID Support	RAID 0, 1, 10
Network Interface	Dual Gigabit Ethernet
Power Supply	Dual 675W
Expansion Slots	Six PCIe slots
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Form Factor	Rack (2U)
