IBM X3850 X6 Installation Instructions

Note: Do not tighten the M5 hex head screws complete.
5. After the bottom shipping bracket and screws are installed, tighten all of the
screws.
Attaching the cable management brackets and routing the cables
This topic provides information about how to attach the cable management
brackets to the server and route the cables.
About this task
Note: These instructions apply to both the 4U and 8U server models. Only the 4U
is shown in the illustrations.
The server comes with cable management brackets to hold the cables in place and
prevent them from sagging or getting pinched and damaged. The cable
management bracket prevents the cables from being pulled to tight and assists in
providing the correct tension on the cable and routing of the cables. The cable
management brackets snap on both sides of the server and contain an opening
(slot) for a hook and loop strap. The hook and loop strap is used to hold the cables
in place.
To attached the cable management brackets and route the cables, complete the
following steps:
1. Align the cable management brackets with the server and snap them in place.

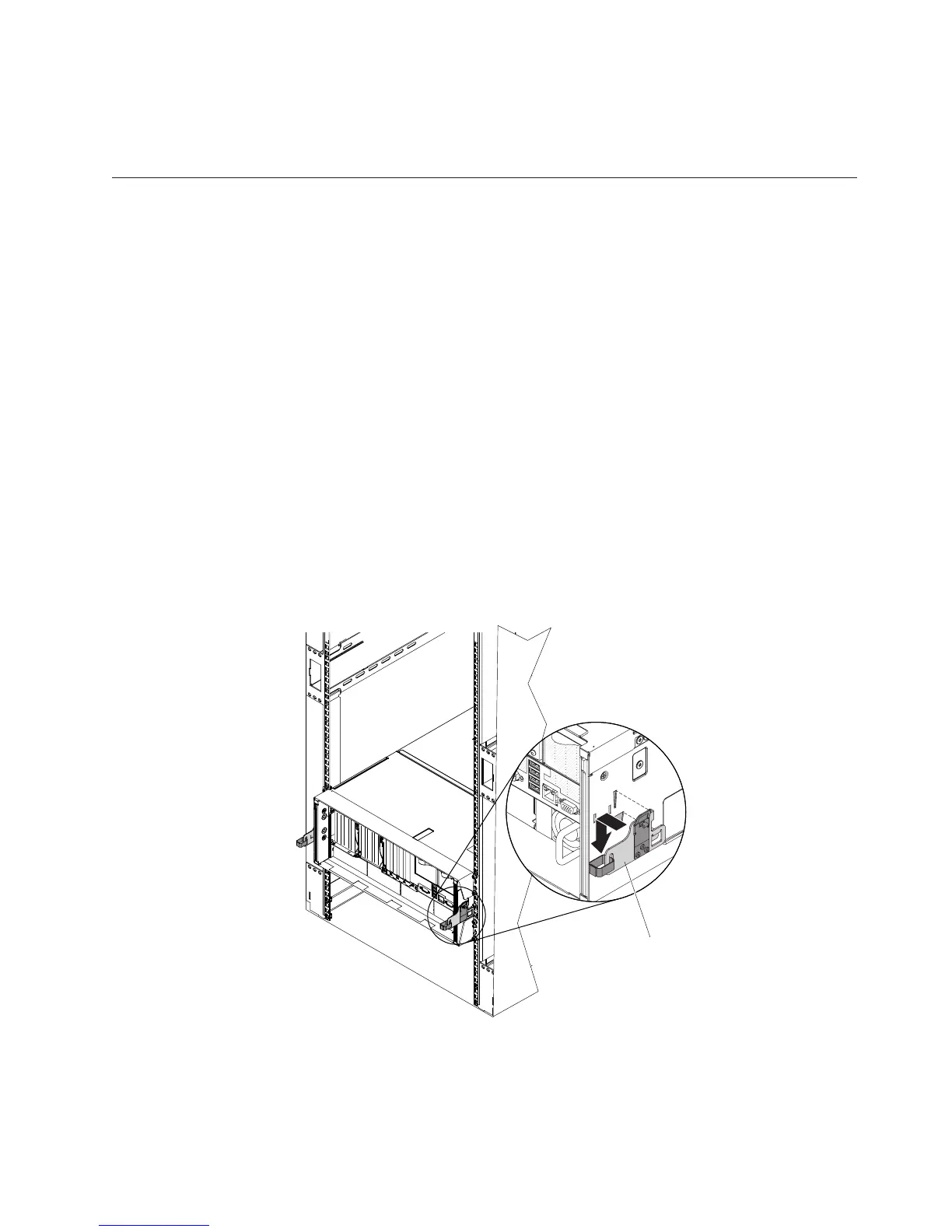

The following illustration shows the rear of the server with the cable
management brackets installed.
Cable
management
bracket
2. Attach the power cords and other cables to the rear of the server (including
keyboard, monitor, and mouse cables (if required).
3. Route the cables and power cord through the hook and loop straps on the cable
management brackets.
Notes:
Chapter 3. Rack installation 15

IBM X3850 X6 Specifications

General

Chipset	Intel C602J
Network Controller	Integrated quad-port Gigabit Ethernet
Processor	Up to four Intel Xeon E7-4800 v2 series processors or Intel Xeon E7-8800 v2 series processors
Memory	Up to 6 TB of DDR3 ECC Registered DIMMs (RDIMMs) or Load-Reduced DIMMs (LRDIMMs)
Form Factor	4U rack server
Storage	Up to 24x 2.5" hot-swap SAS/SATA HDDs or SSDs
Expansion Slots	Up to 11 PCIe 3.0 slots
Power Supply	Up to four 1400W or 900W hot-swap power supplies
Memory Type	DDR3 RDIMM/LRDIMM
Storage Controller	ServeRAID M5210 SAS/SATA controller
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
