IBM X3850 X6 Installation Instructions

v Make sure that you connect the systems-management Ethernet cables to both
nodes' IMM ports to enable communication with the IMM in both nodes.
v Make sure that the cables are pull tight enough so the they are not too loose and
hang below the U space to prevent them from getting pinched or damaged.
v Allow some slack in the cables to avoid strain on the cables.
Removing the server from the rack
This topic provides information on how to remove the server from the rack
cabinet.
About this task
Note: These instructions apply to both the 4U and the 8U server models. Only the
4U is shown in the illustrations.
To remove the server from the rack cabinet, complete the following steps:
1. Turn the server off.
2. Disconnect the external cables.
3. Release the cables from the cable management brackets on the server.
4. Remove the cable management bracket from the left side of the server. Press
the latch outward and slide the bracket up until it is released from the server.
Remove the cable management bracket from the right side of the server.
5. Remove the shipping brackets and shipping screws from the server, if installed.
6. Remove the server components (for example, the compute books and power
supplies from the front and rear of the server). This reduces the weight of the
server and allow the server to be easily removed from the rack. See the server
documentation for instructions on removing the individual components from
the server.

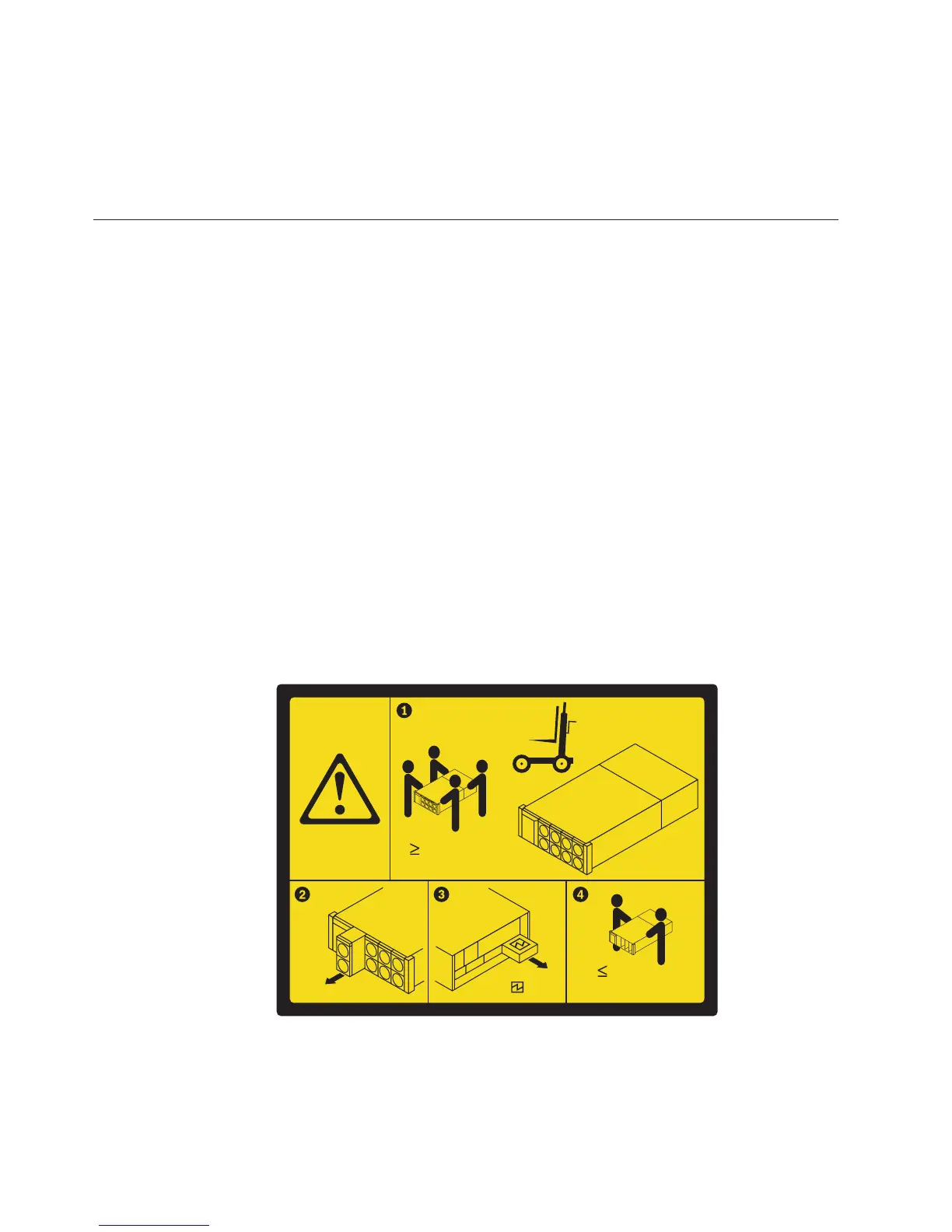

55.4 kg
(122 lbs)
32 kg
(70 lbs)
(4X)(4X)
or
16 System x3850 X6 and x3950 X6 Types 3837 and 3839: Rack Installation Instructions

IBM X3850 X6 Specifications

General

Chipset	Intel C602J
Network Controller	Integrated quad-port Gigabit Ethernet
Processor	Up to four Intel Xeon E7-4800 v2 series processors or Intel Xeon E7-8800 v2 series processors
Memory	Up to 6 TB of DDR3 ECC Registered DIMMs (RDIMMs) or Load-Reduced DIMMs (LRDIMMs)
Form Factor	4U rack server
Storage	Up to 24x 2.5" hot-swap SAS/SATA HDDs or SSDs
Expansion Slots	Up to 11 PCIe 3.0 slots
Power Supply	Up to four 1400W or 900W hot-swap power supplies
Memory Type	DDR3 RDIMM/LRDIMM
Storage Controller	ServeRAID M5210 SAS/SATA controller
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
