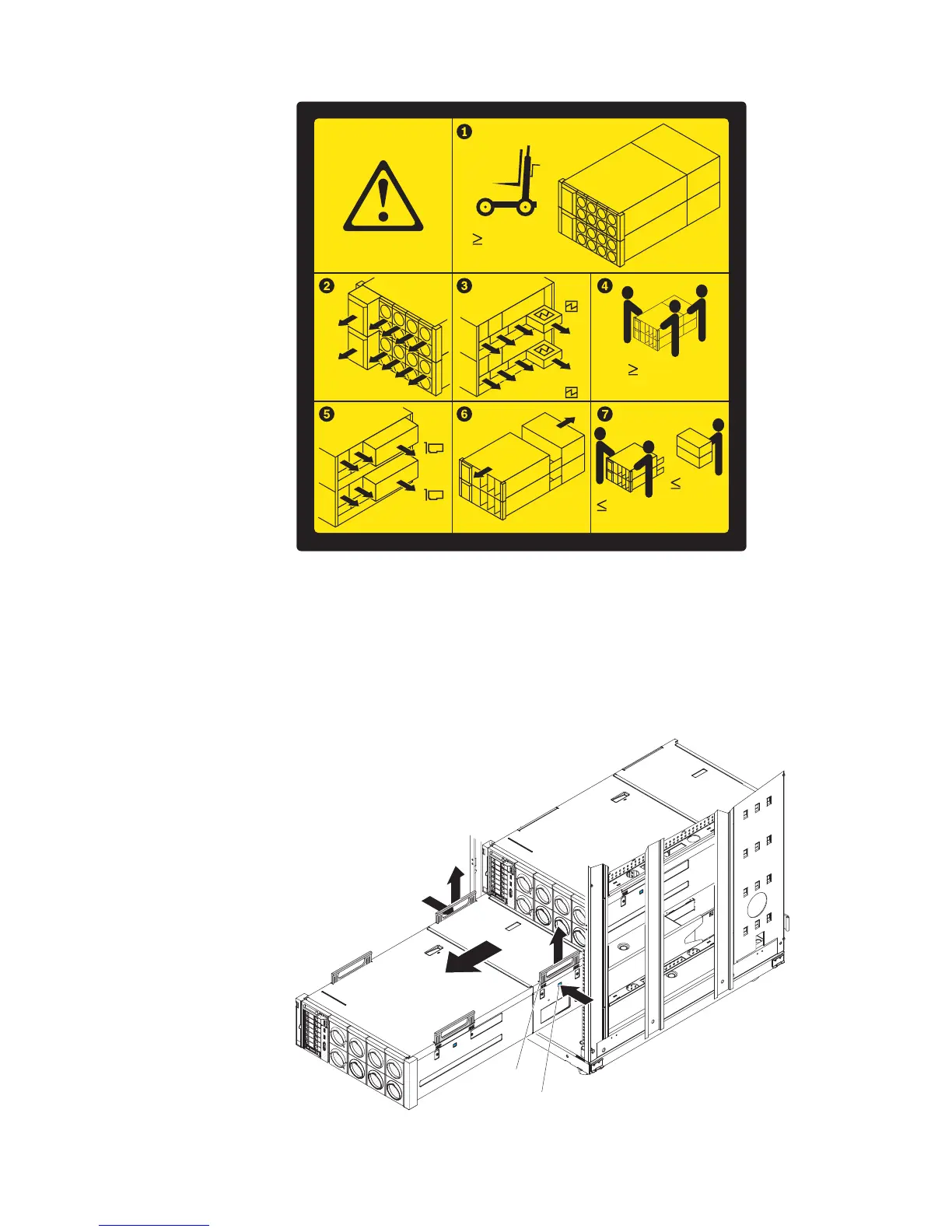

7. Slide the server out of the rack; as soon as the handles are beyond the server
that is in the rack above the server you are removing, press the blue buttons on
the sides of the server to release the lift handles (as shown in the illustration).
Attention: This is critical for the rear of the server because as soon as the
handles are beyond any system above it, the server does not have much rail
space to sit on and becomes unstable.
Note: The server handles are released the same way for both the 4U and the
8U.
Handle
Handle
release
Chapter 3. Rack installation 17
