37
D C
B A
4321
D C
B A
4321
DATE
7/9/01
DESCRIPTION

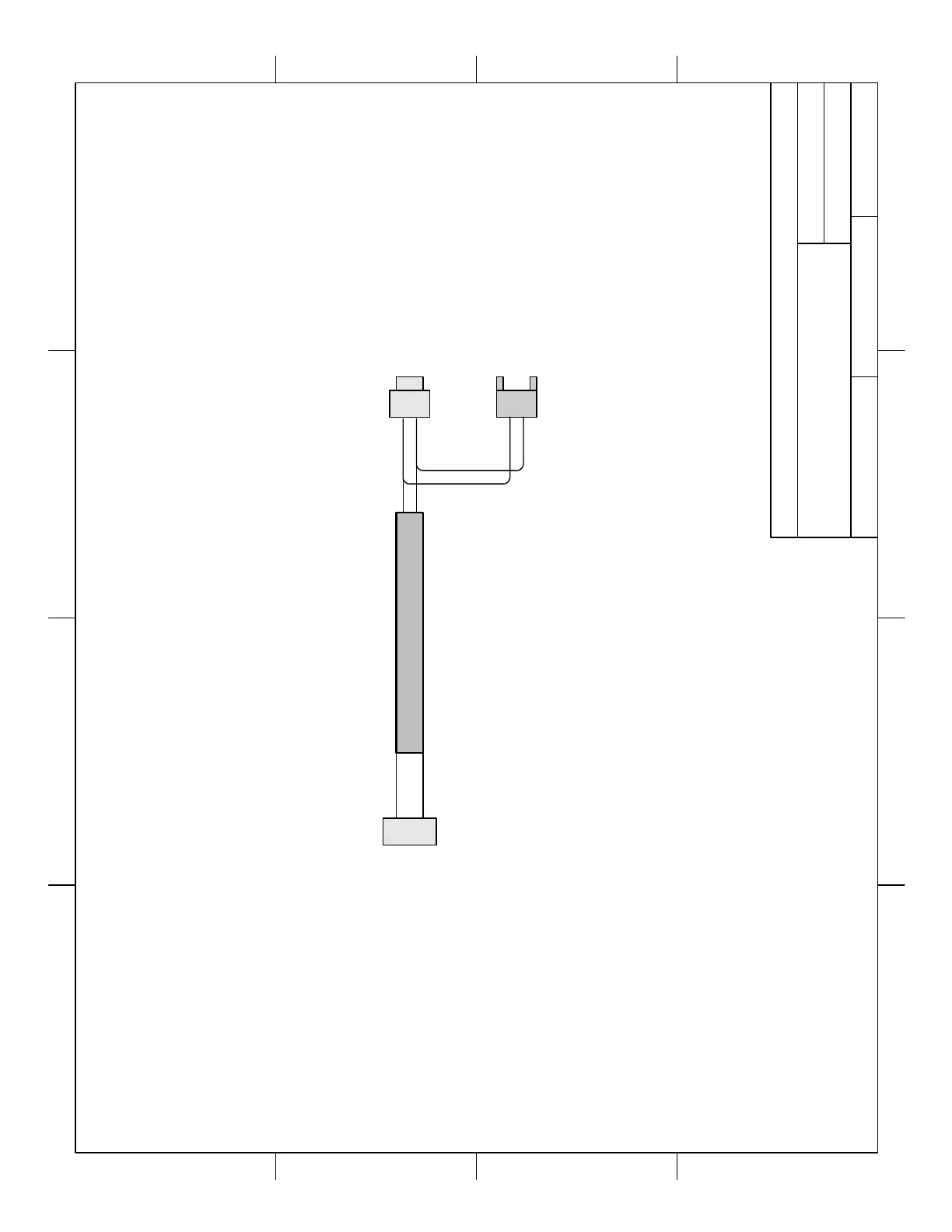

#CS2089X - ROPELIGHT CONTROLLER HARNESS
DRAWN BY
MMARTIN
FILENAME
CS.VSD
PAGE
14 OF 16
REVISED
2/6/02
TITLE
SNACK ATTACKER
1 2 3
3 PIN AMP HOUSING #2945 CONTACT PIN #2201
1 2
2 PIN PLUG #2103 14 AWG MALE PIN #2422 2 PIN CAP #2181 FEMALE PIN #2102
1 2
#8173 - CABLE 3 COND SVT CORD BLACK
BLACK WHITE
BLACK
WHITE
BLACK
WHITE
18 "
6 "
P1
To Ropelight Controller Board
To Transformer
2 " STRIP
2 " STRIP
