Ice Qube Evolution Series - Schematic Wiring Diagrams; Ordinary Locations Wiring

Default Icon
40 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
17

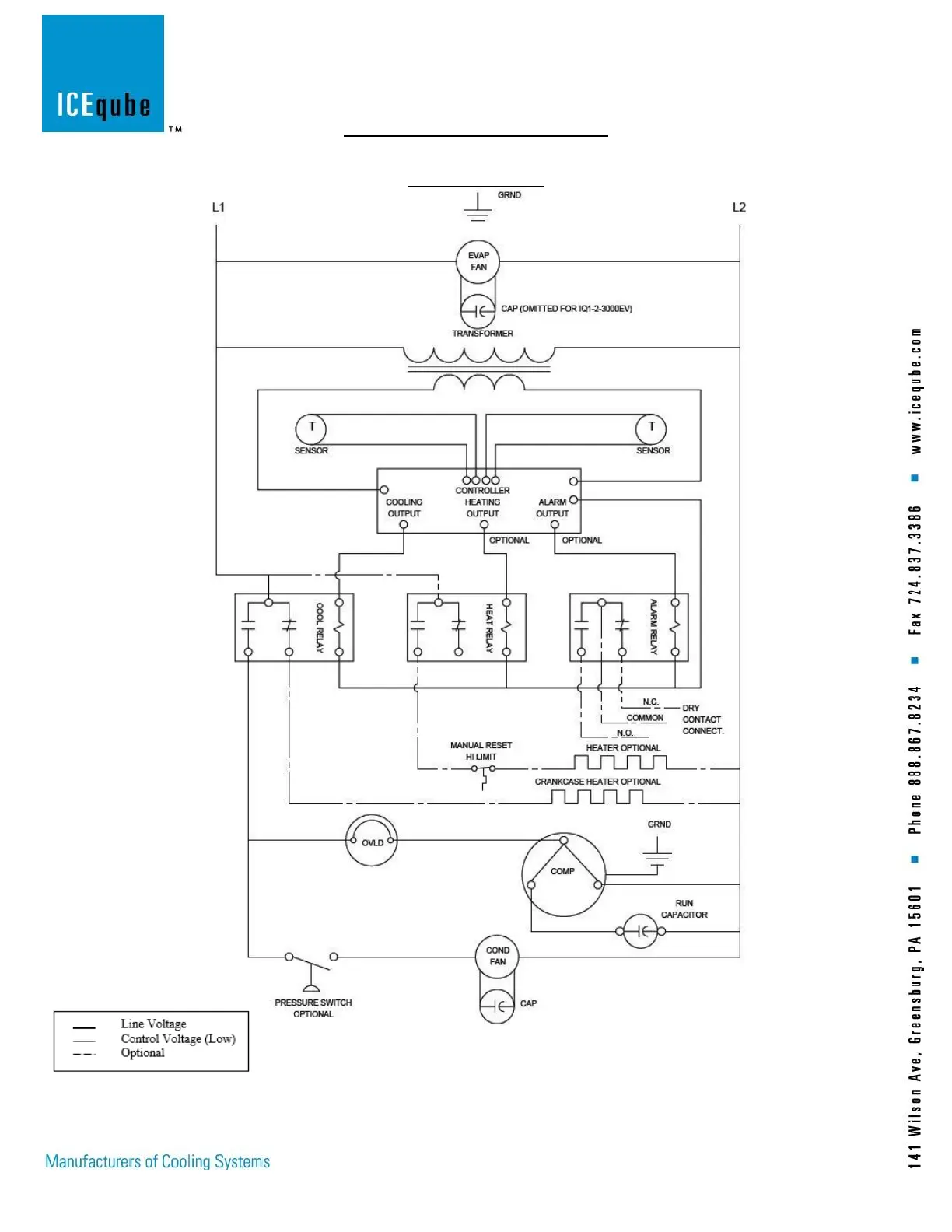

Schematic Wiring Diagrams
Ordinary Locations
120V/220V/230V
Figure 8
IQ350942 Rev A
