ICE i20NB / i20NBT / i20NBT-OB / i24BT

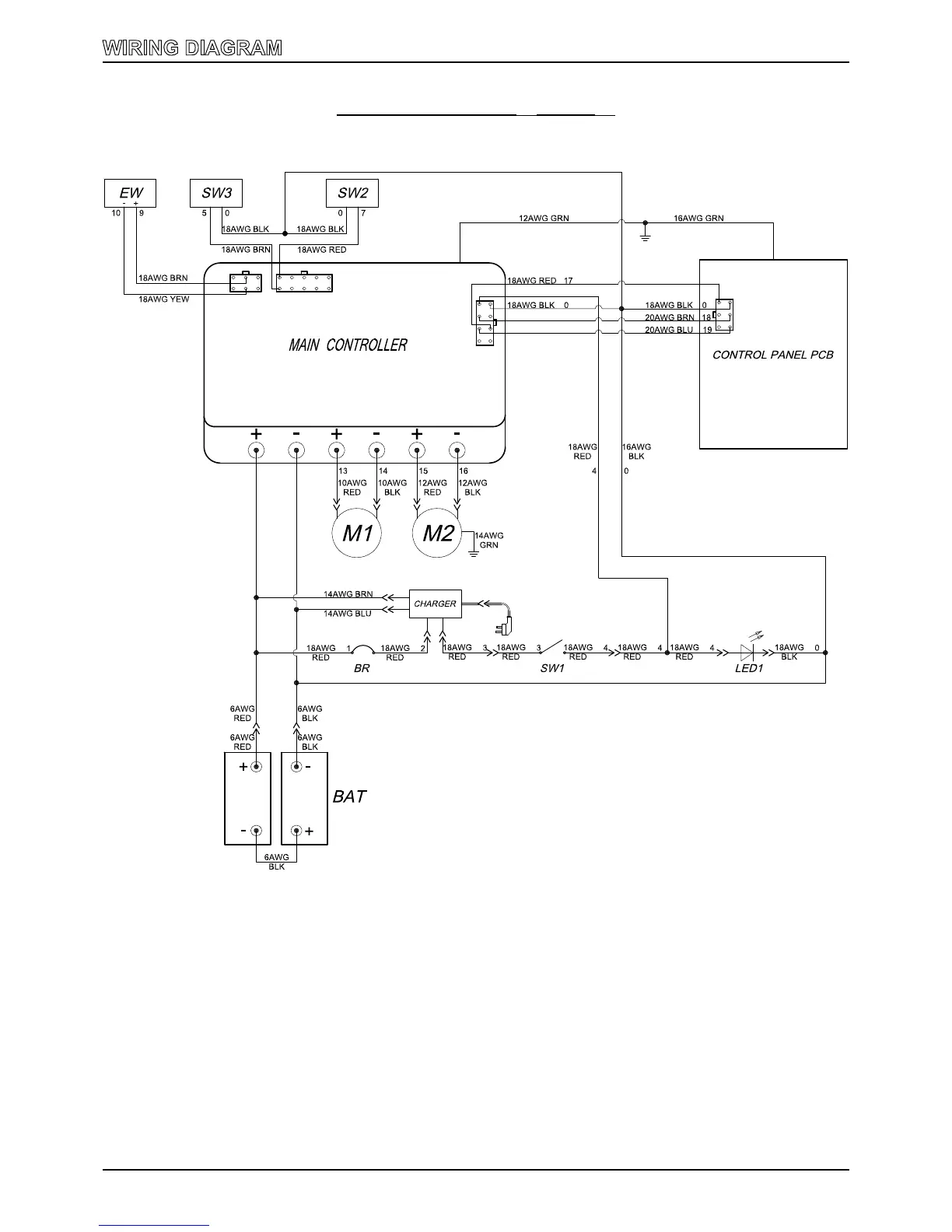

WIRING DIAGRAM
WIRING DIAGRAM
（
i20NB
）
MAIN CONTROLLER: Main controller
CONTROL PANEL PCB: Control panel PCB
EW: Solution solenoid valve switch
SW3: Control handle start bail switch
SW2: Safe switch, Scrub head lifting
BAT: 2-12V Batteries
BR: Main controller circuit breaker, 5A
SW1: Main power key switch
LED1: Running lights
CHARGER: On board battery charger
M1: Brush motor
M2: Vacuum motor
