4 ICE iS1100
OPERATOR

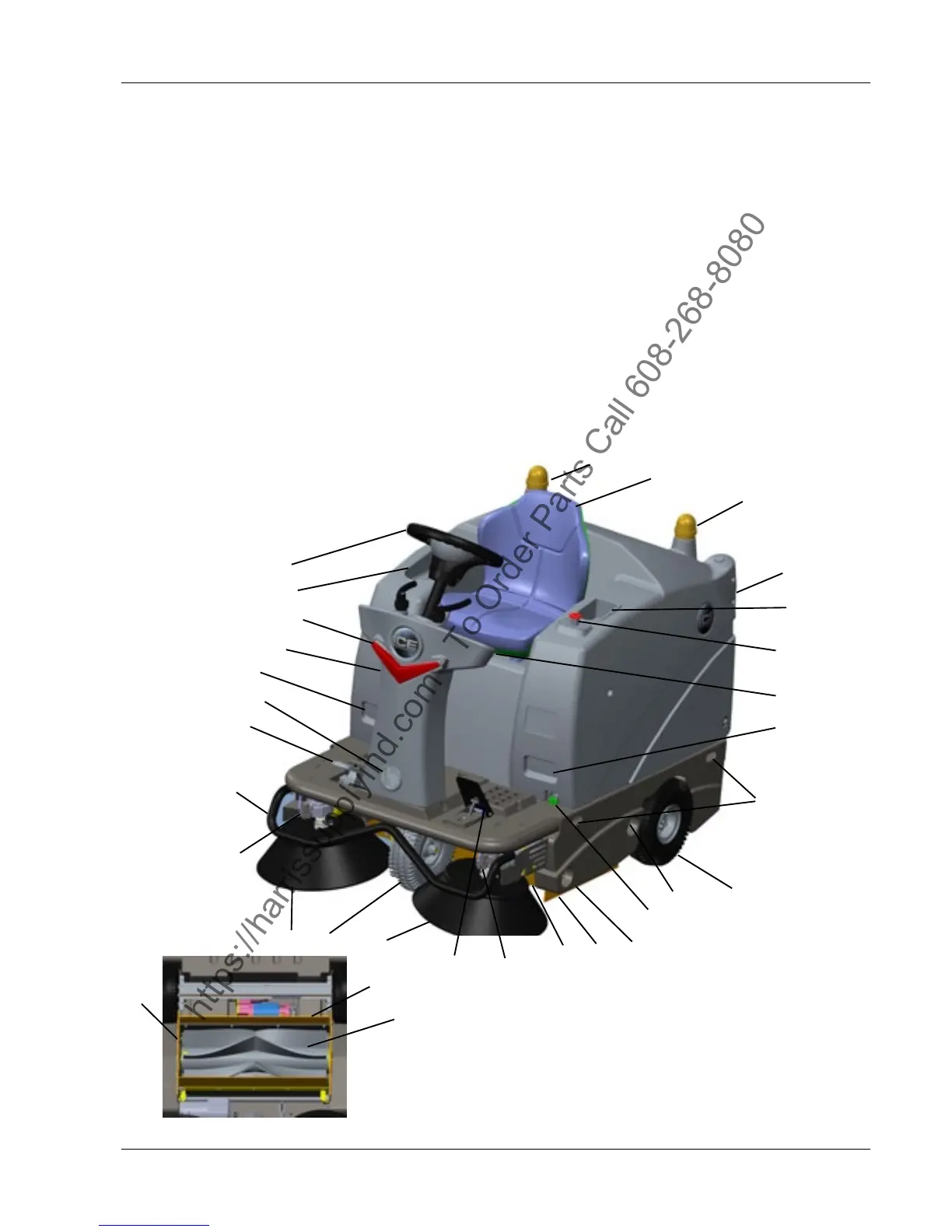

MACHINE COMPONENTS
1. Steering wheel
2. Speed control pedal
3. Front skirt lifting pedal
4. Can holder
5. Body
6. Rear driving wheels on xed axle
7. Front steering wheel
8. Right side brush
9. Left side brush
10. Main brush
11. Left side skirt
12. Right side skirt
13. Front skirt
14. Rear skirt
15. Emergency push-button
Press it in case of emergency to stop
all the machine functions. To deactivate
the emergency push-button, turn it in the
direction shown by the arrow.
16.Left cover (to be opened for performing
maintenance procedures only)
17. Cover nuts
18. Flashing light (always on when the ignition
key is turned to “I”)
19. Driver’s seat with safety microswitch
20. Seat longitudinal position adjusting lever
21. Led light
22. Working light (optional)
23. Right side brush height adjusting knob
24. Left side brush height adjusting knob
25. Machine lifting anchors
26. Front bumper
27. Body opening handles
27a.Off-board battery charger port
1
2
3
4
4
5
6
7
8
9
12
10
1113
14
17
16
18
18
19
21
22
20
23
24
26
25
27
27
15
4
27a
