8. CLEANING KIT
the kit is composed of a plastic bottle with rubber pipe,
one confection of acid citric (1 kg.),
and instructions for the cleaning procedure.

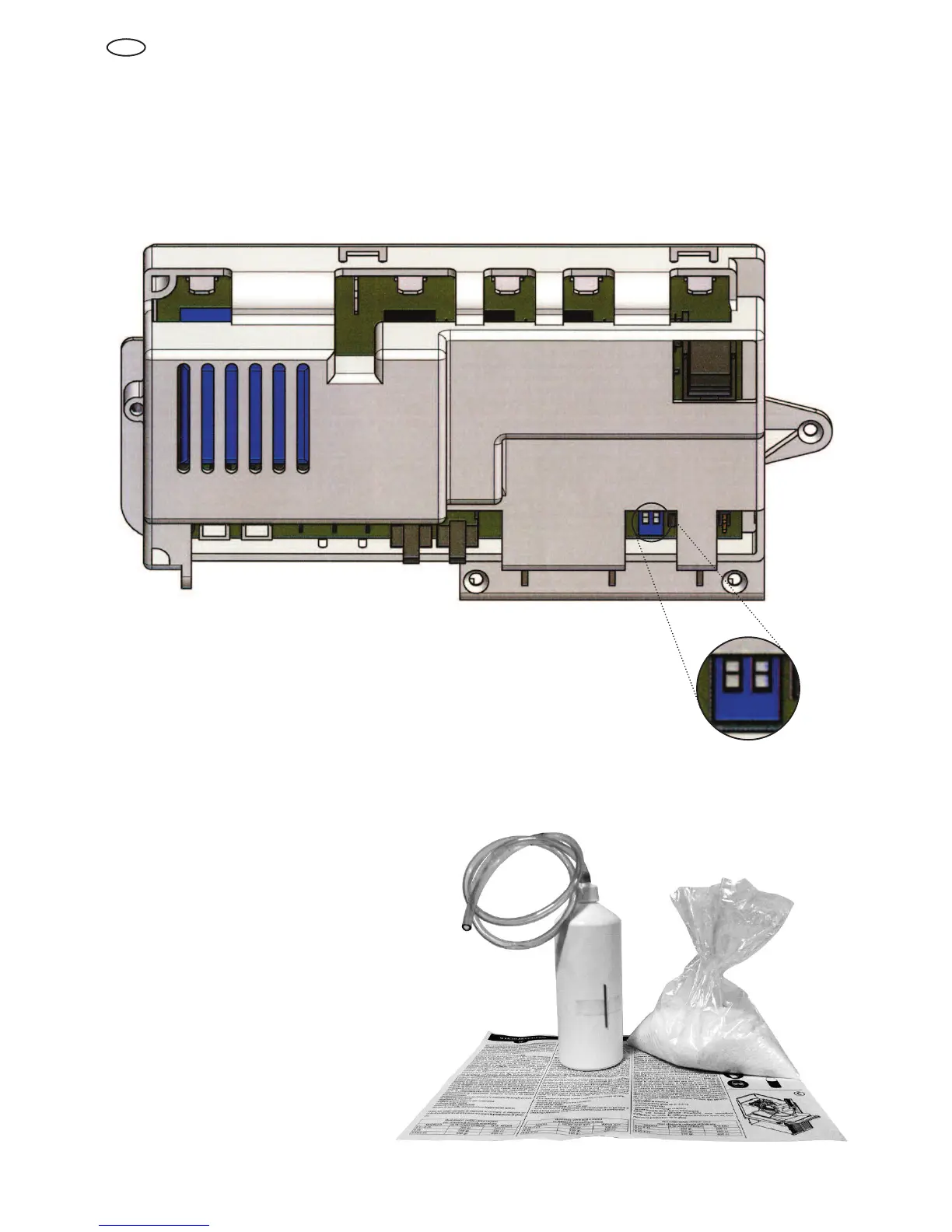

7. CONNECTION OF ELECTRICAL CABLES AND COMPONENTS TO THE PC BOARD
CAUTION: OBSERVE THE CONNECTION WITH THE COLORS OF ELECTRIC CABLES.
Float level sensor
Micro tip
Cumun micro
Micro defrost
Probe deposit ice
Condenser probe
Blue Brown
Orange
Black White
Red
Dip. Switch
to set the
maintenance hours
