GB
33

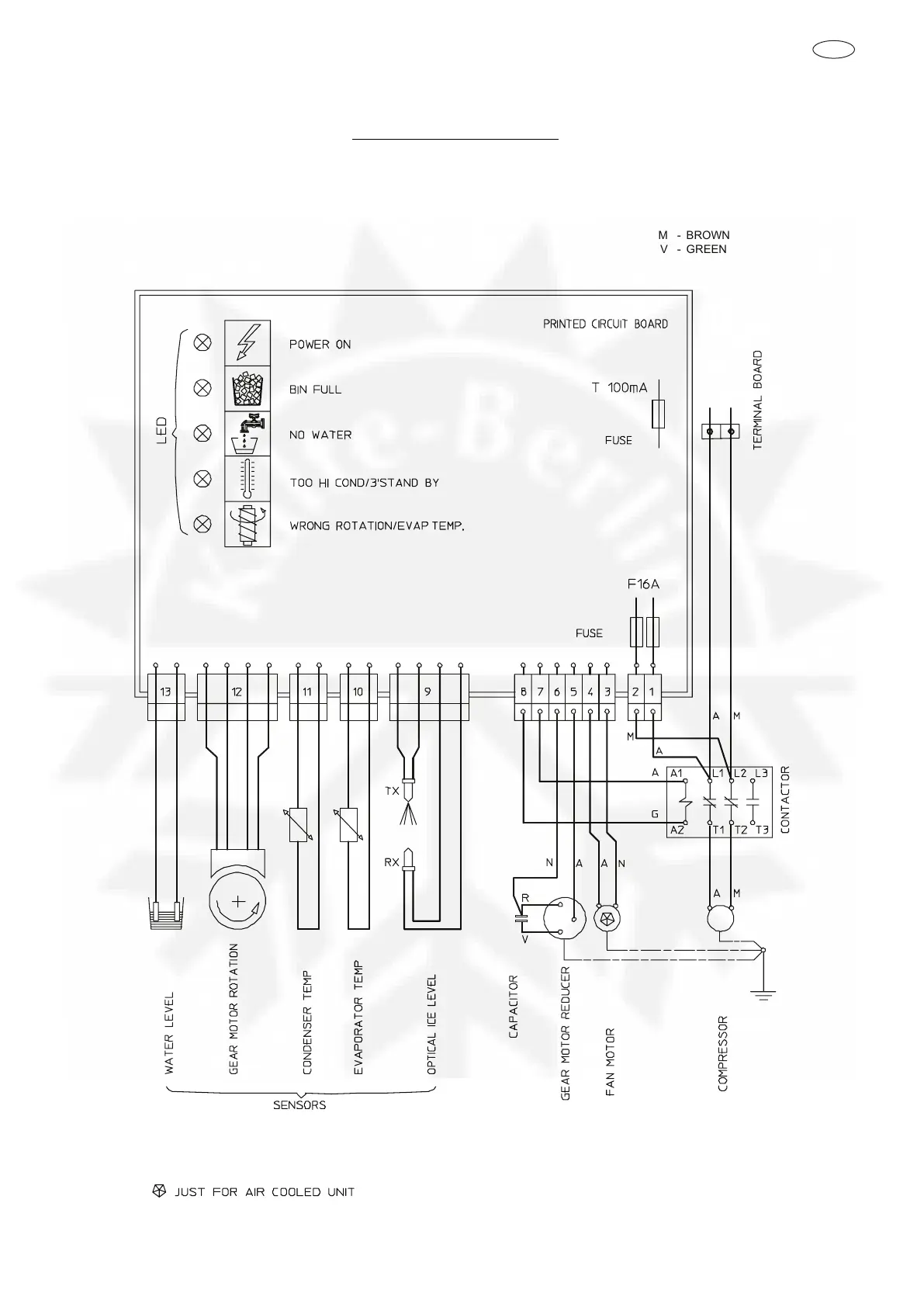

WIRING DIAGRAM SF300 - SF500
AIR AND WATER COOLED
S
INGLE PHASE
GV - YELLOW GREEN
B
- WHITE
G-GREY
N-BLACK
A
- BLUE
M-BROWN
V-GREEN
