GB
35

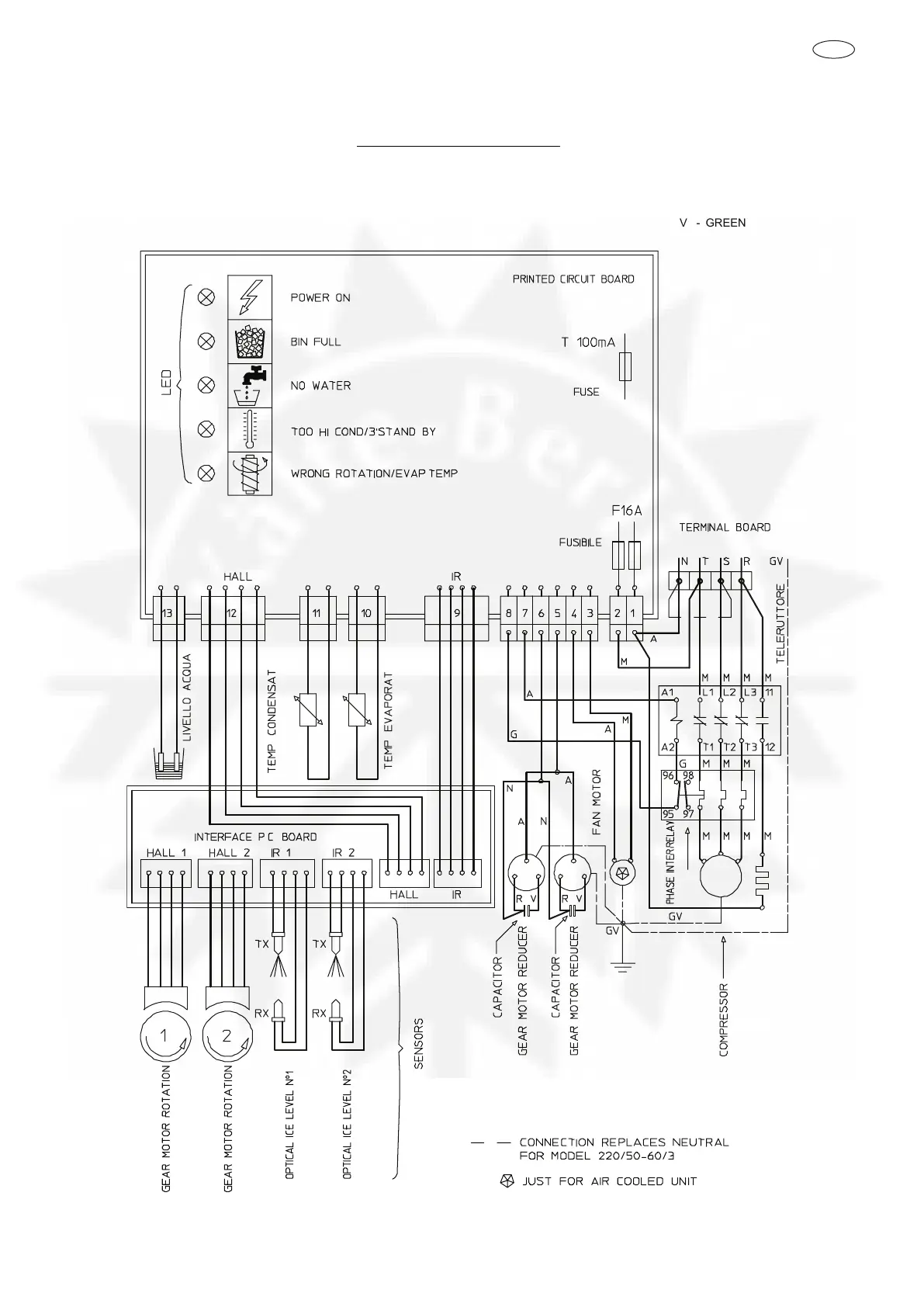

WIRING DIAGRAM SFN1000
AIR AND WATER COOLED
THREE PHASE
GV - YELLOW GREEN
B
- WHITE
G-GREY
N-BLACK
A
- BLUE
M-BROWN
V-GREEN
