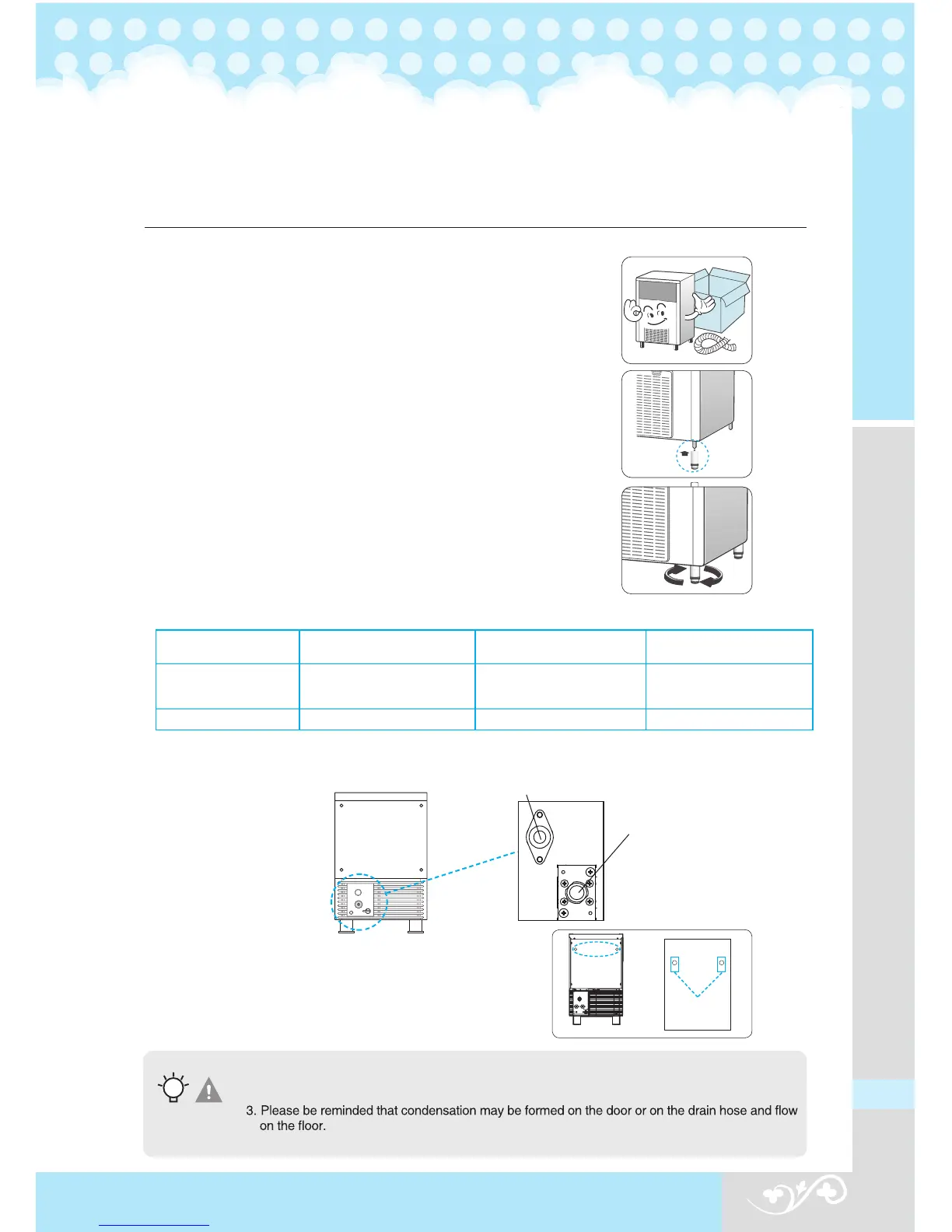

1. Unpacking the product
- Unpack the product and take out the parts packed inside the product.
2. Assembling the feet
-Assemble the 4 height adjustable feet on the bottom of the Ice Maker.
3. Level Adjustment
- Adjust the level of the machine with the height adjustable feet.
Lift the front side with the front feet so that the machine is inclined
backwards a little.
(Make the front side higher than the rear side by 5~10mm(1/4 - 3/8"))
1. The supply water must be from the city service water.
2. The pressure and temperature of the supply water must be 1.4kgf/㎠~5.6kgf/㎠
(20psi ~ 80psi, 138kPa ~ 550kPa) and 10℃ ~ 32℃(50℉ ~ 90℉), respectively.
4. Connect the water supply and drain hoses tightly to prevent unwanted separation.
Warning
Installation
17
5. Attatching the Foam pe
- Attatching the Foam pe on the Back Panel,
as shown in the figure.
Ice making water drain
(3/4" PT)
Ice making water
supply inlet (3/8" PT)
4. Connecting water piping
- Too high temperature of the ice-making water will decrease the amount of ice produced;
too low pressure will prevent ice from being made at all. Install an auxiliary pressure pump
in this case.
Appropriate water temperature Water pressure
Appropriate piping
/hose size
Ice making water supply
10 ~ 32 ℃
50 ~ 90 ℉
1.4 ~ 5.6 kgf/㎠
20 ~ 80 psi
138 ~ 550 kPa
3/8" PT
Ice making water drain - - 3/4" PT
Foam pe
