2 - 1

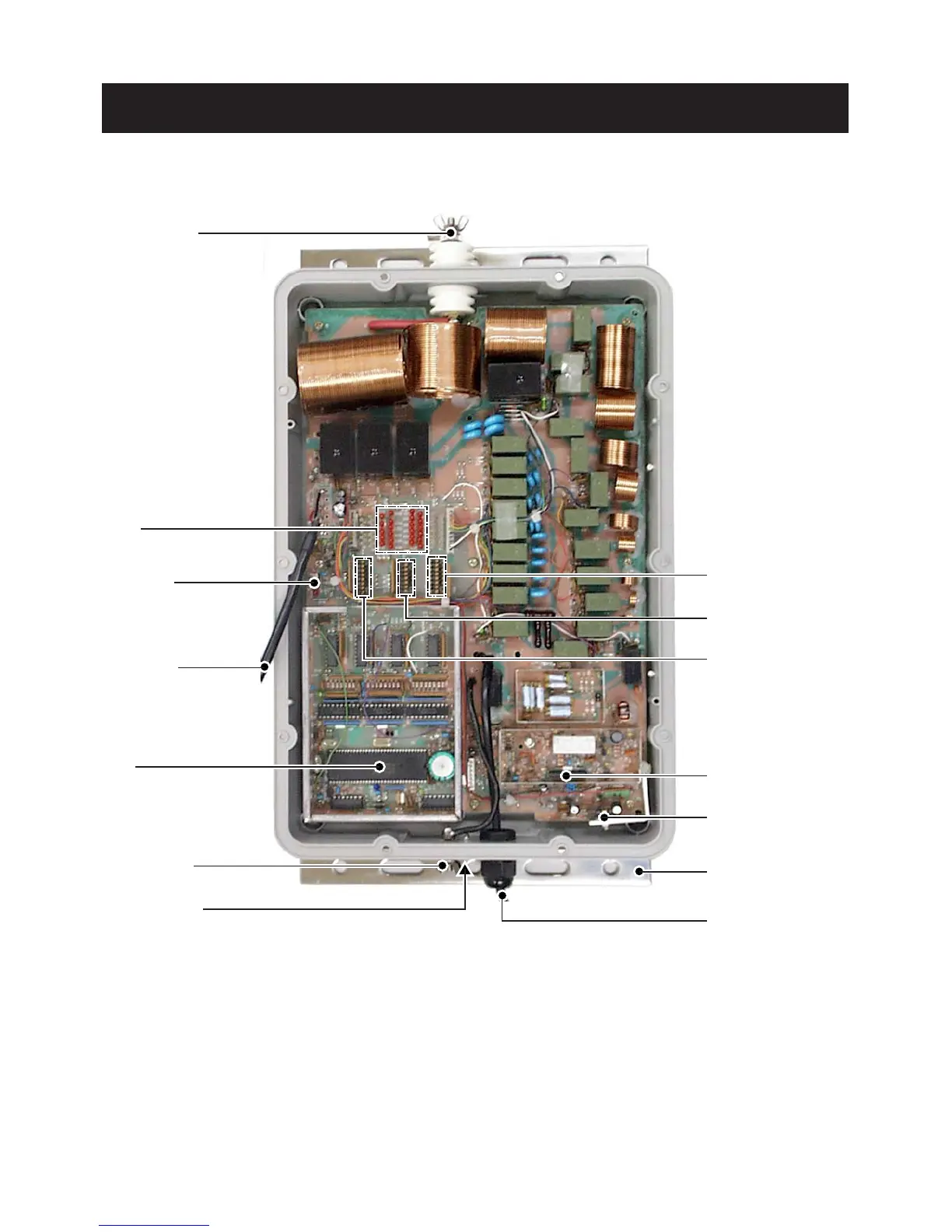

SECTION 2 INSIDE VIEW
+5V regulator
(IC8: TA7805S)
Comparator
(IC10: TA75393S)
Mounting plate
Antenna cable receptacle
Dip switch
(SW3: SSGM18049A)
Dip switch
(SW4: SSGM17012A)
Dip switch
(SW5: SSGM18049A)
LED's
(DS1-DS23: EL204HD)
Antenna terminal
Mode switch
(SW1: MS621C)
Control cable
receptacle
CPU
(IC1: mPD78212CW-613)
Ground terminal
Water drain screw
+5V regulator
(IC8: TA7805S)
Comparator
(IC10: TA75393S)
Mounting plate
Antenna cable receptacle
Dip switch
(SW3: SSGM18049A)
Dip switch
(SW4: SSGM17012A)
Dip switch
(SW5: SSGM18049A)
LED's
(DS1-DS23: EL204HD)
Antenna terminal
Mode switch
(SW1: MS621C)
Control cable
receptacle
CPU
(IC1: µPD78212CW-613)
Ground terminal
Water drain screw
Photo: AT-140
