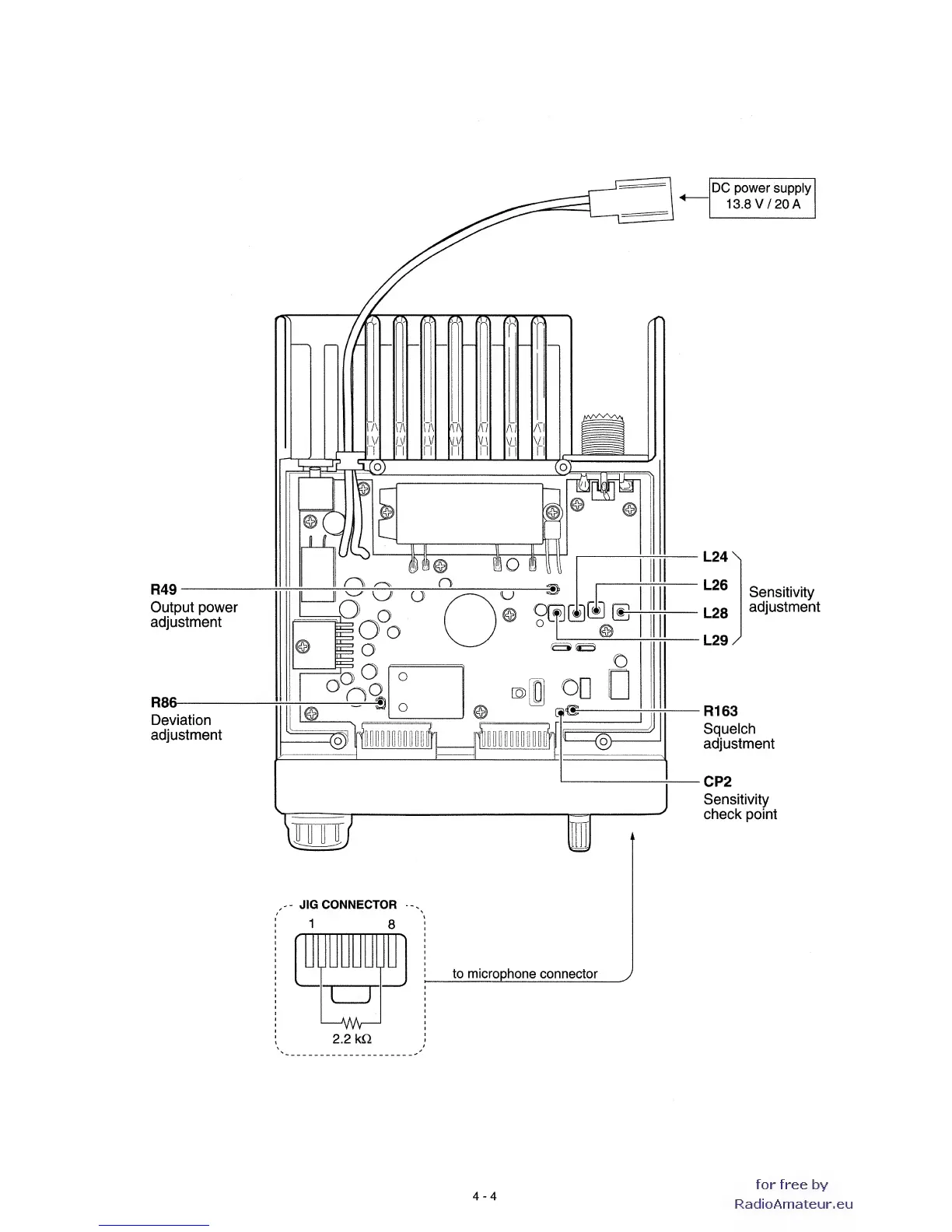

Icom IC-2100H

R49
Output power
adjustment
R86
Deviation
adjustment
DC power
supply
13.8
V/
20 A
L24\
Sensitivity
L28
adjustment
L29/
R163
Squelch
adjustment
CP2
Sensitivity
check point
,
-
JIG CONNECTOR
1
8
to microphone
connector
J
2.2 kO
4-4
