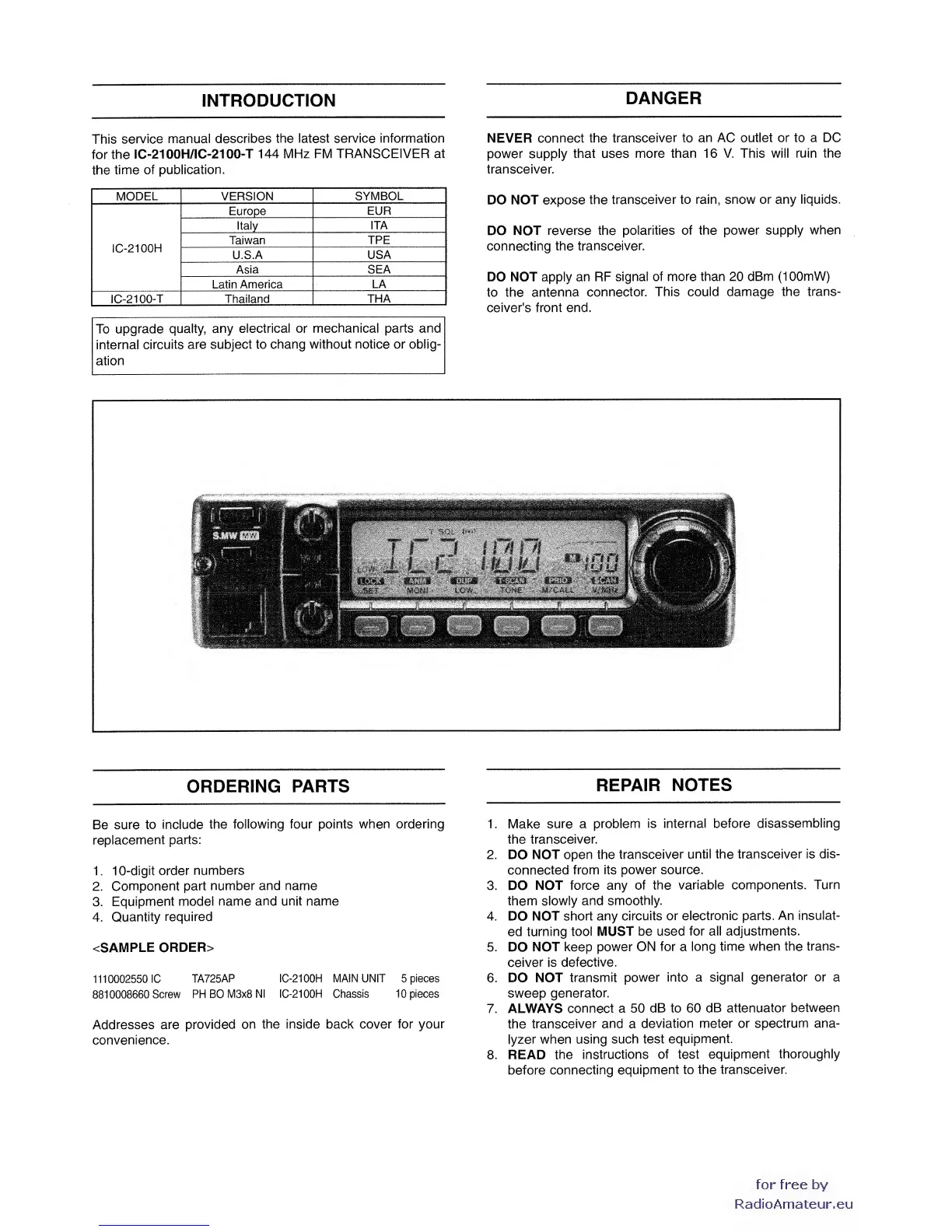

Page #2 background imageLoading...
Page #2 background image
INTRODUCTION
DANGER
This
service
manual describes the
latest
service information
for
the
IC-2100H/IC-2100-T
144 MHz FM
TRANSCEIVER
at
the
time
of
publication.
NEVER
connect the
transceiver
to
an AC
outlet or to a DC
power supply
that uses
more than 16
V. This will ruin the
transceiver.
MODEL
^
VERSION
SYMBOL
IC-2100H
Europe
EUR
Italy
ITA
Taiwan TPE
U.S.A
USA
Asia
SEA
Latin
America
LA
iC-2100-f
^
Thailand
THA
To upgrade
qualty,
any electrical or
mechanical parts and
internal
circuits
are
subject to chang without
notice or oblig-
ation
DO NOT expose the
transceiver to rain,
snow or any liquids.
DO NOT
reverse the
polarities of the power supply
when
connecting the
transceiver.
DO
NOT apply an
RF signal
of more than 20 dBm (lOOmW)
to the antenna
connector.
This could damage the trans-
ceiver’s front end.
ORDERING
PARTS
REPAIR NOTES
Be
sure to include
the
following four points when ordering 1.
replacement parts:
2 .
1 . 1
0-digit order
numbers
2.
Component part
number and name
3.
3.
Equipment model
name and unit name
4.
Quantity
required
4.
<SAMPLE
ORDER>
5.
1110002550 1C
TA725AP
IC-2100H MAIN UNIT
5
pieces
6.
8810008660
Screw
PH BO M3x8
Nl
IC-2100H Chassis
10
pieces
7.
Addresses
are provided
on
the inside back cover
for your
convenience.
8
.
Make
sure
a
problem
is
internal
before
disassembling
the
transceiver.
DO
NOT open the
transceiver
until the transceiver is
dis-
connected
from its
power source.
DO NOT
force any of
the
variable
components. Turn
them slowly
and smoothly.
DO
NOT short any
circuits or
electronic parts. An
insulat-
ed
turning tool
MUST
be
used
for all adjustments.
DO
NOT
keep power
ON for
a
long time
when
the trans-
ceiver is
defective.
DO NOT
transmit
power into a
signal
generator or
a
sweep
generator.
ALWAYS
connect
a 50
dB to 60 dB
attenuator
between
the transceiver
and
a
deviation meter or
spectrum ana-
lyzer
when using
such test
equipment.
READ
the
instructions
of test
equipment
thoroughly
before connecting
equipment
to
the transceiver.
for free by
RadioAmateur.eu
