Icom IC-2100H Service Manual

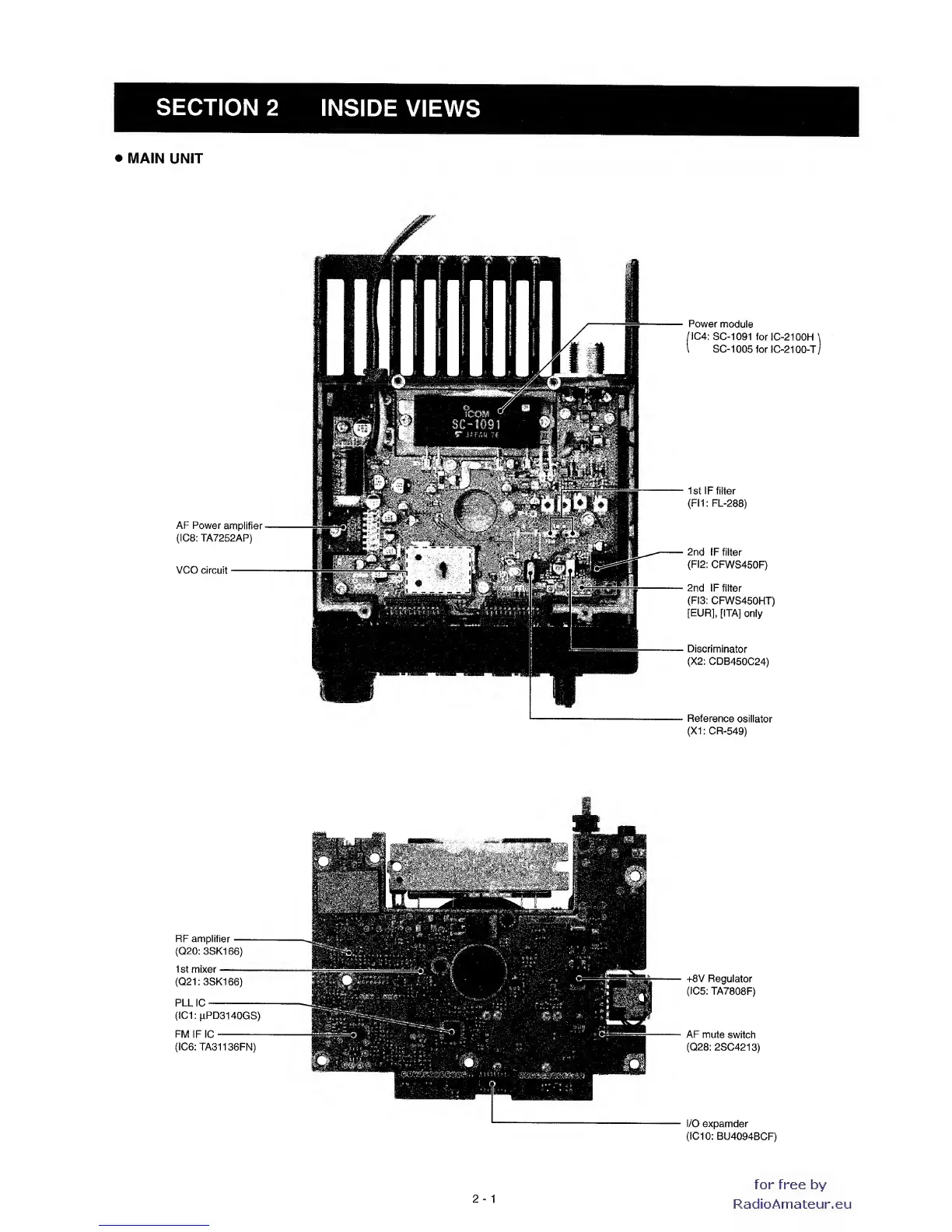

SECTION
2
INSIDE
VIEWS
•
MAIN UNIT
Power
module
l\C4:
SC-1091
forlC-2100H
\
I
SC-1005
for
1C-2100-T/
1st IF filter
(Fil: FL-288)
2nd IF filter
(FI2:
CFWS450F)
2nd IF
filter
(FI3:
CFWS450HT)
[EUR], [ITA]
only
Discriminator
{X2:
CDB450C24)
Reference
osillator
(X1:CR-549)
RF amplifier
{Q20:
3SK1
66)
1 St mixer
{Q21:3SK166)
PLL 1C
(IC1:pPD3140GS)
FM
IF 1C
(1C6:TA31136FN)
-I-8V
Regulator
{iC5:
TA7808F)
AF
mute
switch
(Q28: 2SC4213)
I/O
expamder
(IC10:
BU4094BCF)
2
-
1
