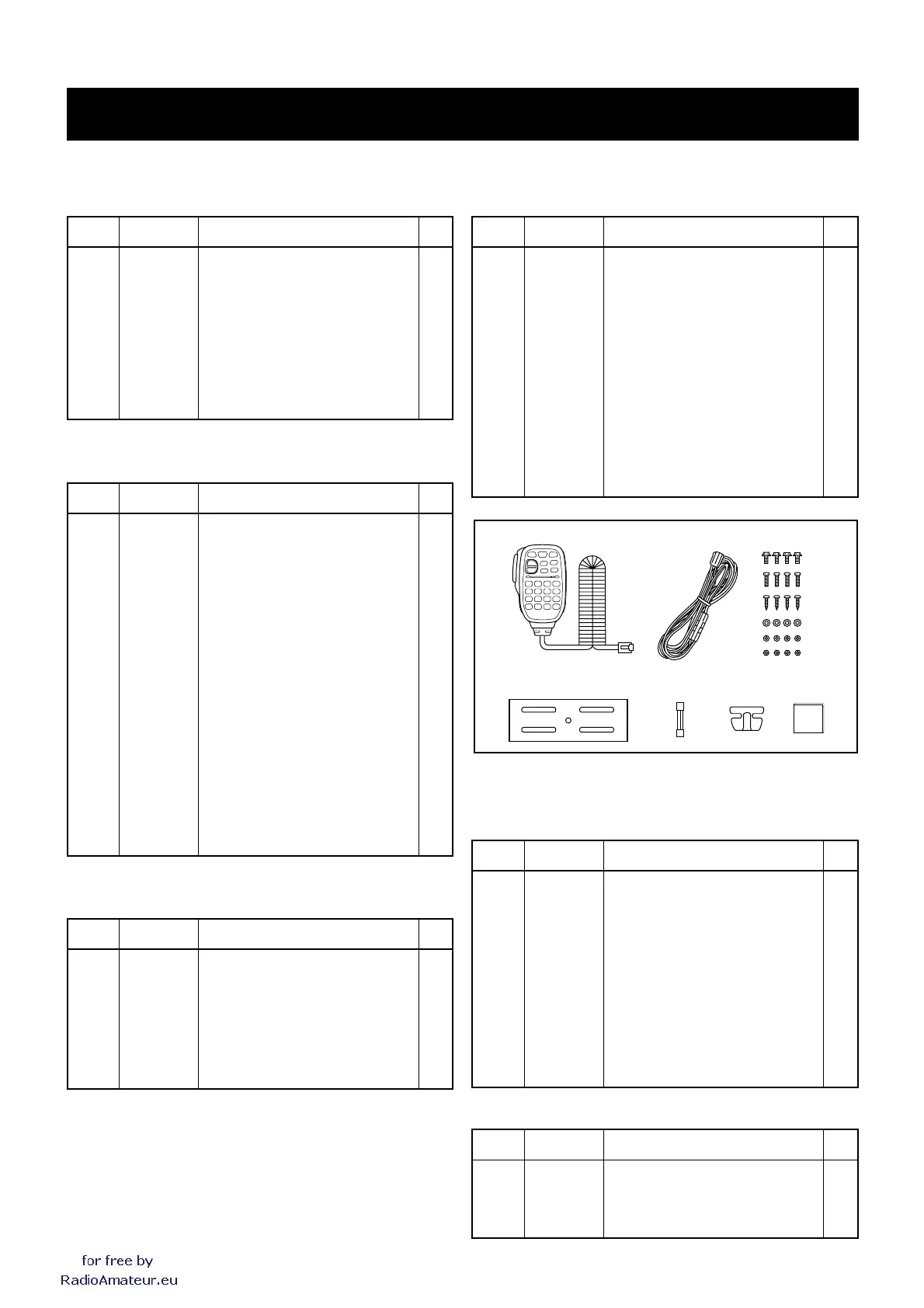

SECTION 7 MECHANICAL PARTS AND DISSASEMBLY
7 - 1
7-1 IC-2200H
J1 6450002210 Connector 3017-8821 1
R61 7210001870 Variable resistor EVU-F2AF20 A14 1
R62 7210001860 Variable resistor EVU-F2AF20 B14 1
S9 2250000460 Switch EVQ-VENF0224B 1
DS1 5030002660 LCD IS08264E00V2 1
EP11 8930062251 LCD contact SRCN-2698-SP-N-W-1 1
MP1 8210020350 2698 front panel 1
MP2 8210020340 2698 reflector 1
MP3 8930061130 2698 2-button 1
MP4 8930061140 2698 7-button 1
MP5 8930045610 2088 LCD filter 1
MP6 8810008990 Screw PH BT M2 × 10 ZK 4
MP7 8510015700 2698 front plate 1
MP8 8610011620 Knob N316 1
MP9 8610011610 Knob N317 2
MP11 8930062710 Sponge (HR) 1
MP12 8930062700 Himelon sheet (CM) 1
[LOGIC UNIT]
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
7-2 HM-133V
W1 8900011270 Cable OPC-1153 1
MP1 8210018830 2539 front panel [HM-133] 1
8210018890 2539 front panel (A) [HM-133S] 1
8210018910 2539 front panel (B) [HM-133V] 1
MP2 8210018840 2539 rear panel 1
MP3 8930057380 2539 PTT button 1
MP4 8930057390 2539 LED lens 2
MP5 8930057570 2539 SW rubber 1
MP6 8930057520 2539 keyboard [HM-133] 1
8930057710 2539 keyboard (A) [HM-133S] 1
8930057700 2539 keyboard (B) [HM-133V] 1
MP8 8810009370 Screw PH BT M3 × 12 ZK 2
MP9 8810009560 Screw PH BT M2 × 6 ZK 3
[CHASSIS PARTS]
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
Screw abbreviations BT, A: Self-tapping
PH: Pan head FH: Flat head
ZK: Black BS: Brass
NI: Nickel NI-ZU: Nickel-Zinc
J4 6450002220 Connector PJ-0008P-5 1
J7 6450001430 Connector HSJ1462-01-010 1
W6 8900010980 DC power cable OPC-1131 1
MP1 8510014470 2509 VCO case 1
MP2 8510014460 2509 VCO cover 1
MP3 8930005320 Filter spacer 2
MP4 8930062610 2698 M-holder 1
[MAIN UNIT]
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
J1 6510004880 Connector MR-DS-E 01 1
SP1 2510001030 Speaker VS-57-0837A 1
MP1 8010019380 2698 chassis 1
MP2 8110008040 2698 cover 1
MP3 8930045600 2088 SP rubber 1
MP4 8930062130 Thermally sheet (AP) 1
MP6 8810008660 Screw PH BT M3 × 8 NI-ZU 12
MP7 8810009610 Screw FH M2.6 × 6 ZK 4
MP8 8810005160 Cap bolt M3 × 20 ZK 2
[CHASSIS PARTS]
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
F1 5210000080 Fuse FGB 20A 1
W1 8900010990 DC power cable OPC-1132 1
MC1 0880001490 Microphone HM-133V 1
MP1 8010019260 2633 mobile bracket 1
MP2 8820000530 Flange bolt M4 × 8 NI 4
MP3 8810000470 Screw PH M5 × 12 (+
-
)4
MP4 8810000950 Screw PH A M5 × 12 4
MP5 8850000150 Flat washer M5 NI BS 4
MP6 8850000390 Spring washer M5 4
MP7 8830000120 Nut M5 4
MP8 8930007300 Mic hanger [USA] only 1
MP9 8930062650 Insulation sheet (HS) 1
[ACCESSORIES]
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
J1 6510023110 Connector 3008L-8P8C 1
S1 2260000980 Switch SKHHLP014A 1
MC1 7700002310 Microphone EM-140 1
[MAIN/MAIN-A UNIT]
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
