Icom IC-2GA Service Manual

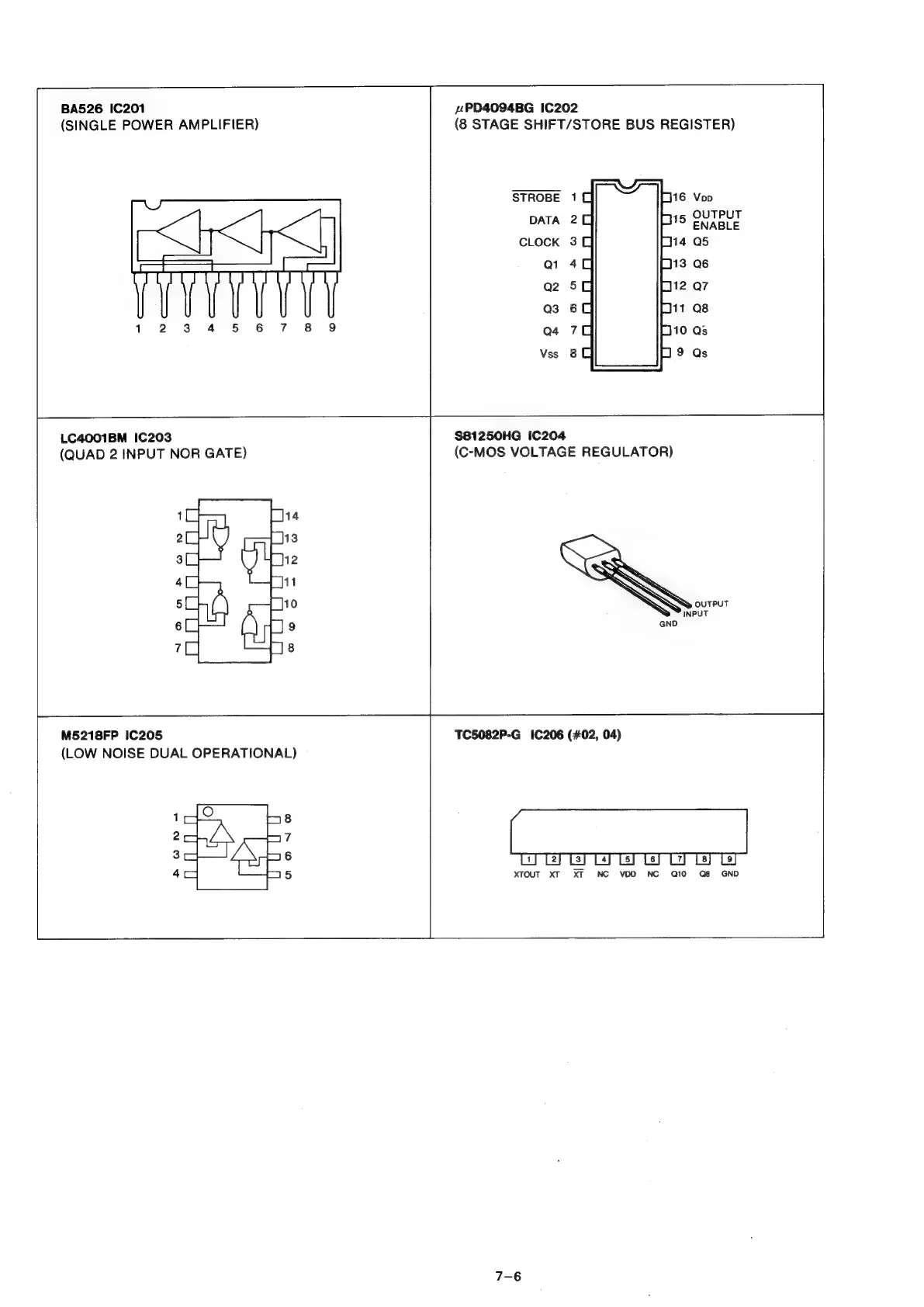

BA526 IC201
(SINGLE POWER AMPLIFIER)
LC4001BM 1C203
(QUAD 2 INPUT NOR GATE)
M5218FP IC205
(LOW NOISE DUAL OPERATIONAL)
#PD4094BG (С202
(8 STAGE SHIFT/STORE BUS REGISTER)
STROBE ! [116 Мор
DATA 2 hs ООР
CLOCK 3 []i4 Q5
Q1 4 2113 Q6
Q2 5 []12 Q7
Q3 6 (111 Q8
Q4 7 2110 Qs
Vss 8 [] 9 Qs
S81250HG ІС204
(C-MOS VOLTAGE REGULATOR)
OUTPUT
INPUT
TC5082P-G 1C206 (#02, 04)
OT [2] [3] [47 [5] Геј [7] [8] |9)
XT XT NC
XTOUT VDD NC 09010 08 GND
