Icom IC-2GA Service Manual

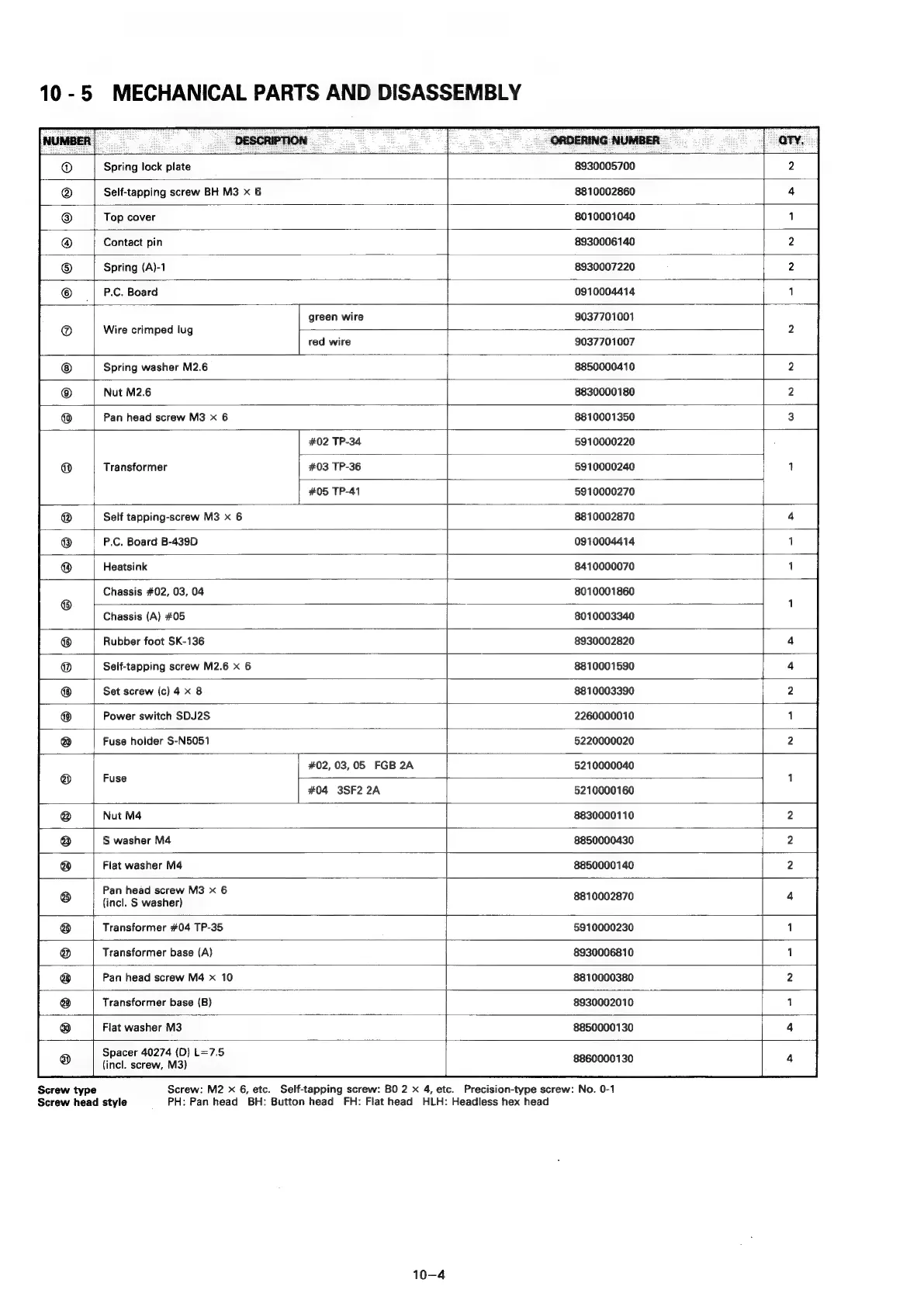

10-5 MECHANICAL PARTS AND DISASSEMBLY
@ Spring lock plate 8930005700
@ Self-tapping screw BH M3 x 6 8810002860
@ Top cover 8010001040
@ Contact pin 8930006140
@ Spring (A)-1 8930007220
@ P.C. Board 0910004414
| green wire 9037701001
Ф Wire crimped lug
| red wire 9037701007
Spring washer M2.6 8850000410
Nut M2.6 8830000180
(9 Pan head screw M3 x 6 8810001350
#02 TP-34 5910000220
@ Transformer | #03 ТР-36 5910000240
#05 ТР-41 5910000270
@ Self tapping-screw M3 x 6 8810002870
@ P.C. Board B-439D 0910004414
фа
4) Heatsink 8410000070
Chassis #02, 03, 04 8010001860
З Chassis (A) #05 8010003340
@ Rubber foot SK-136 8930002820
@ Self-tapping screw M2.6 x 6 8810001590
@ Set screw (c) 4 x 8 8810003390
@ Power switch SDJ2S 2260000010
5 Fuse holder S-N5051 5220000020
D ril
#02, 03, 05. FGB 2A 5210000040
@ Fuse
#04 3SF2 2A 5210000160
e Nut M4 8830000110
@ S washer M4 8850000430
& Flat washer M4 8850000140
асан 8810002870
@ Transformer #04 TP-35 5910000230
e Transformer base (A) 8930006810
e) Pan head screw M4 x 10 8810000380
e Transformer base (B) 8930002010
кој Flat washer M3 8850000130
vor aa 860000130
Screw type Screw: M2 x 6, etc. Self-tapping screw: BO 2 x 4, etc. Precision-type screw: No. 0-1
Screw head style PH: Pan head BH: Button head FH: Flat head НІН: Headless hex head
