Icom IC-3200E - 6-2 PLL UNIT

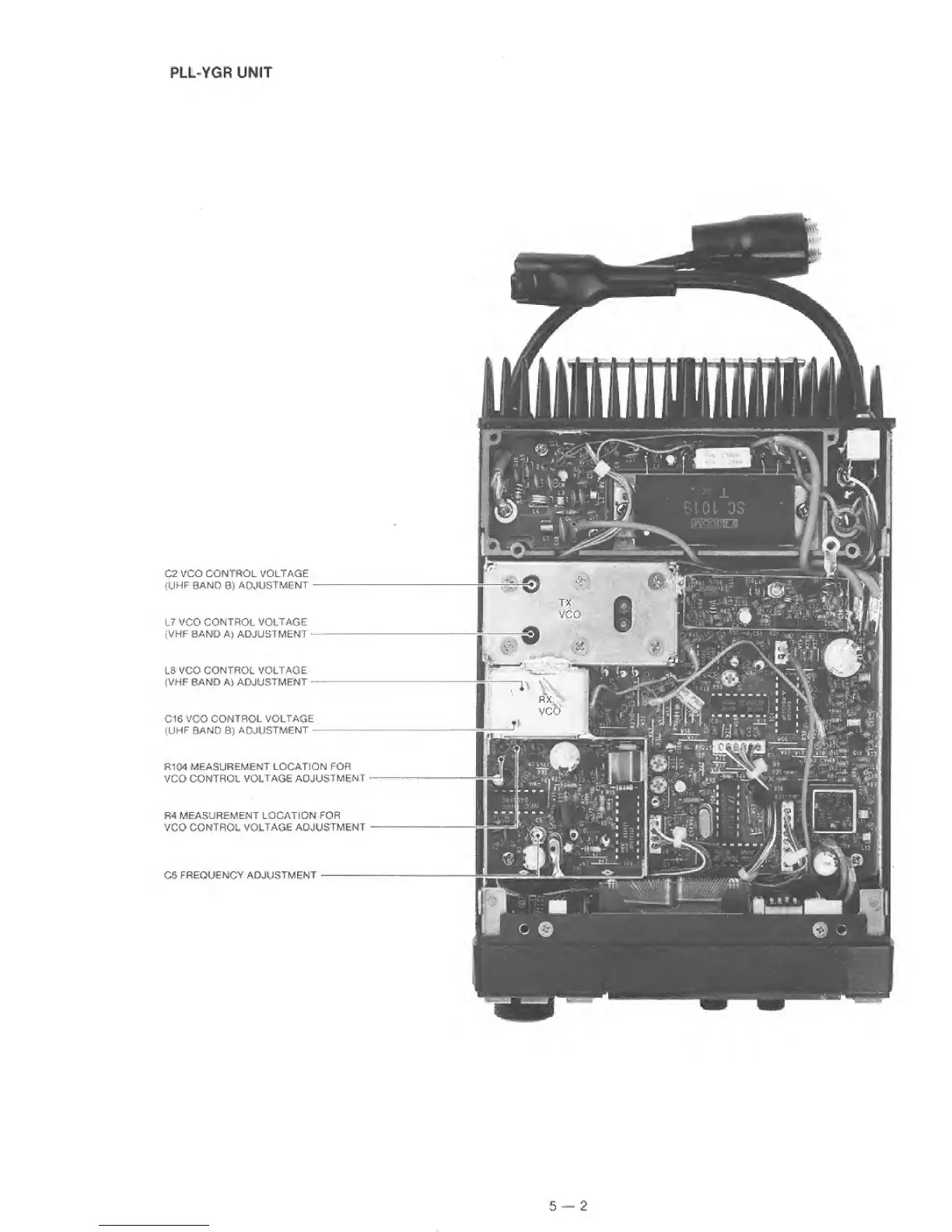

PLL-YGR UNIT
C2 VCO CONTROL VOLTAGE
(UHF BAND
0)
ADJUSTMENT
-
L7 VCO
CONTROL
VOLTAGE
(VHP SAND A) ADJUSTMENT
L& VCO CONTROL VOLTAGE
(VHP BAND A) ADJUSTMENT
C16
VCO
CONTROL
VOLTAGE
(UHF
BAND
B)
ADJUSTMENT
R
104
MEASUREMENT LOCATION FOR
VCO CONTROL
VOLTAGE
ADJUSTMENT
R4 MEASUREMENT LOCATION FOR
VCO
CONTROL VOLTAGE
ADJUSTMENT
C5
FREQUENCY ADJUSTMENT
5
—
2
