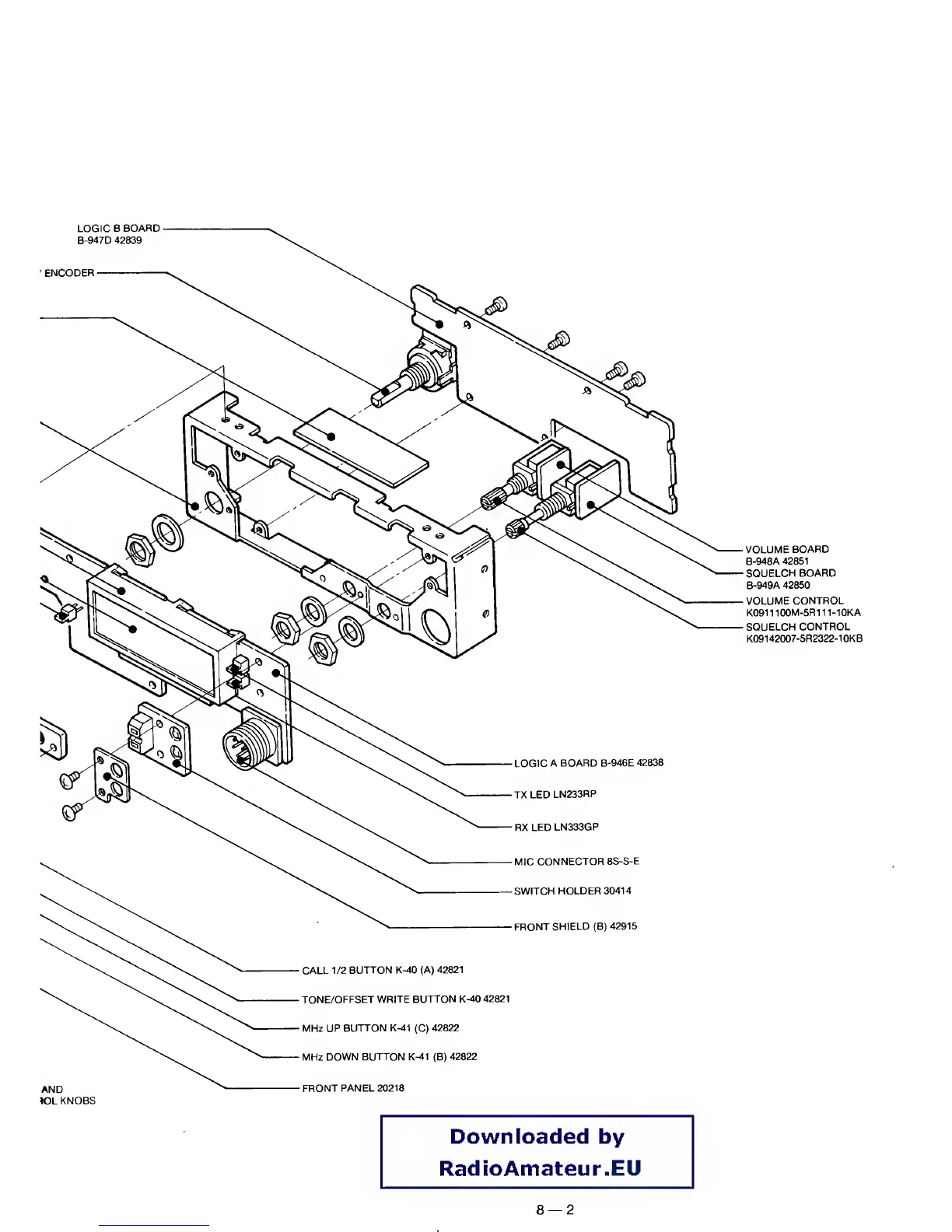

LOGIC
B
BOARD
B-947D 42839
ENCODER
LOGIC
A BOARD
B-946E
42838
TX LED
LN233RP
RX
LED
LN333GP
MIC
CONNECTOR
8S-S-E
SWITCH
HOLDER
30414
FRONT
SHIELD (B)
42915
CALL
1/2
BUTTON K-40 (A)
42821
TONE/OFFSET
WRITE BUTTON K-40
42821
MHz
UP
BUTTON K-41
(C)
42822
MHz
DOWN BUTTON K-41 (B)
42822
FRONT PANEL
20218
VOLUME
BOARD
B-948A
42851
SQUELCH
BOARD
B-949A 42850
VOLUME
CONTROL
K0911100M-5R111-10KA
SQUELCH
CONTROL
K09142007-5R2322-10KB
