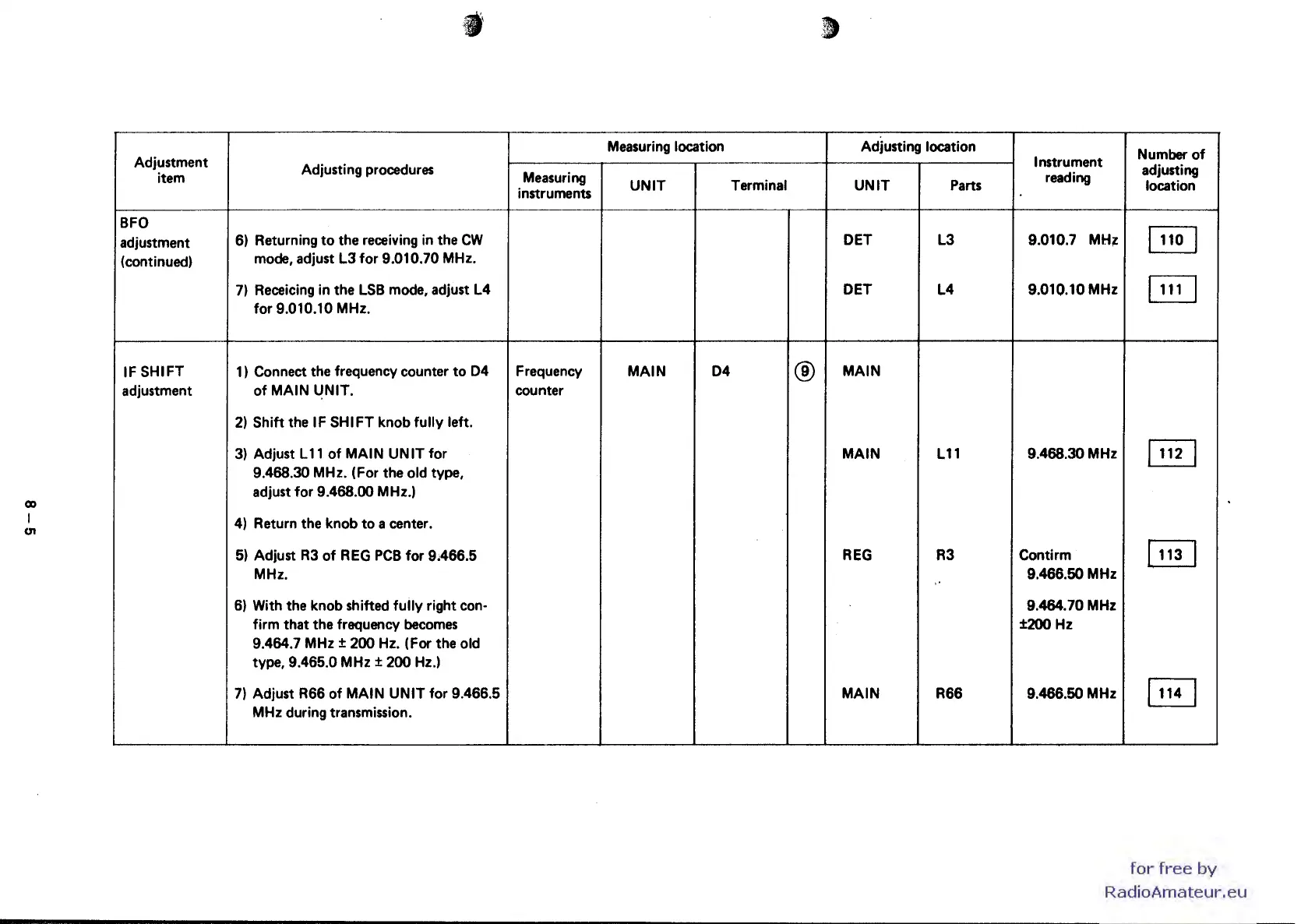

Icom IC-730 - Page 58

co
I
C11
Adjustment
item
BFO
adjustment
(continued)
IF SHIFT
adjustment
Adjusting procedures
6) Returning
to the receiving in the CW
mode, adjust L3 for 9.010.70 MHz.
7) Receicing in the LSB mode, adjust L4
for
9.010.10 MHz.
1) Connect the frequency counter to 04
of MAIN UNIT.
2) Shift the IF SHIFT knob fully left.
3) Adjust L11 of MAIN UNIT for
9.468.30 MHz. (For the
old type,
adjust
for 9.468.00 MHz.)
4) Return the knob
to a center.
5) Adjust R3 of REG PCB for 9.466.5
MHz.
6) With the knob shifted
fully right con-
firm that the frequency
becomes
9.464.7 MHz ± 200 Hz. (For the old
type, 9.465.0 MHz ± 200 Hz.)
7) Adjust R66 of MAIN UNIT for 9.466.5
MHz during transmission.
Measuring
location
Measuring
UNIT
instruments
Frequency
MAIN 04
counter
Adjusting
location
Number of
Instrument
adjusting
Terminal UNIT Parts
reading
location
OET L3 9.010.7
MHz
~
OET
L4
9.010.10 MHz
~
®
MAIN
MAIN
L11
9.468.30 MHz
DE]
REG
R3 Contirm
GEJ
9.466.50 MHz
"
9.464.70 MHz
±200 Hz
MAIN R66 9.466.50 MHz
B
