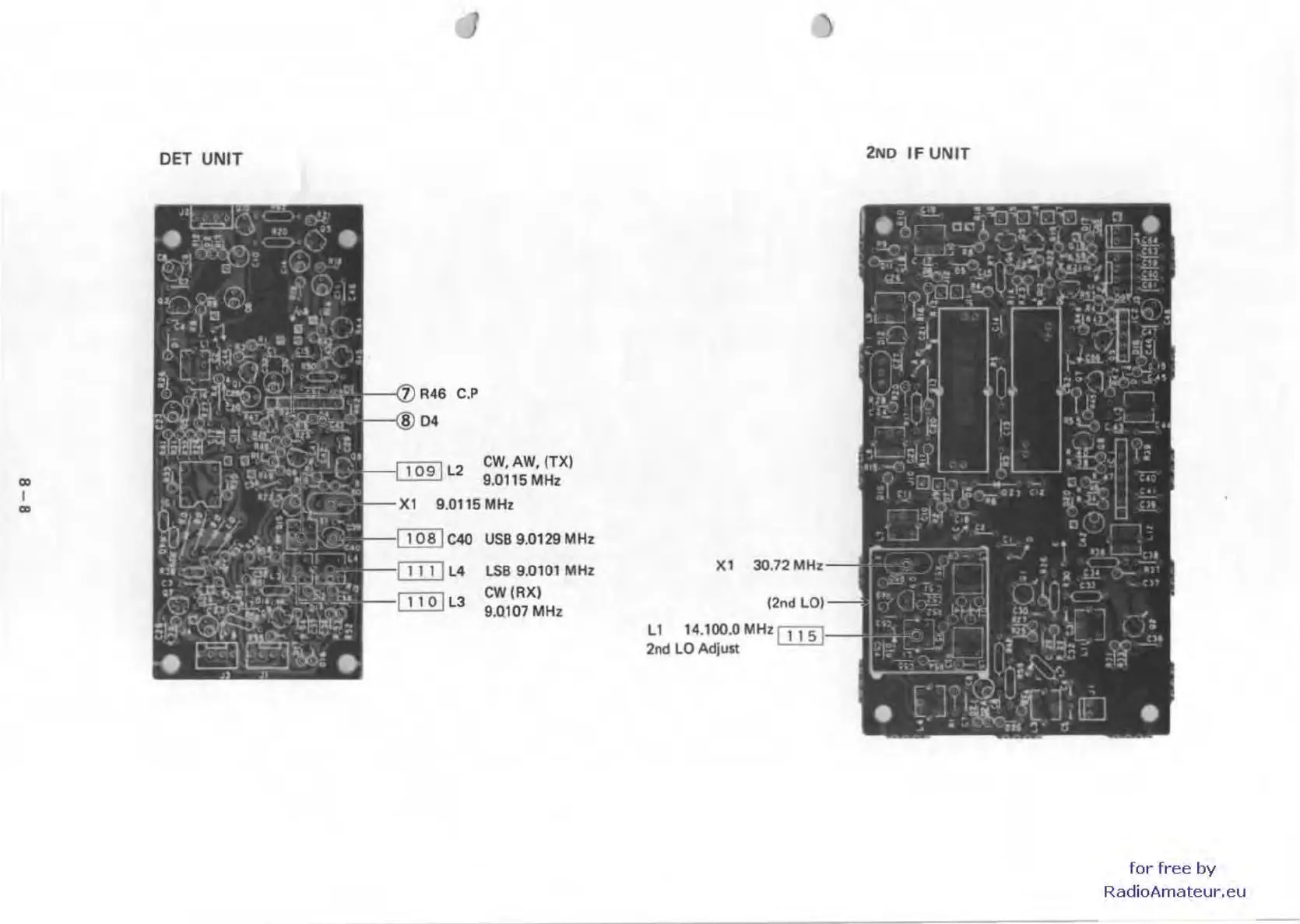

DET UNIT
I---<Z> R46 C.P
I----® 04
L2 CWo AW. (TXI
9.0115 MHz
9.0115 MHz
r- ~ C40 US89.0129MHz
L- ~ L4 LSB 9.0101 MHz
CW (RXI
9.Q107 MHz
2ND IF UNIT
Xl 30 . 72 MHz-
(2nd LO)
11 14 .100.0 MHz [JJ]J --
2nd LO Adjust
