Icom IC-730 - Page 70

..
I

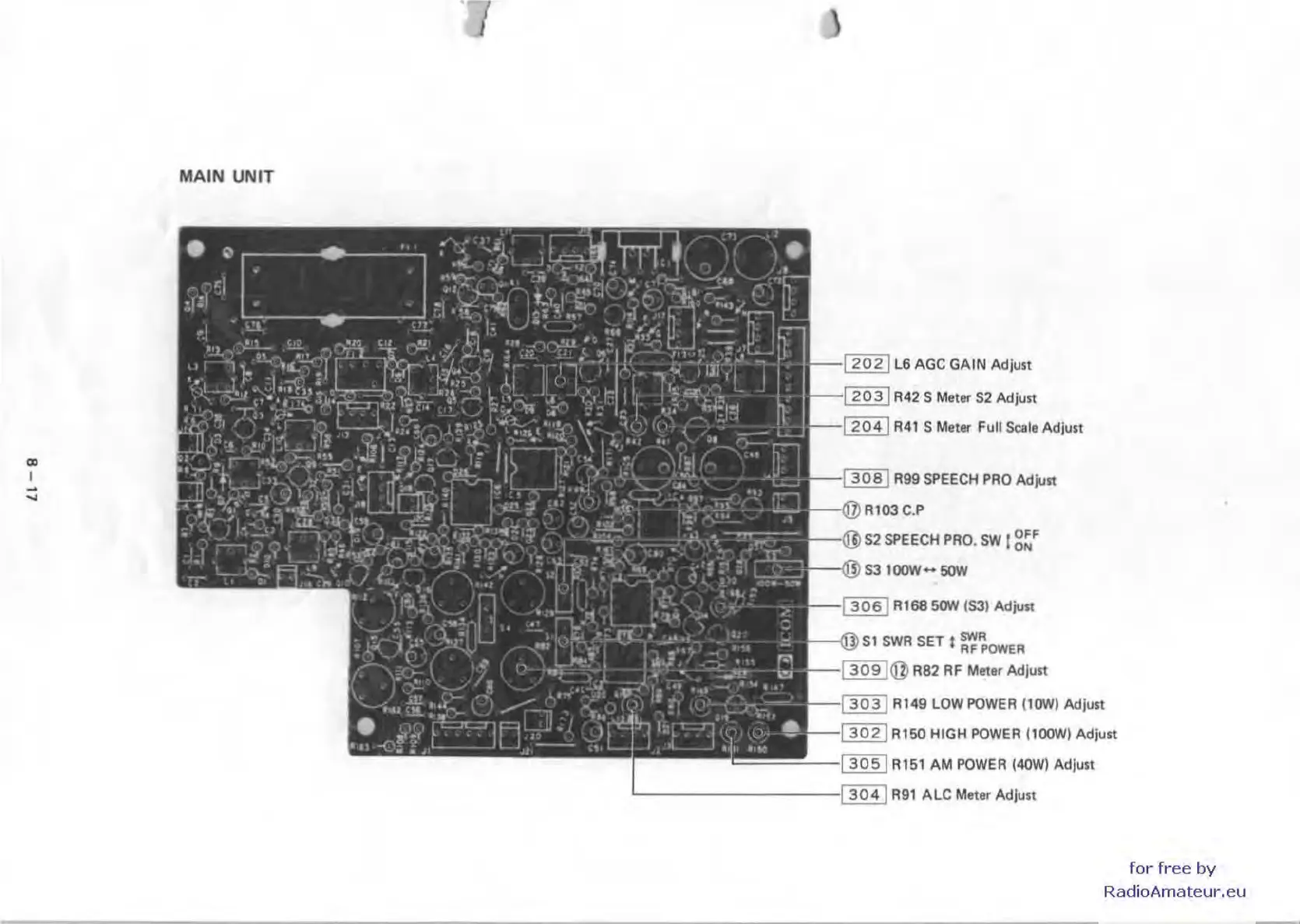

MAIN UNIT
I
I- ~~~ L6 AGe GAIN Adjust
. ~~ R42 S Meter S2 Adjust
'-='= R4l S Meter Full Scale Adjust
Rgg SPEECH PRO Adjust
--6l )S2SPEECH PRO . SW I g~F
-""\IV 53 lOOW- 5f1N
Rl68 SOW (S3) Adjust
RB2 AF Meter Adjust
R149 LOW POWER 11O'N1 Adjust
R150 HIGH POWER (lCXJW) Adjust
R151 AM POWER (40W) Adjust
R91 ALe Meter Adjust
