Icom IC-7300 - Page 36

D. Michaels N1RF Jan 10, 2017
Transmitter Monitoring
7

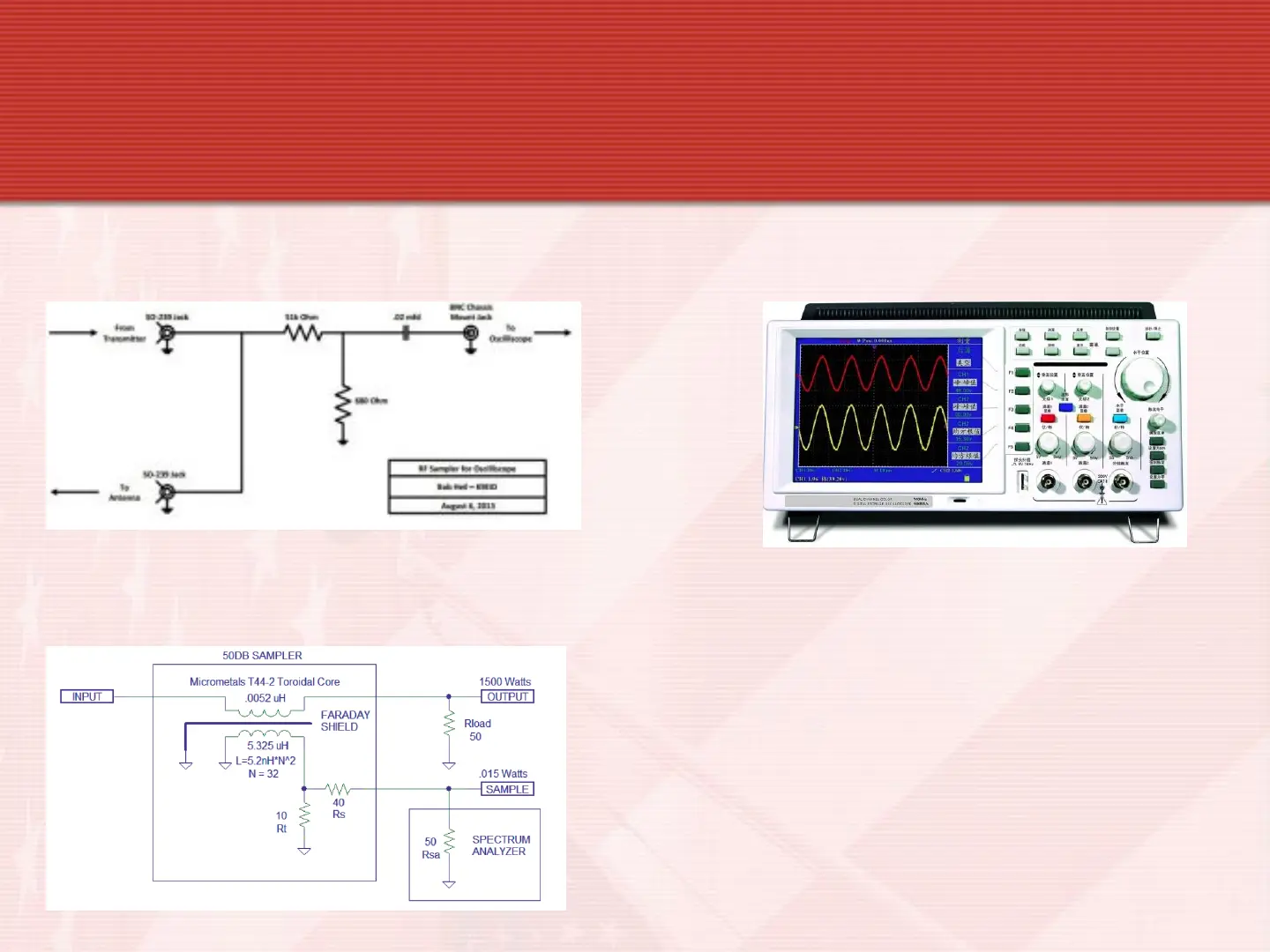

Current Transformer
RF Sampler
Resistor Divider RF
Sampler
Typical sampling power
values are:
1:100 = -20 dB
1: 1000 = -30 dB
1:10,000 = -40 dB
1:100,000 = -50 dB
Transmitter Monitoring Devices
Is Your Power Meter Accurate ?
