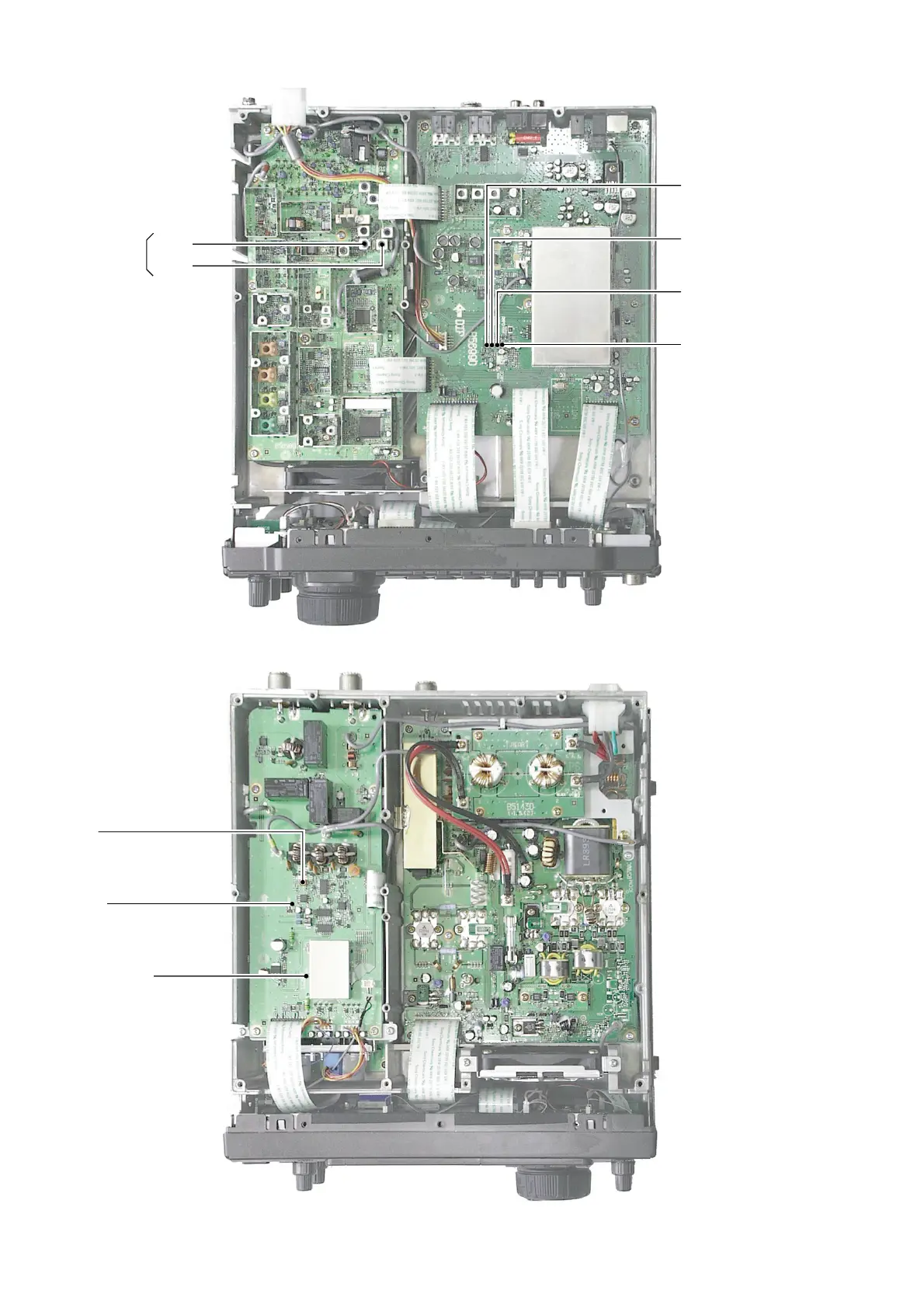

5 - 7
CP1 (SETI)
SWR detector
pre-setting
C3
SWR detector
adjustment
CP1
SWR detector
check point
R311
50 MHz band output power
adjustment
Residual AM
adjustment
L251
L252
R320
AM carrier power
adjustment
R306
HF bands output power
adjustment
R317
144 MHz band output power
adjustment
