SWR Graph
• The IC-746PRO has a built-in circuit for
measuring antenna SWR— no external
equipment or special adjustments are
necessary.
– The IC-746PRO can measure SWR in 2
ways— spot measurement and plot
measurement are available.
• Spot Measurement gives the operator the
SWR for the given operating frequency.

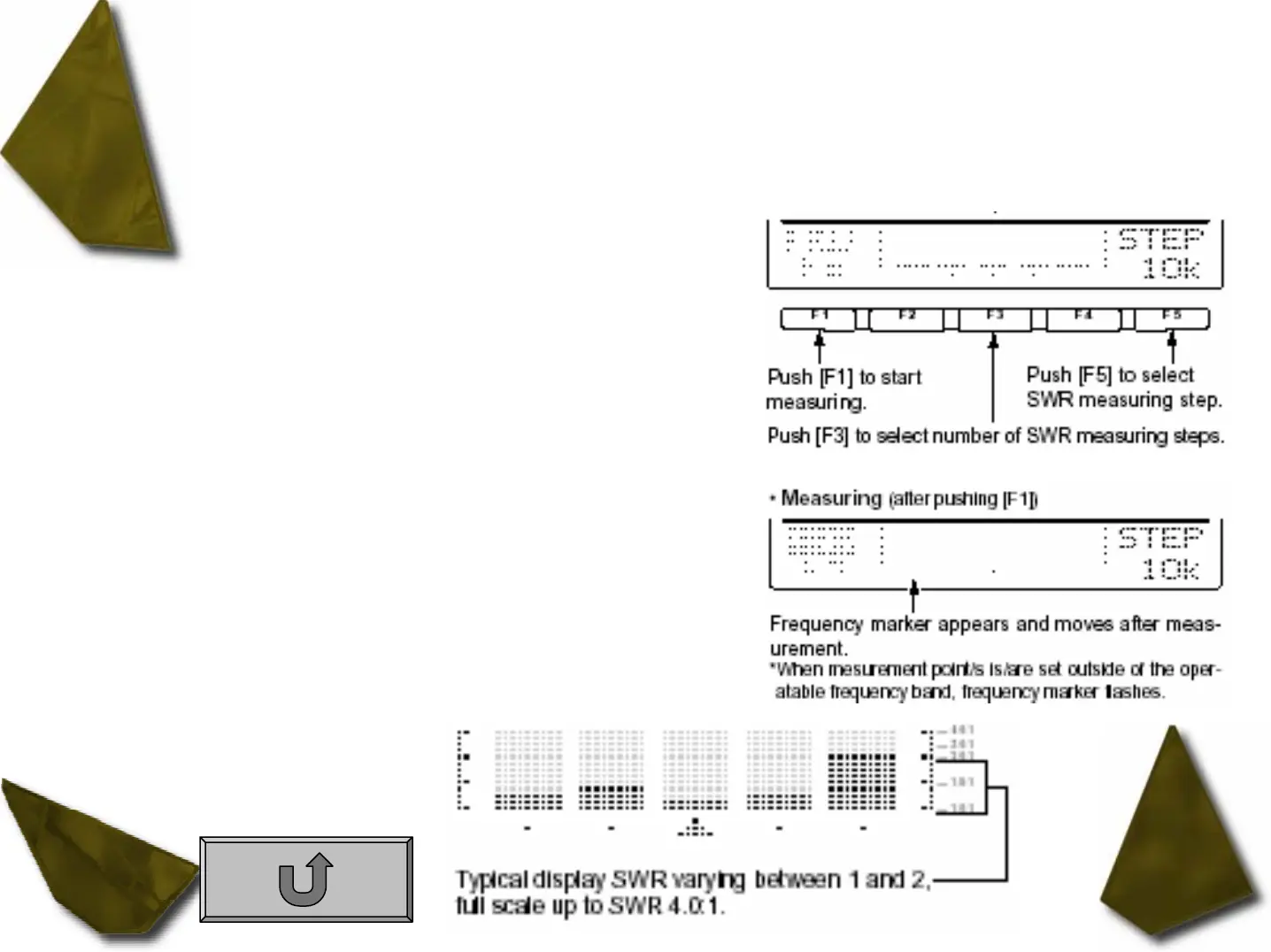

• Plot measurement allows you to measure the
SWR over an entire band.
