Icom IC-7600 - Page 84

6 - 6

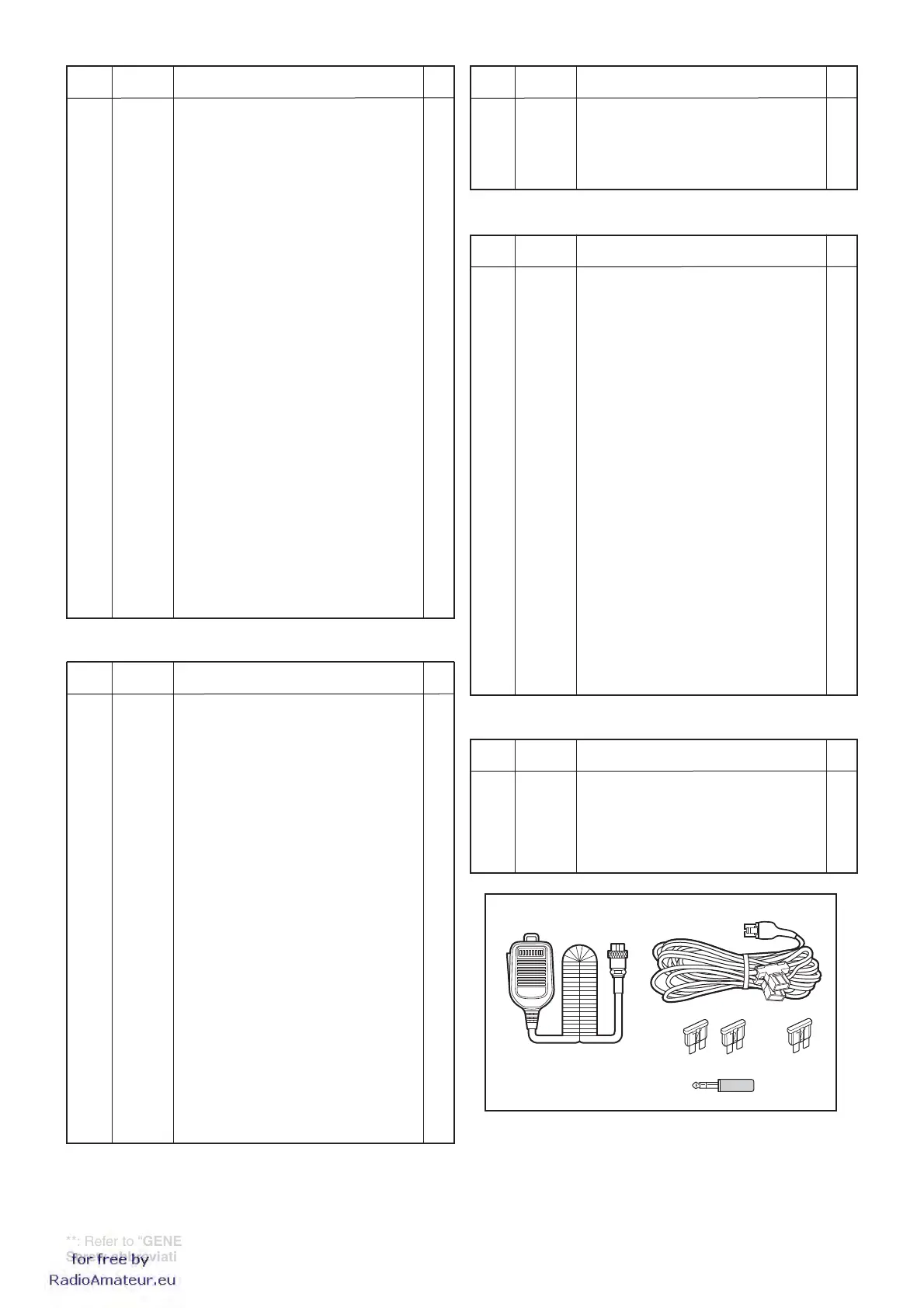

[ACCESSORIES] (ACC)
REF ORDER
DESCRIPTION QTY.
NO. NO.
P1 5610000410 AP-319 1
MC1 (Optional) HM-36-1 1
F1 5210000840 ATC 30 2
F2 5210000940 1205 1
W1 8900013980 OPC-1457 1
[RF UNIT] (RF)
[PLL UNIT] (PLL)
[DCDC UNIT] (DC)
REF ORDER
DESCRIPTION QTY.
NO. NO.
REF ORDER
DESCRIPTION QTY.
NO. NO.
REF ORDER
DESCRIPTION QTY.
NO. NO.
RL101 6330001860 UA2-12NU 1
RL102 6330001860 UA2-12NU 1
RL103 6330001860 UA2-12NU 1
RL104 6330001860 UA2-12NU 1
RL105 6330001860 UA2-12NU 1
RL161 6330000540 OMR-109F 1
J101 6510007020 TMP-J01X-V6 1
J102 6450001130 JPJ2042-01-110 1
J103 6450001800 JPJ1044-01-010 1
J161 6450001130 JPJ2042-01-110 1
J201 6510007020 TMP-J01X-V6 1
J451* 6510022581 24FMN-BMTTR-A-TBT (LF) (SN) 1
J801 6910016430 IMSA-9210B-1-05Z869-PT1 1
J802 6910016430 IMSA-9210B-1-05Z869-PT1 1
J803 6910016430 IMSA-9210B-1-05Z869-PT1 1
J804 6910016430 IMSA-9210B-1-05Z869-PT1 1
J805 6910016430 IMSA-9210B-1-05Z869-PT1 1
J807 6910016430 IMSA-9210B-1-05Z869-PT1 1
J809 6910016430 IMSA-9210B-1-05Z869-PT1 1
J951 6510007020 TMP-J01X-V6 1
J1101 6510007020 TMP-J01X-V6 1
J1301 6510007020 TMP-J01X-V6 1
J1651 6510007020 TMP-J01X-V6 1
J1701 6510007020 TMP-J01X-V6 1
J1702 6910004741 IMSA-9202B-1-03Z041-PT1 1
J1703 6910004741 IMSA-9202B-1-03Z041-PT1 1
J1704 6910004741 IMSA-9202B-1-03Z041-PT1 1
J1705 6910004741 IMSA-9202B-1-03Z041-PT1 1
J1706 6910004741 IMSA-9202B-1-03Z041-PT1 1
J1707 6910004741 IMSA-9202B-1-03Z041-PT1 1
J1708 6910004741 IMSA-9202B-1-03Z041-PT1 1
J1709 6910004741 IMSA-9202B-1-03Z041-PT1 1
J2001 6510007020 TMP-J01X-V6 1
MP1 8930065741 2590 D-EARTH SPRING-1 1
MP2 8930065741 2590 D-EARTH SPRING-1 1
MP3 8930065741 2590 D-EARTH SPRING-1 1
MP1001* 8510016730 2178 1MIX CASE 1
MP1002 8510016721 2178 1MIX COVER-1 1
MP1201* 8510016730 2178 1MIX CASE 1
MP1202 8510016721 2178 1MIX COVER-1 1
MP1203 8930055981 SHIELD SPONGE (F)-1 1
MP1451* 8510012400 2177 D/A CASE 1
J1* 6510022581 24FMN-BMTTR-A-TBT (LF) (SN) 1
J51 6510007020 TMP-J01X-V6 1
J81 6510007020 TMP-J01X-V6 1
J351 6510007020 TMP-J01X-V6 1
J651 6510007020 TMP-J01X-V6 1
J701 6510007020 TMP-J01X-V6 1
J831 6510007020 TMP-J01X-V6 1
J851 6510007020 TMP-J01X-V6 1
MP1 8930065741 2590 D-EARTH SPRING-1 1
MP51 8510015900 2590 M-2LO CASE 1
MP101* 8510018770 3009 PLL CASE 1
MP102 8510002280 VCOSHIELD PLATE (A) (FX-15) 1
MP103 8930078840 SHIELD SPONGE (CM) 1
MP201* 8510012541 2178 VCO CASE-1 1
MP202 8510011521 2072 VCO COVER-1 1
MP203 8510011710 2072 VCO SHIELD 1
MP204 8810003961 SETSCREW (A) 2.6X5 ZC3 8
MP205 8930077460 RUBBER SHEET (CF) 1
MP206 8930078840 SHIELD SPONGE (CM) 1
MP207 8930078840 SHIELD SPONGE (CM) 1
MP208 8930078840 SHIELD SPONGE (CM) 1
MP209 8930078840 SHIELD SPONGE (CM) 1
MP301* 8510019110 3073 PLL CASE 1
MP381* 8510012550 2178 DDS CASE 1
MP382 8510012580 2178 DDS COVER 1
MP401 8510010760 1876 DDS CASE 1
MP402 8510010770 1876 DDS COVER 1
MP403* 8510010850 1897 D/A CASE 1
MP451* 8510012550 2178 DDS CASE 1
MP452 8510012580 2178 DDS COVER 1
MP501 8510012541 2178 VCO CASE-1 1
MP502 8510011521 2072 VCO COVER-1 1
MP503 8510011710 2072 VCO SHIELD 1
MP601* 8510019110 3073 PLL CASE 1
MP701* 8510018770 3009 PLL CASE 1
MP702 8930078840 SHIELD SPONGE (CM) 1
MP821* 8510012400 2177 D/A CASE 1
J1 6910020210 IMSA-9180S-12A 1
F1 5210001050 ICP-S0.5 1
MP1* 8510019150 3073 DC-DC SHIELD 1
MP2* 8510019140 3073 DC-DC CASE 1
MP3 8510019300 3073 DC-DC PLATE 1
[TUNER UNIT] (TUN)
REF ORDER
DESCRIPTION QTY.
NO. NO.
RL1 6330001610 NY-12W-K-IE 1
RL2 6330001610 NY-12W-K-IE 1
RL3 6330001610 NY-12W-K-IE 1
RL4 6330001610 NY-12W-K-IE 1
RL5 6330001610 NY-12W-K-IE 1
RL6 6330001610 NY-12W-K-IE 1
RL7 6330001610 NY-12W-K-IE 1
RL8 6330001610 NY-12W-K-IE 1
RL9 6330001610 NY-12W-K-IE 1
RL10 6330001610 NY-12W-K-IE 1
RL11 6330001610 NY-12W-K-IE 1
RL12 6330001610 NY-12W-K-IE 1
RL13 6330001610 NY-12W-K-IE 1
RL14 6330001610 NY-12W-K-IE 1
RL15 6330001610 NY-12W-K-IE 1
RL16 6330001610 NY-12W-K-IE 1
J3 6510007020 TMP-J01X-V6 1
J4 6510007020 TMP-J01X-V6 1
J5* 6510022591 22FMN-BMTTR-A-TBT (LF) (SN) 1
MF1 2710000800 MP24ZA 1
MF2 2710000800 MP24ZA 1
W1 8900018420 OPC-1889 1
MP1 8930041091 1876 A-ANGLE-1 1
MP2 8810008661 SCREW BT B0 3X8 NI-ZC3 (BT) 1
MP3 8810009061 SCREW M3X6 ZK3 4
MP4 8930041111 1876 B-ANGLE-1 1
MP5 8810009061 SCREW M3X6 ZK3 2
MP6 8820000881 1528 SCREW-1 4
MP7 8930030112 1414 PLATE-2 2
MP8 8950003200 UJ6-5 (UNIVERSAL COUPLINGS) 2
MP9* 8930051580 2178 TUNER PLATE 1
MP10 8930079540 3073 TUNER PLATE 1
MC1
F2
P1
W1
F1
*: Refer to “BOARD LAYOUTS” for the location.
**: Refer to “GENERAL WIRING” for the connection.
Screw abbreviations A, B0, BT: Self-tapping PH: Pan head ZK: Black NI-ZU: Nickel-Zinc SUS: Stainless
