Icom IC-7600 - Page 85

6 - 7
C44(TUN)
C45(TUN)
TUNER UNIT
CTRL UNIT
FILTER UNIT
PA UNIT
MP15(CH)×2
MP61(CH)×2
MP16×2(CH)
MP68×2(CH)
MP70×2(CH)
MP91×3(CH)
MP91×3(CH)
MP28×2(CH)
MP70×2(CH)
MP23×11(CH)
MP23×11(CH)
MP46×3(CH)
J6(CH)
J5(CH)
MP38×4(CH)
MP44×3(CH)
MP6×4(TUN)
MP4(TUN)
MP8×2(TUN)
MP7×2(TUN)
MF1(TUN)
MF2(TUN)
MP45(CH)
MP41(CH)
MP1(TUN)
MP5×2(TUN)
MP10(TUN)
MP42(CH)
MP44×3(CH)
MP33×5(CH)
MP34×4(CH)
MP32×7(CH)
MP32×7(CH)
MP112(CH)
W11(CH)
MP95(CH)
MP31×4(CH)
MP48×2C)
MP27×2(CH)
MP31×4(CH)
MP47×4(CH)
MP66(CH)
MP106×2(CH)
MP63×2(CH)
MP24×3(CH)
MP6(CH)
MP24×3(CH)
MP34×4(CH)
MP33×5(CH)
MP2(TUN)
MP3×4(TUN)
MP43(CH)
MP1(CH)
MP94(CH)
MP92(CH)
MP13(CH)
MF1(CH)
MP18(CH)
MP58(CH)
MP5(CH)
SP1(CH)
MP72×2(CH)
MP65(CH)
MP71(CH)
MP116(CH)
MP72×2(CH)
MP11(CH)
MP26(CH)
MP26(CH)
MP8(CH)
MP11(CH)
MP8(CH)
MP9(CH)
MP12(CH)
MP12x6(CH)
MP159x2(CH)
MP154(CH)
FRONT UNIT
CHASSIS ASSEMBLY
MP2(CH)
MP20(CH)x2
MP54(CH)x2
MP53(CH)
MP9(CH)
MP12(CH)
MP110(CH)
MP49x2(CH)
MP49x2(CH)
MP110(CH)
MP160(CH)
MP153(CH)
MP3(CH)
MP155(CH)
MP156(CH)
MP160(CH)
MP110(CH)
MP110(CH)
MP20x6(CH)
MP109(CH)
MP20x2(CH)
UNIT ABBREVIATION
(CH)= CHASSIS UNIT
(PA)= PA UNIT
(CTR)= CTRL UNIT
(TUN)= TUNER UNIT

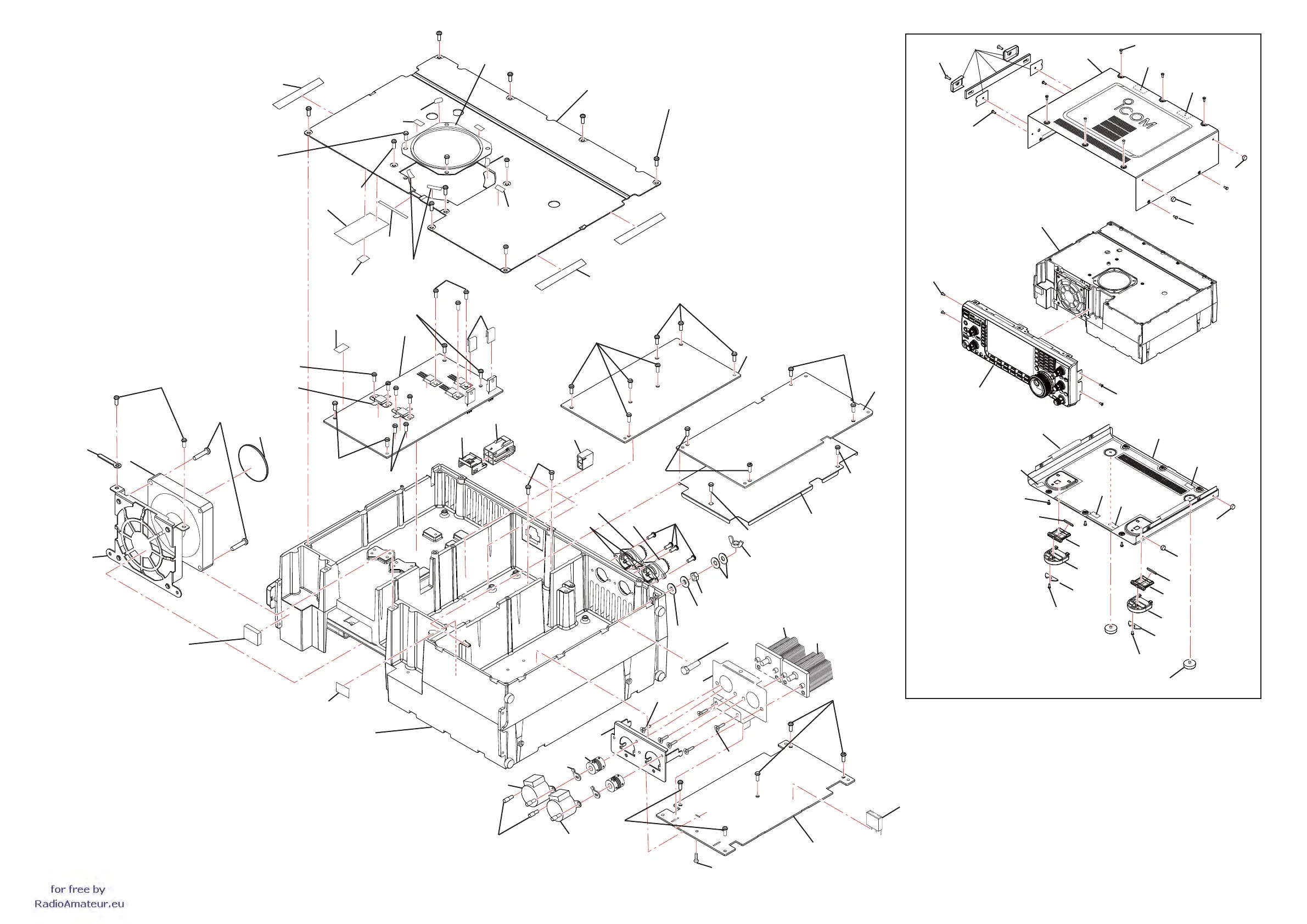

• CHASSIS (TOP SIDE)
