4-2g
(Replacement page)
July 2019
■ PROCEDURE OF ADJUSTMENT
1) Connect the transceiver and PC with the OPC-1529R.
2) Turn ON the transceiver.
3) Boot up Windows, and click the program group ‘CS-A210/A220 ADJ’ in the ‘Programs’ folder of the [Start] menu, then the
CS-A210/A220 ADJ’s window appears.
4) Click the [ADJ] icon to enter the adjustment mode.
5) Click the [READ] icon to load the initial data from the transceiver.
6) Set or modify the adjustment data as specified in the guidances (pages 4-3 to 4-10).
7) When the adjustment is finished, click the [WRITE] icon.
8) Click the [NRM] icon to quit the adjustment mode, and return to the normal mode.

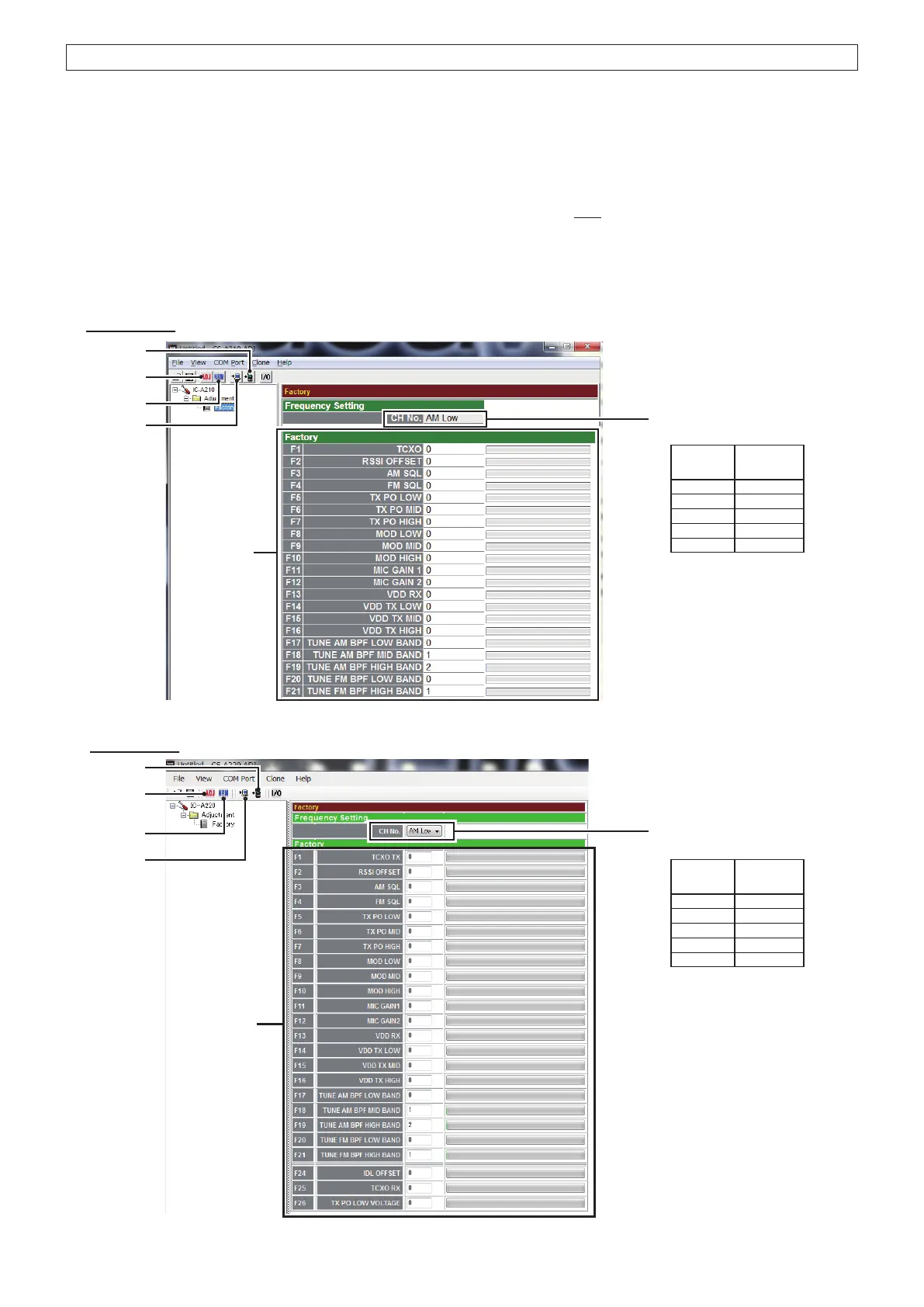

• ADJUSMENT SOFTWARE SCREEN
[ADJ]
[NRM]
[LOAD]
Adjustment
items
[WRITE]
Select the adjustment channel
for each adjustment item.
<CS-A210 ADJ>
*This screen is an example.
[ADJ]
[NRM]
[LOAD]
Adjustment
items
[WRITE]
<CS-A220 ADJ>
Select the adjustment channel
for each adjustment item.
*This screen is an example.
CH No.
Frequency
(MHz)
AM Low 118.000
AM Mid 127.500
AM High 136.975
FM Low 161.650
FM High 163.275
CH No.
Frequency
(MHz)
AM Low 118.000
AM Mid 127.500
AM High 136.975
FM Low 161.650
FM High 163.275
The underlined parts have been updated from the previous version of the addendum, or the original page.
